| Product Name: | KBL SUPER LONG STROKE 3 JAW POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

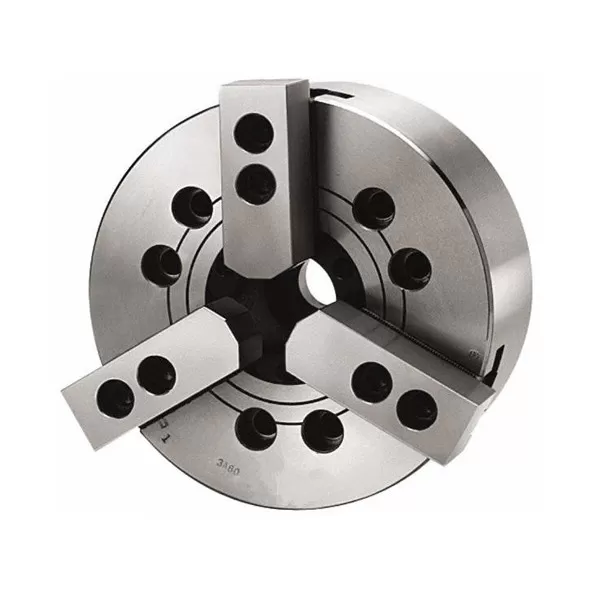

KBL SUPER LONG STROKE 3 JAW POWER CHUCK
Brand:NTH
It‵s crank type chuck
The clamping force is very stong,it‵s applicable for heavy maching process
Size unit: mm
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| KBL-206 | 20 | 32 | 165 | 10 | 22.6 |
| KBL-208 | 25 | 40 | 210 | 28 | 31.4 |
| KBL-210 | 28 | 42 | 254 | 42 | 37.3 |
| KBL-212 | 35 | 50 | 304 | 54 | 49 |
| Spec Model | Max clamping force kgf | Max RPM | Max.pressure Mpa(kgf/cm2) | Weight kg | Matched cylinders |
|---|---|---|---|---|---|
| KBL-206 | 19.6 | 3600 | 2.5 | 11.5 | S-100 |
| KBL-208 | 27.5 | 3000 | 2.5 | 23.6 | S-125 |
| KBL-210 | 34.3 | 2400 | 2.8 | 34.5 | S-125 |
| KBL-212 | 48 | 2100 | 2.8 | 60.8 | S-150 |

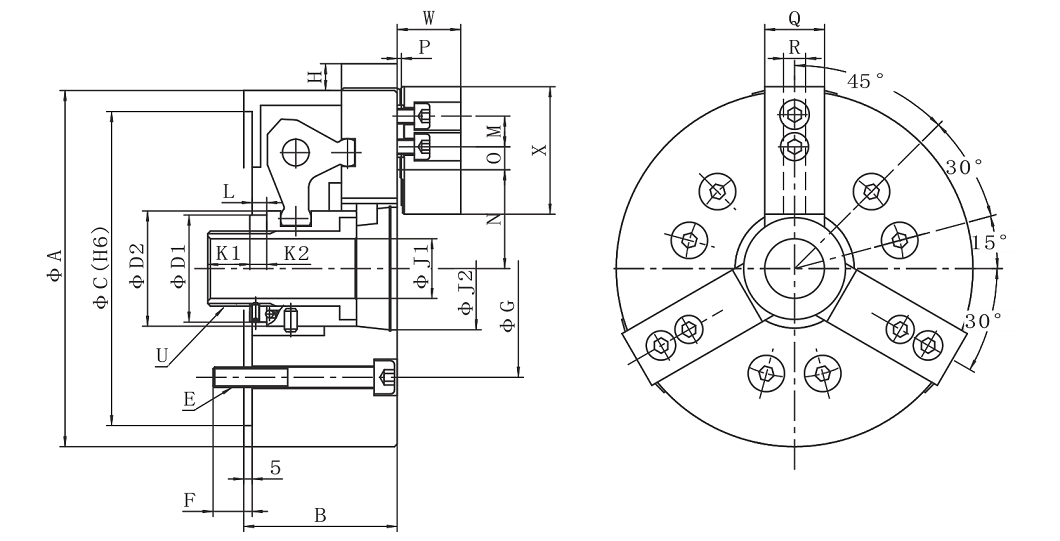

| Spec Model | A | B | C(H7) | D1 | D2 | E | F | G | H max | J1 | J2(H9) | K1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KBL-206 | 165 | 80 | 140 | 45 | 54 | 6-M10 | 16 | 104.8 | 10 | 21 | 60 | 20 |
| KBL-208 | 215 | 93 | 170 | 65 | 74 | 6-M12 | 20 | 133.4 | 11.5 | 36 | 80 | 25 |
| KBL-210 | 254 | 111 | 220 | 82 | 96 | 6-M12 | 17 | 171.4 | 13 | 55 | 105 | 25 |
| KBL-212 | 304 | 130 | 220 | 92 | 102 | 6-M16 | 22 | 171.4 | 15 | 62 | 110 | 30 |
| Spec Model | K2 | L | M | N | O | P | Q | R | T | U | W | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KBL-206 | 10 | -2--18 | 20 | 23.8--39.8 | 9--30 | 3 | 31 | 12 | 43 | M30*2 | 37 | 73 |
| KBL-208 | 10 | -4--21 | 25 | 33.8--53.8 | 10--35 | 5 | 35 | 14 | 55 | M45*2 | 40 | 95 |
| KBL-210 | 12 | -2--26 | 30 | 46.3--67.3 | 13.5--37.5 | 5 | 40 | 16 | 62 | M65*2 | 45 | 110 |
| KBL-212 | 14 | -3.5--31.5 | 30 | 48.3--73.3 | 14--52 | 5 | 50 | 21 | 77 | M72*2 | 53 | 130 |
Subject to technology changes without prior information
Non-standard requirements can be made
