| Product Name: | RA-B DOUBLE ROD PISTON ROTATING AIR CYLINDER | Material: | |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, rotary air cylinder |
||

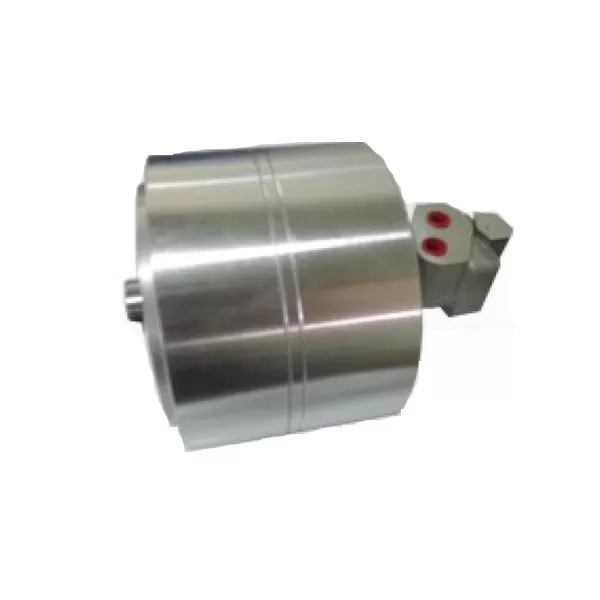

RA-B DOUBLE ROD PISTON ROTATING AIR CYLINDER
Brand:NTH
Light weighe and high rotating speed,special designed valve which economize air consumption the cosl is saved.
The compononts of cylinder is imported and high quality,equilibrium running and long service life.
For special large through hole be customized according to your requirements.
During using,a little oil mist should be contalned.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM | Max.Operating Pressure Mpa(kgf/cm2) | For Chuck | Weight kg |
|---|---|---|---|---|---|---|---|
| RA-130B | 251.2 | 247.9 | 12 | 4000 | 0.8(8) | 5"6" | 8 |
| RA-160B | 380.8 | 369.7 | 25 | 4000 | 0.8(8) | 6"8" | 12 |
| RA-200B | 606.8 | 595.8 | 30 | 3500 | 0.8(8) | 10" | 17 |
| RA-250B | 960 | 949 | 35 | 3000 | 0.8(8) | 12" | 16 |

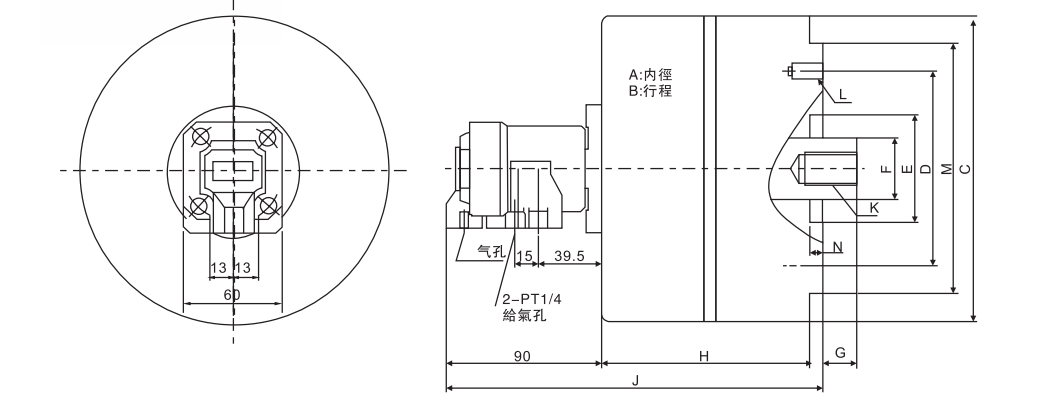

Spec Model | A | B | C | D | E H7 | F | G Max | G Min | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-130B | 130 | 12 | 160 | 90 | 65 | 25 | 27 | 15 | 113 | 221 | M16×25 | 6-M10×20 | 100 | 4 |
| RA-160B | 160 | 25 | 195 | 125 | 100 | 40 | 40 | 15 | 135 | 243 | M20×35 | 6-M10×20 | 160 | 5 |
| RA-200B | 200 | 30 | 232 | 160 | 125 | 40 | 44 | 14 | 147 | 255 | M20×35 | 6-M12×20 | 192 | 6 |
| RA-250B | 250 | 35 | 285 | 200 | 160 | 40 | 42 | 7 | 158 | 266 | M20×35 | 12-M12×20 | 235 | 10 |
Subject to technology changes without prior information
Non-standard requirements can be made
