| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | RA-100,RA-130,RA-170,RA-220,RA-270, |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | RA SINGLE ROD PISTON ROTATING AIR CYLINGER | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, precision hydraulic cylinders |
||

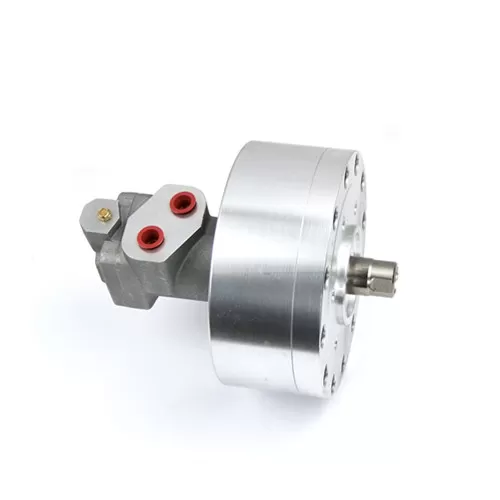

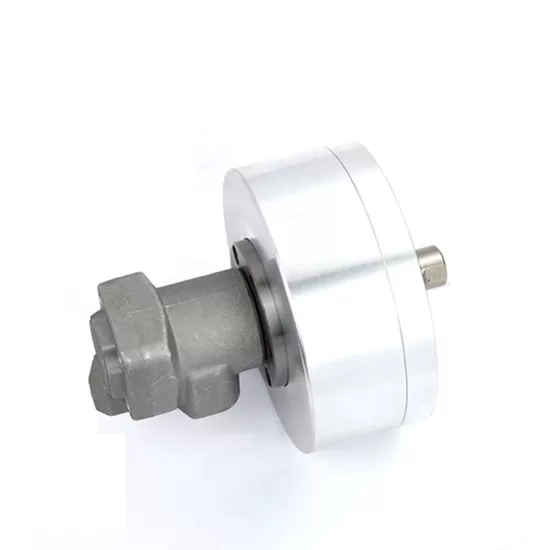

RA SINGLE ROD PISTON ROTATING AIR CYLINGER
Brand:NTH
The rotary valve and cylinder body,all made of special light alloy, are light-weight.
Through unique design,the rotary valve can considerably reduce the waste in compressing air and efficiently increase its utilization.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| RA-100 | 77 | 74.4 | 15 | 6000 |
| RA-130 | 131.2 | 124.7 | 15 | 5000 |
| RA-170 | 225.4 | 219 | 20 | 5000 |
| RA-220 | 378.6 | 369.3 | 25 | 4000 |
| RA-270 | 571 | 562.9 | 30 | 3000 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg | (P 6kgf/cm2) Air consumption (ml/sec) | For Chuck |
|---|---|---|---|---|---|
| RA-100 | 0.8(8) | 0.03 | 4.5 | 400 | 3" |
| RA-130 | 0.8(8) | 0.05 | 5.2 | 400 | 4"5" |
| RA-170 | 0.8(8) | 0.18 | 8.5 | 400 | 6" |
| RA-220 | 0.8(8) | 0.36 | 14.5 | 400 | 8"10" |
| RA-270 | 0.8(8) | 0.75 | 18.4 | 400 | 12" |

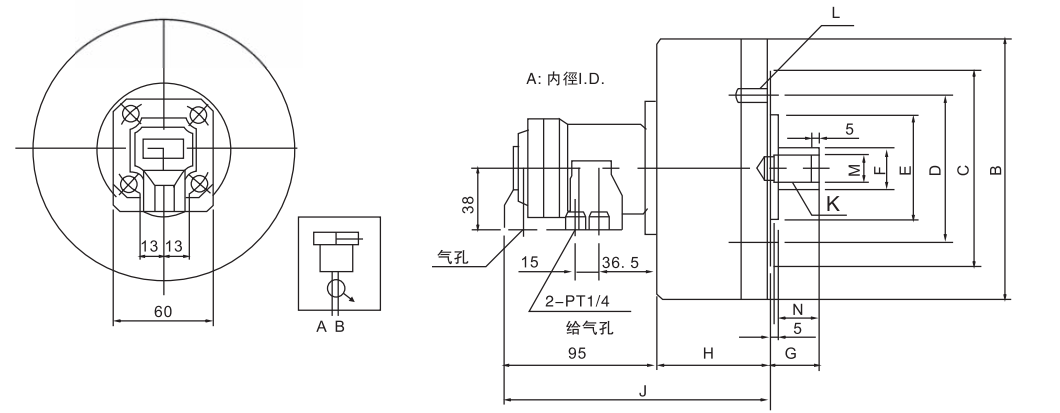

| Spec Model | A | B | C | D | E H7 | F | G Max | G Min | H | J | K | L | M (H8) | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-100 | 100 | 130 | - | 80 | 60 | 22 | 50 | 35 | 65 | 160 | M12×1.75 | 6-M8×16 | 13 | 25 |
| RA-130 | 130 | 160 | 120 | 90 | 65 | 25 | 45 | 30 | 70 | 165 | M16×2.0 | 6-M8×16 | 17 | 30 |
| RA-170 | 170 | 200 | 140 | 100 | 80 | 25 | 45 | 25 | 85 | 180 | M16×2.0 | 6-M10×18 | 17 | 30 |
| RA-220 | 220 | 255 | 170 | 130 | 110 | 30 | 50 | 25 | 91 | 186 | M20×2.5 | 6-M12×20 | 21 | 35 |
| RA-270 | 270 | 305 | 190 | 130 | 110 | 35 | 55 | 25 | 105 | 200 | M24×3.0 | 6-M12×20 | 25 | 40 |
Subject to technology changes without prior information
Non-standard requirements can be made
