| Product Name: | SRD DOUBLE ROD ROTATING CYLINDER WITH SAFELY DEVICE | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, precision hydraulic cylinders |
||

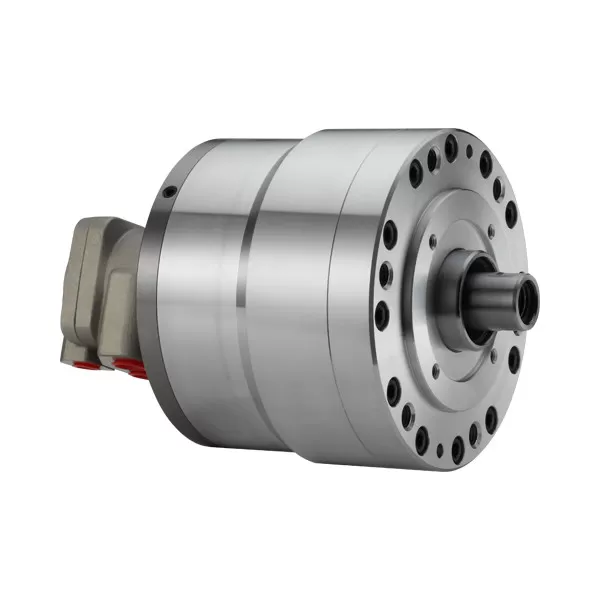

SRD DOUBLE ROD ROTATING CYLINDER WITH SAFELY DEVICE
Brand:NTH
For short form.light weight,double rod rotary cylinder.
Built-in safety check valves,pressure relief valves and proximity seneor.
The drain port should be independently connectde to oil tank to avoid back pressure.

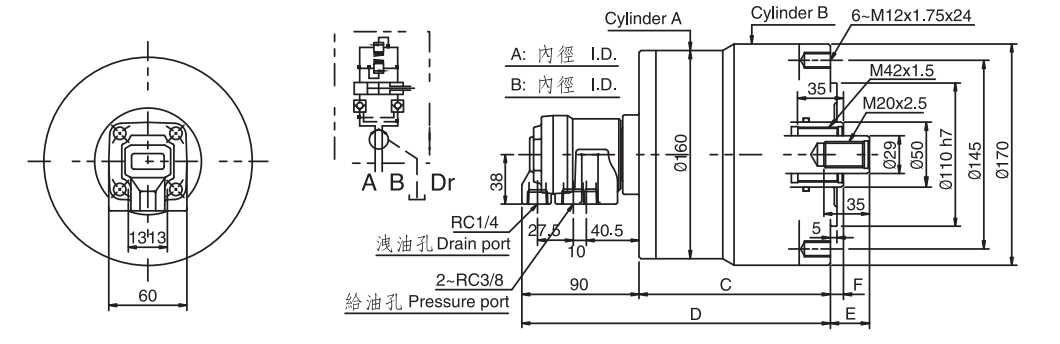

Size unit: mm
| Spec Model | Piston area cm2 Extend A | Piston area cm2 Extend B | Piston area cm2 Retract A | Piston area cm2 Retract B |
|---|---|---|---|---|
| SRD-120 | 122.7 | 126.1 | 116.1 | 113.1 |
| SRD-125 | 122.7 | 126.1 | 116.1 | 113.1 |
| Spec Model | Piston stroke mm | Max RPM | Max.Operating Pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|---|
| SRD-120 | 20 | 5000 | 3.0(30) | 0.14 | 11.3 |
| SRD-125 | 25 | 5000 | 3.0(30) | 0.15 | 11.5 |
| Spec Model | A | B | C | D | E Max. | E Min. | F Max. | F Min. |
|---|---|---|---|---|---|---|---|---|
| SRD-120 | 130 | 125 | 137 | 227 | 60 | 40 | 35 | 15 |
| SRD-125 | 130 | 125 | 147 | 237 | 55 | 30 | 35 | 10 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:SRD Series.pdf
