| Product Name: | SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, rotary air cylinder |
||

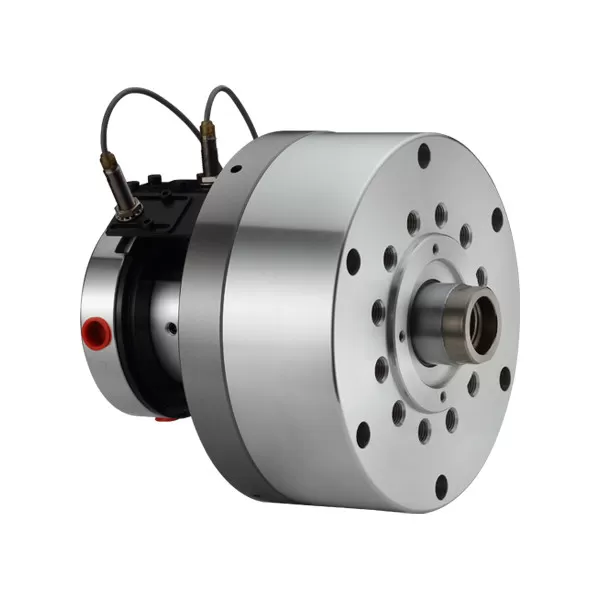

SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE
Brand:NTH
For short from,lightc weight and high speed rotary cylinder.To allow compressed air to be feed from the rear end of the distributor through the rotating union.
Built-in safety check valves,pressure relief valves and proximity seneor.
Can screw it from the rear end of the cylinder when mounting.
The drain port should be independently connectde to oil tank to avoid back pressure.
When used,a little oil mist should be contained.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| SLAN-E110 | 91.2 | 87.9 | 20 | 6000 |
| SLAN-E120 | 109.3 | 106 | 21 | 6000 |
| SLAN-E130 | 128.9 | 123.1 | 30 | 6000 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | Air connection Max.pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|
| SLAN-E110 | 4.0(40) | 0.8(8) | 0.02 | 6.9 |
| SLAN-E120 | 4.0(40) | 0.8(8) | 0.02 | 8.8 |
| SLAN-E130 | 4.0(40) | 0.8(8) | 0.03 | 9.1 |

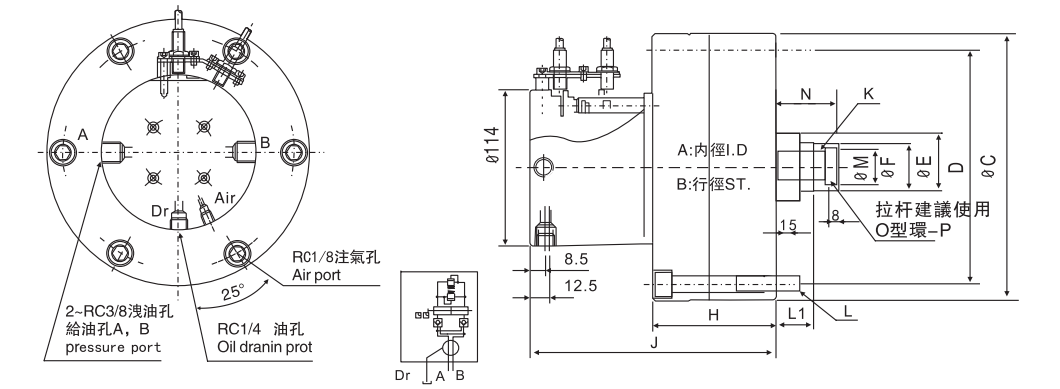

| Spec Model | A | B | C h7 | D | E | F | G Max | G Min | H | J | K | L | L1 | M H8 | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLAN-E110 | 110 | 20 | 145 | 128 | 42 | 29 | 60 | 40 | 66 | 146 | M20×2.5 | 6~M8×70 | 12 | 22 | 38 | S20 |
| SLAN-E120 | 120 | 21 | 168 | 145 | 42 | 29 | 60 | 39 | 69.5 | 148 | M20×2.5 | 6~M10×75 | 17 | 22 | 38 | S20 |
| SLAN-E130 | 130 | 30 | 168 | 150 | 50 | 33 | 60 | 30 | 79.5 | 158 | M24×3.0 | 6~M10×85 | 17 | 27 | 43 | S24 |
Subject to technology changes without prior information
Non-standard requirements can be made
