| Product Name: | SLA ROTAING HYDRAULIC CYLINDER WITH AIR CONNECTION | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, rotary air cylinder |
||

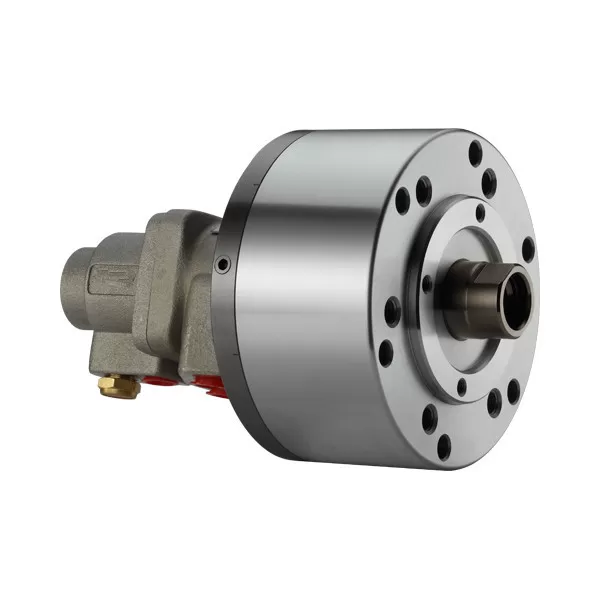

SLA ROTAING HYDRAULIC CYLINDER WITH AIR CONNECTION
Brand:NTH
To allow coolant to be feed from the rear end of the distributor through the rotating union.
Can screw it from the rear end of the cylinder when mounting.
When used,a little oil mist should be contained.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| SLA-75 | 42.6 | 37.1 | 15 | 6000 |
| SLA-100 | 77 | 71.5 | 20 | 6000 |
| SLA-125 | 121.2 | 113.1 | 25 | 6000 |
| SLA-150 | 175.2 | 160.8 | 30 | 5500 |
| SLA-200 | 312.5 | 290.4 | 35 | 5500 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | coolant connection Max.pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|
| SLA-75 | 4.0(40) | 0.8(8) | 0.01 | 3 |
| SLA-100 | 4.0(40) | 0.8(8) | 0.04 | 4.5 |
| SLA-125 | 4.0(40) | 0.8(8) | 0.06 | 7 |
| SLA-150 | 4.0(40) | 0.8(8) | 0.1 | 9.6 |
| SLA-200 | 4.0(40) | 0.8(8) | 0.29 | 15.5 |

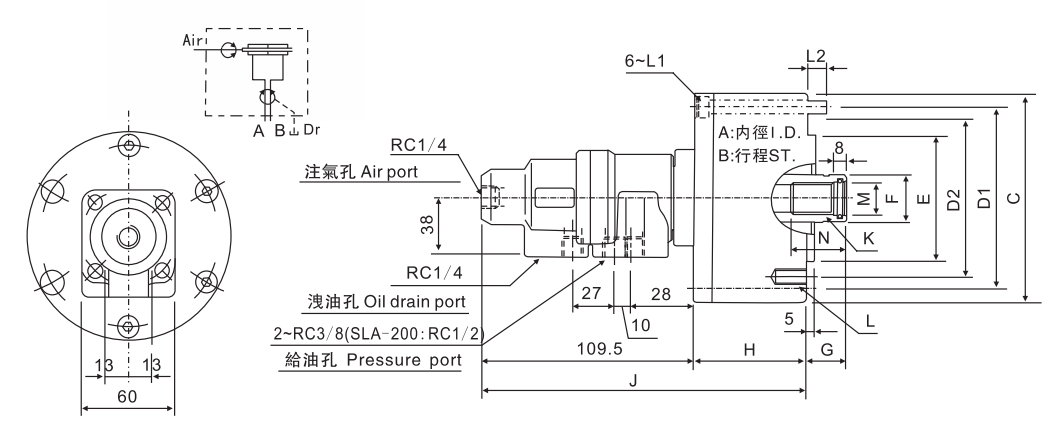

Spec Model | A | B | C | D1 | D2 | E H7 | F | G Max | G Min | H | J | K | L | L1 | L2 | M H8 | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLA-75 | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 166 | M20×2.5 | 6~M8×16 | M8×60 | 12 | 21 | 35 |
| SLA-100 | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 181 | M20×2.5 | 6~M10×20 | M8×75 | 12 | 21 | 35 |
| SLA-125 | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 191 | M24×3.0 | 6~M12×20 | M8×85 | 12 | 25 | 45 |
| SLA-150 | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 204 | M30×3.5 | 12~M12×24 | M10×100 | 16 | 31 | 45 |
| SLA-200 | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 225 | M36×4.0 | 12~M16×30 | M10×125 | 21 | 37 | 60 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:SLA Series.pdf
