| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SLN-75,SLN-100,SLN-125,SLN-150,SLN-200, |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SLN ROTARY HYDRAULIC CYLINDER WITH COLLANT CONNECTION | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary air cylinder, precision hydraulic cylinders |
||

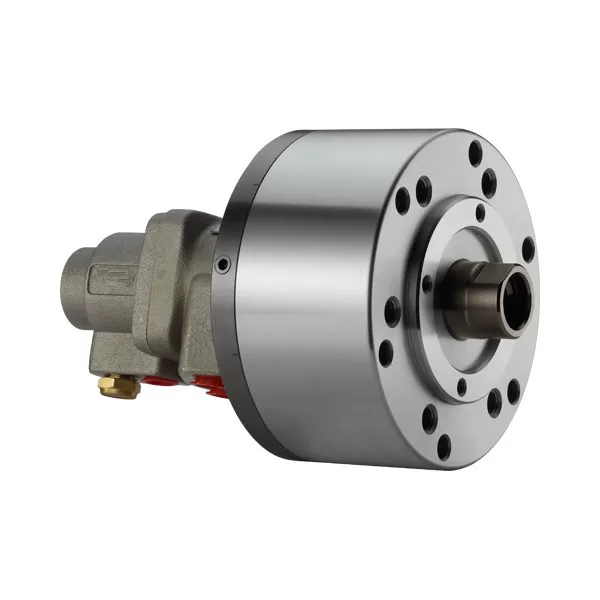

SLN ROTARY HYDRAULIC CYLINDER WITH COLLANT CONNECTION
Brand:NTH
To allow coolant to be feed from the rear end of the distributor through the rotating union.
Built-in safrty check valves and pressure relidf valves.
The drain port should be independently connectde to oil tank to avoid back pressure.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| SLN-75 | 42.6 | 37.1 | 15 | 6000 |
| SLN-100 | 77 | 71.5 | 20 | 6000 |
| SLN-125 | 121.2 | 113.1 | 25 | 6000 |
| SLN-150 | 175.2 | 160.8 | 30 | 5500 |
| SLN-200 | 312.5 | 290.4 | 35 | 5500 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | coolant connection Max.pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|
| SLN-75 | 4.0(40) | 3.5(35) | 0.01 | 3 |
| SLN-100 | 4.0(40) | 3.5(35) | 0.04 | 4.5 |
| SLN-125 | 4.0(40) | 3.5(35) | 0.05 | 7 |
| SLN-150 | 4.0(40) | 3.5(35) | 0.1 | 9.6 |
| SLN-200 | 4.0(40) | 3.5(35) | 0.29 | 15.5 |

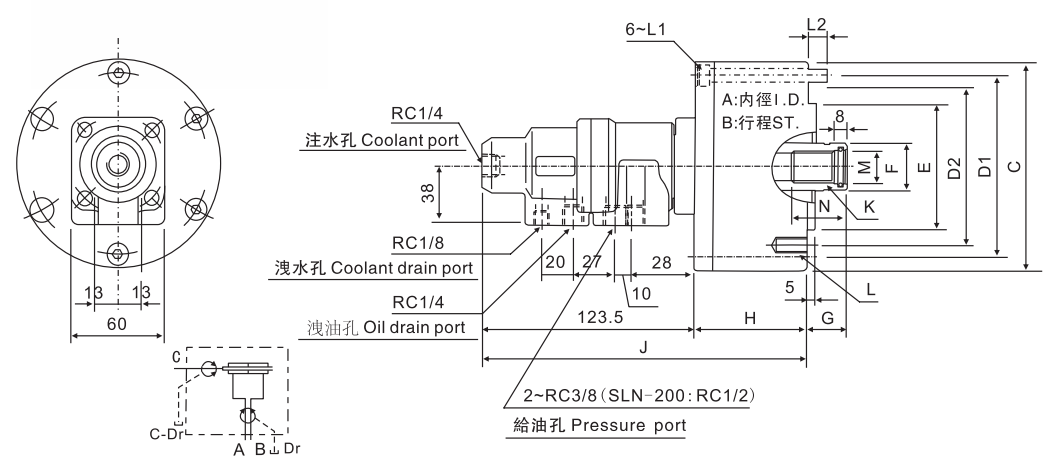

| Spec Model | A | B | C | D1 | D2 | E H7 | F | G Max | G Min | H | J | K | L | L1 | L2 | M H8 | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLN-75 | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 180 | M20×2.5 | 6~M8×16 | M8×60 | 12 | 21 | 35 |
| SLN-100 | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 195 | M20×2.5 | 6~M10×20 | M8×75 | 12 | 21 | 35 |
| SLN-125 | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 205 | M24×3.0 | 6~M12×20 | M8×85 | 12 | 25 | 45 |
| SLN-150 | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 218 | M30×3.5 | 12~M12×24 | M10×100 | 16 | 31 | 45 |
| SLN-200 | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 240 | M36×4.0 | 12~M16×30 | M10×125 | 21 | 37 | 60 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:SLN Series.pdf
