| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SL-75,SL-100,SL-125,SL-150,SL-200, |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SL ROTARY HYDRAULIC CYLINDER WITH COOLANT CONNECTION AND SAFETY DEVICE | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, rotary air cylinder |
||

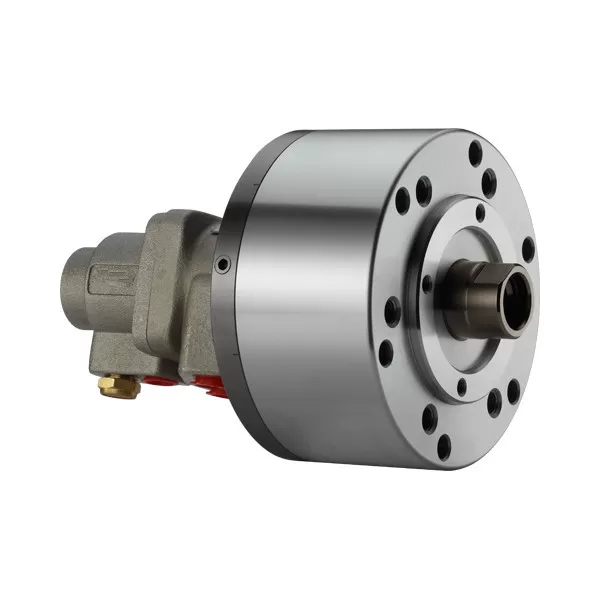

SL ROTARY HYDRAULIC CYLINDER WITH COOLANT CONNECTION AND SAFETY DEVICE
Brand:NTH
To allow coolant to be feed from the rear end of the distributor through the rotating union.
Built-in safrty check valves and pressure relidf valves.
The drain port should be independently connectde to oil tank to avoid back pressure.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM |
|---|---|---|---|---|
| SL-75 | 42.6 | 37.1 | 15 | 6000 |
| SL-100 | 77 | 71.5 | 20 | 6000 |
| SL-125 | 121.2 | 113.1 | 25 | 6000 |
| SL-150 | 175.2 | 160.8 | 30 | 5500 |
| SL-200 | 312.5 | 290.4 | 35 | 5500 |
| Spec Model | Max.Operating Pressure Mpa(kgf/cm2) | coolant connection Max.pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|
| SL-75 | 4.0(40) | 3.5(35) | 0.01 | 3.1 |
| SL-100 | 4.0(40) | 3.5(35) | 0.04 | 4.6 |
| SL-125 | 4.0(40) | 3.5(35) | 0.06 | 7.1 |
| SL-150 | 4.0(40) | 3.5(35) | 0.1 | 9.7 |
| SL-200 | 4.0(40) | 3.5(35) | 0.3 | 15.6 |

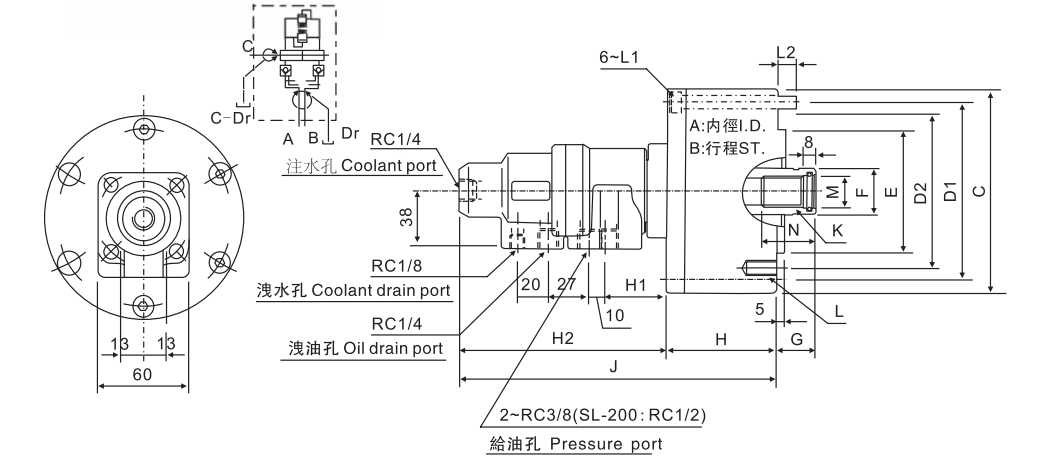

| Spec Model | A | B | C | D1 | D2 | E | F | G | G | H | H1 | H2 | J | K | L | L1 | L2 | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-75 | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 42 | 137 | 194 | M20×2.5 | 6~M8×16 | M8×60 | 12 | 21 | 35 |
| SL-100 | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 42 | 137 | 209 | M20×2.5 | 6~M10×20 | M8×75 | 12 | 21 | 35 |
| SL-125 | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 35 | 25 | 82 | 41 | 136 | 218 | M24×3.0 | 6~M12×20 | M8×85 | 12 | 25 | 45 |
| SL-150 | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 45 | 25 | 95 | 39 | 134 | 230 | M30×3.5 | 12~M12×24 | M10×100 | 16 | 31 | 45 |
| SL-200 | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 55 | 35 | 115 | 36 | 132 | 248 | M36×4.0 | 12~M16×30 | M10×125 | 21 | 37 | 60 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:SL Series.pdf
