| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SNK-75,SNK-100,SNK-125,SNK-150,SNK-200,SNK-250, |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SNK ROTARY HYDRAULIC CYLINDER | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, precision hydraulic cylinders |
||

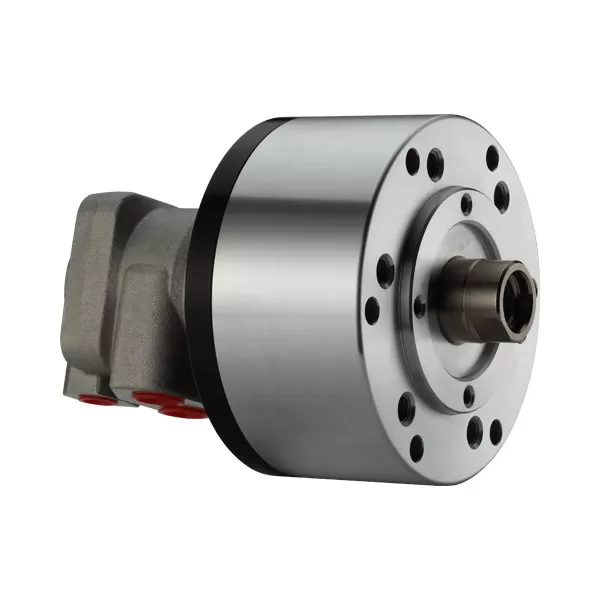

SNK ROTARY HYDRAULIC CYLINDER
Brand:NTH
For short form.lighe weight and high speed rotary cylinder.
Can screw it from the rear end of the cylinder when mounting.
The drain port should be independently connectde to oil tank to avoid back pressure.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM | Max.Operating Pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|---|---|---|
| SNK-75 | 44.2 | 37.1 | 15 | 6000 | 4.0(40) | 0.01 | 2.8 |
| SNK-100 | 78.5 | 71.5 | 20 | 6000 | 4.0(40) | 0.03 | 4.3 |
| SNK-125 | 122.7 | 113.1 | 25 | 5500 | 4.0(40) | 0.05 | 6.8 |
| SNK-150 | 176.7 | 160.8 | 30 | 5500 | 4.0(40) | 0.09 | 9.4 |
| SNK-200 | 314.1 | 290.4 | 35 | 5500 | 4.0(40) | 0.28 | 15.3 |
| SNK-250 | 469.1 | 436 | 60 | 2000 | 5.0(50) | 0.4 | 45.2 |

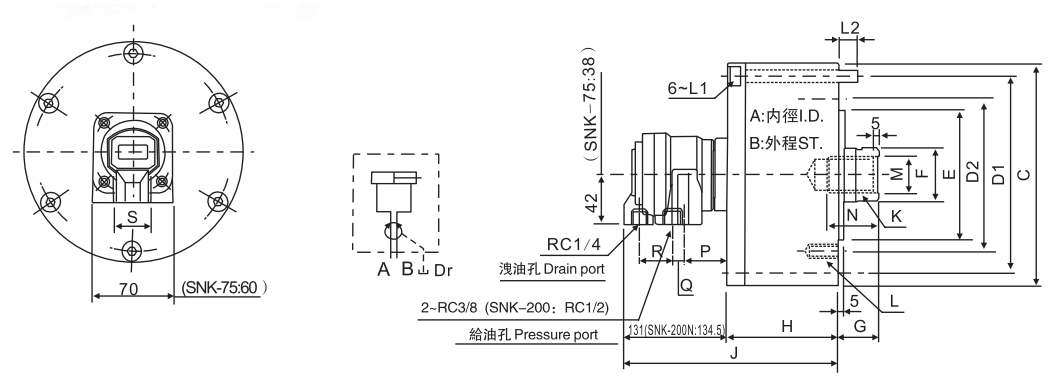

Spec Model | A | B | C | D1 | D2 | E | F | G Max | G Min | H | J | K | L | L1 | L2 | M | N | P | Q | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SNK-75 | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 148 | M20×2.5 | 6~M8×16 | M8×60 | 12 | 21 | 35 | 28 | 10 | 27.5 | 26 |
| SNK-100 | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 163 | M20×2.5 | 6~M10×20 | M8×75 | 12 | 21 | 35 | 26 | 10 | 28.5 | 32 |
| SNK-125 | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 172 | M24×3.0 | 6~M12×20 | M8×85 | 12 | 25 | 45 | 26 | 10 | 28.5 | 32 |
| SNK-150 | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 184 | M30×3.5 | 12~M12×24 | M10×100 | 16 | 31 | 45 | 26 | 10 | 28.5 | 32 |
| SNK-200 | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 201 | M36×4.0 | 12~M16×30 | M10×125 | 21 | 37 | 60 | 60 | 6 | 28.5 | 32 |
| SNK-250 | 245 | 60 | 307 | 275 | 220 | 160 | 65 | 85 | 25 | 165 | 255 | M42×3.0 | 12~M20×35 | M16×175 | 28 | 45 | 65 | 65 | 18 | 6 | 28 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:SNK Series.pdf
