| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 90040800,90041000,90041300,90041300,90041600 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipp |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | T-NUTS FOR SMW AUTOBLOCK CHUCK | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Mount And Fix Chuck Jaws | Feature: | High Quality /High Precision/Brasion Proof |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | milling machine t nuts, chuck jaw nuts |
||

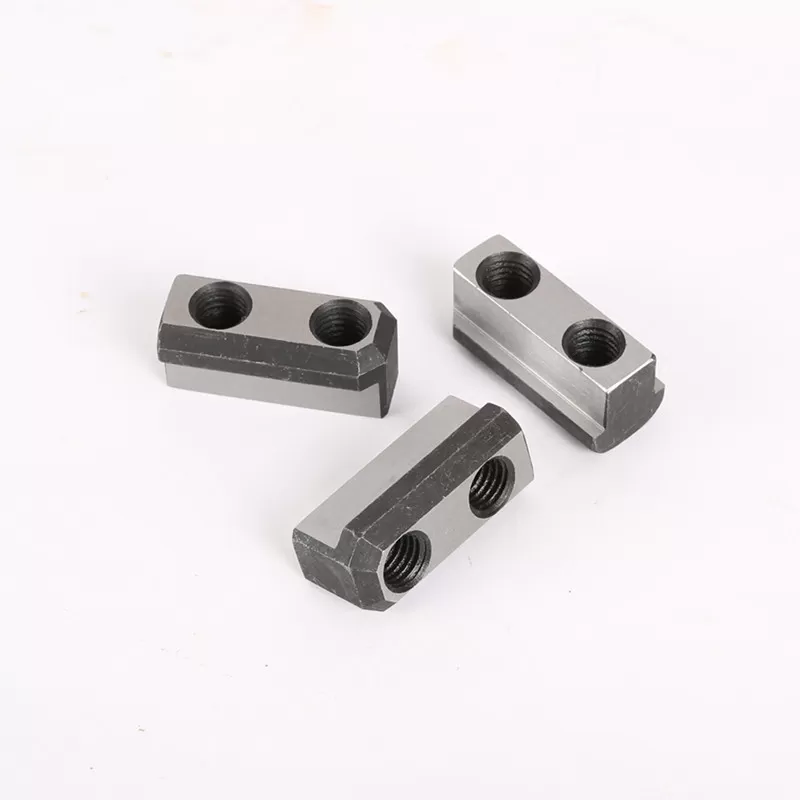

T-NUTS FOR SMW AUTOBLOCK CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
Advantages
1, For standard T-nuts, the material is high quality steel, hardened and ground.
2, Precision size can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

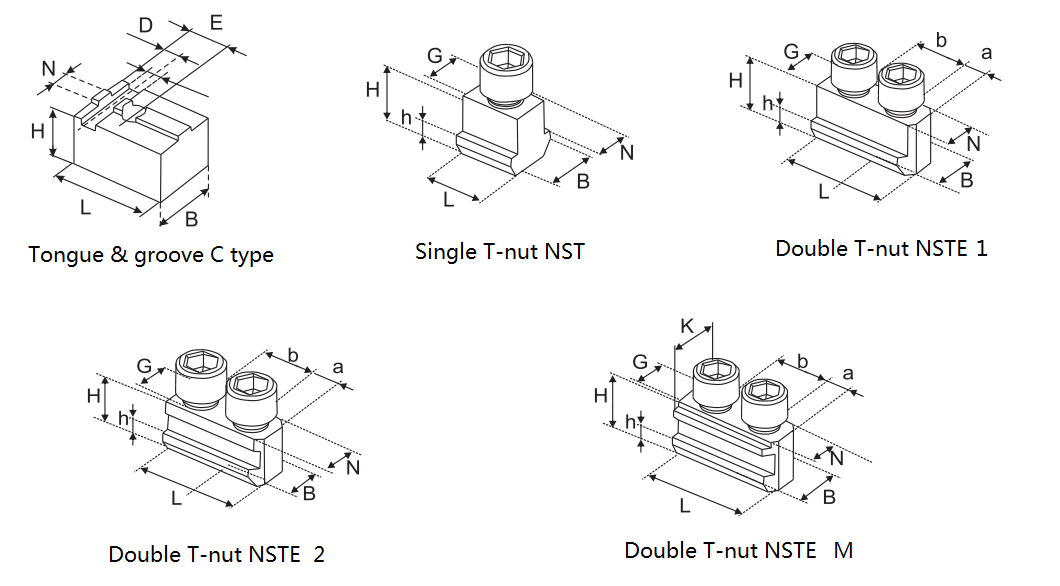

Tongue & groove soft blank top jaws “C”
DIN standard tongue & groove Fof CL-C chucks
| Id.No. | B mm | H mm | L mm | N mm | D mm | E mm | I mm | Mass kg/jaw |
| 90040800 | 30 | 30 | 38 | 8 | 8 | 14 | 8 | 0.18 |
| 90041000 | 30 | 30 | 48 | 8 | 8 | 20 | 8 | 0.23 |
| 90041300 | 35 | 35 | 57 | 14 | 27 | 27 | 16 | 0.4 |
| 90041600 | 40 | 40 | 75 | 18 | 34 | 34 | 18 | 0.72 |
Single T-nut NST Type1
| Id.No. | B mm | H mm | L mm | N mm | G mm | H mm |
| 12063000 | 29 | 25 | 24 | 21 | M16 | 11 |
| 12064020 | 35 | 34.5 | 30 | 22 | M20 | 15 |
| 12065020 | 35 | 34 | 30 | 25.5 | M20 | 15 |
| 12065082 | 36 | 34 | 30 | 25.5 | M20 | 15 |
| 12065002 | 40 | 40 | 32 | 25.5 | M20 | 15.5 |
22mm guide in the top jaw 25.5mm guide in the master jaw
25.5mm guide in the top jaw 28mm guide in the master jaw
Double T-nut NSTE1 Type2
| Id.No. | B mm | H mm | L mm | N mm | G mm | a mm | b mm | h mm |
| 12061300 | 17 | 15 | 30 | 12 | M18 | 7 | 16 | 6.5 |
| 73064060 | 31 | 33 | 60 | 21 | M16 | 13 | 34 | 14.5 |
| 12064520 | 31 | 33 | 70 | 22 | M20 | 16 | 38 | 14.5 |
Double T-nut NSTE2 Type3
| Id.No. | B mm | H mm | L mm | N mm | G mm | a mm | b mm | h mm |
| 12061200 | 15 | 15 | 32 | 12 | M8 | 6.5 | 16 | 6.5 |
| 73061650 | 17 | 18.5 | 32 | 14 | M10 | 8 | 16.5 | 6.5 |
| 73062150 | 19 | 20.5 | 43 | 17 | M12 | 10 | 23 | 7.5 |
| 18062632 | 19 | 20.5 | 50 | 17 | M12 | 10 | 30 | 7.5 |
| 73063050 | 25 | 26.5 | 56 | 21 | M16 | 13 | 30 | 10 |
| 73065030 | 31 | 33 | 70 | 25.5 | M20 | 16 | 38 | 14.5 |
Double T-nut NSTE-M Type4
For metric serrated master jaws to use existing kitagawa top jaws.
| NO. Id.No. | B mm | H mm | L mm | N mm | K mm | G mm | a mm | b mm | h mm |
| 73061602 | 17 | 18.5 | 36 | 12 | 14 | M10 | 8 | 20 | 6.5 |
| 73062101 | 19 | 20.5 | 45 | 14 | 17 | M12 | 10 | 25 | 7.5 |
| 18062633 | 19 | 20.5 | 50 | 16 | 17 | M12 | 10 | 30 | 7.5 |
| 73062501 | 25 | 26.5 | 56 | 16 | 21 | M12 | 13 | 30 | 10 |
Subject to technical changes
