| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | NT-05,NT-06,NT-08,NT-10,NT-12, NT-05,NT-06,NT-08,NT-10,NT-12, |
| Minimum Order Quantity: | NT-05,NT-06,NT-08,NT-10,NT-12, |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HIGH QUALITY STANDARD T NUTS FOR NON-THROUGH HOLE POWER CHUCK | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Mount And Fix Chuck Jaws | Feature: | High Quality /High Precision/Abrasion Proof |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | t nuts for milling machine, milling machine t nuts |
||

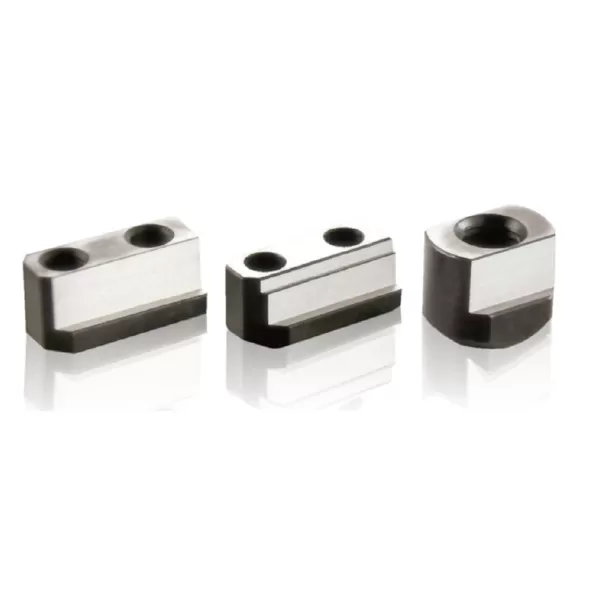

HIGH QUALITY STANDARD T NUTS FOR NON-THROUGH HOLE POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
Advantages
1, For standard T-nuts, the material is high quality steel, hardened and ground.
2, Precision size can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

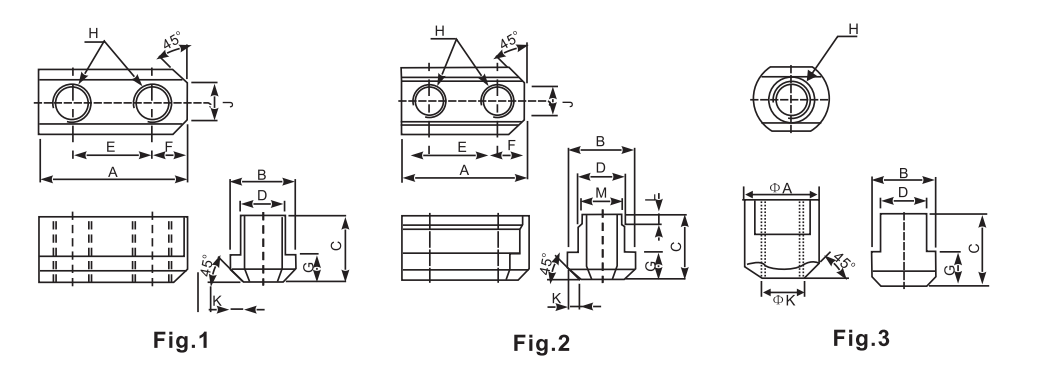

CHUCK TYPE | Size | A | B | C | D | E | F | G | H | J | K | L | M | Fig |
| Non-Thru | NT-06 | 36.5 | 17.5 | 22.5 | 12 | 20 | 7.5 | 7.5 | M10 | 6 | 3 | 8 | 22 | 1 |
| Non-Thru | NT-08 | 48 | 20.5 | 25.5 | 14 | 25 | 11 | 9.5 | M12 | 8 | 4 | 8 | 22 | 1 |
| Non-Thru | NT-10 | 55 | 22.5 | 25.5 | 16 | 30 | 11 | 9.5 | M12 | 8 | 4 | 8 | 22 | 1 |
| Non-Thru | NT-12 | 55.5 | 26.5 | 33.54 | 18 | 30 | 11.5 | 13.5 | M14 | 12 | 5 | 8 | 22 | 1 |
| Non-Thru | NT-1518 | 42 | 35 | 39.5 | 25.5 | 19 | M20 | 25 | 8 | 22 | 3 | |||
| Non-Thru | NT-1518-3.0 | 42 | 35 | 41.5 | 26 | 19 | M20 | 25 | 8 | 22 | 3 | |||
| Non-Thru | NT-2124 | 46 | 37.5 | 45 | 25 | 19 | M20 | 26.5 | 8 | 22 | 3 |
Subject to technical changes
