| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | HMG-6025-FV,HMG-6040-FV,HMG-6050-FV,HMG-6063-FV etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HMG-FV MULTIGRIP VISE WITH THE 4TH AXIS | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | 4TH AXIS MULTIGRIP VISE, HMG-FV MULTIGRIP VISE |
||

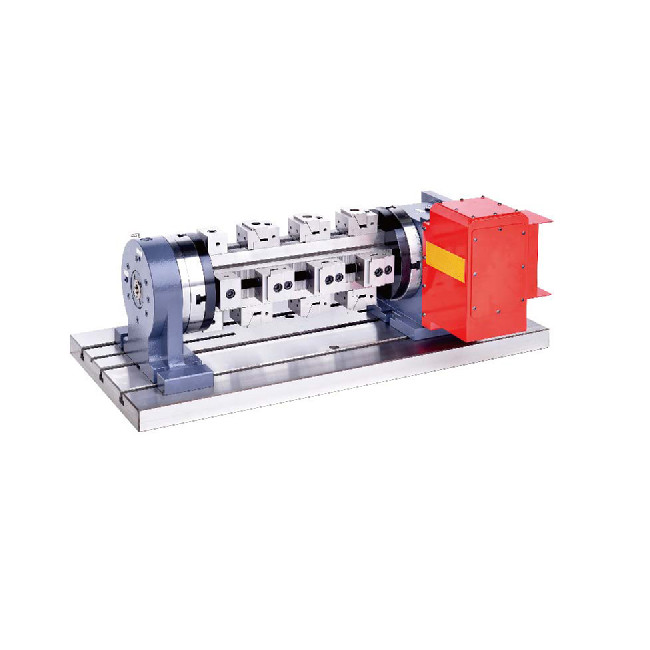

HMG-FV MULTIGRIP VISE WITH THE 4TH AXIS
Brand:NTH
Product Catalogue : HMG-FV MULTIGRIP VISE WITH THE 4TH AXIS&HMG MULTIG...

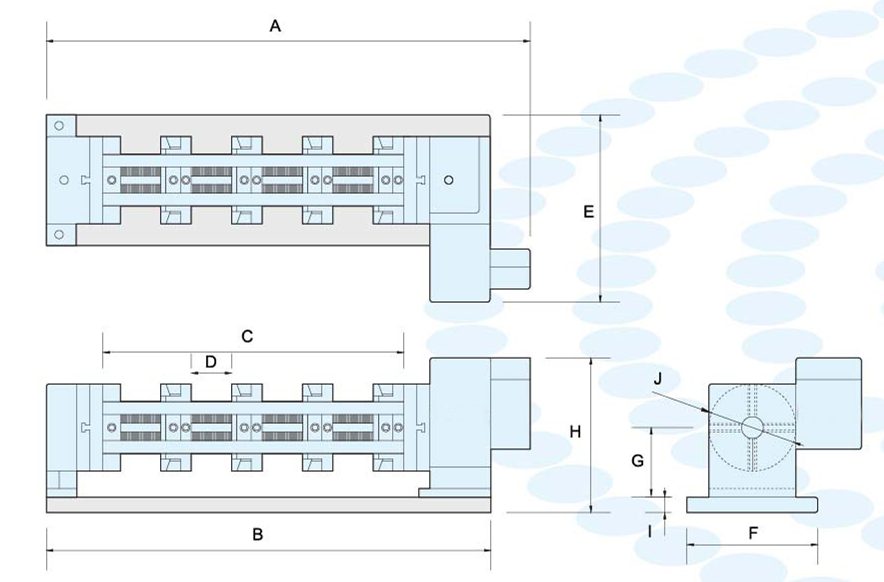

(UNIT:mm)
| MODEL | A | B | C | D | E | F | G | H | I | J |
| HMG-6025-FV | 650 | 570 | 250 | 25 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-6040-FV | 840 | 720 | 400 | 43 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-6050-FV | 900 | 820 | 500 | 40 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-6063-FV | 1030 | 950 | 630 | 73 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-9025-FV | 650 | 570 | 250 | 99 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-9040-FV | 840 | 720 | 400 | 29 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-9050-FV | 900 | 820 | 500 | 26 | 430 | 200 | 160 | 355 | 25 | 200 |
| HMG-9063-FV | 1030 | 950 | 630 | 59 | 430 | 200 | 160 | 355 | 25 | 200 |
