| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | HMG-6025-4V,HMG-6040-4V,HMG-6050-4V,HMG-6063-4V etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HMG-4V MULTIGRIP VISE GROUP HIGH PRECISION AND STABLE | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | HMG-4V MULTIGRIP VISE, HMG-4V MULTIGRIP VISE GROUP, MULTIGRIP VISE GROUP |
||

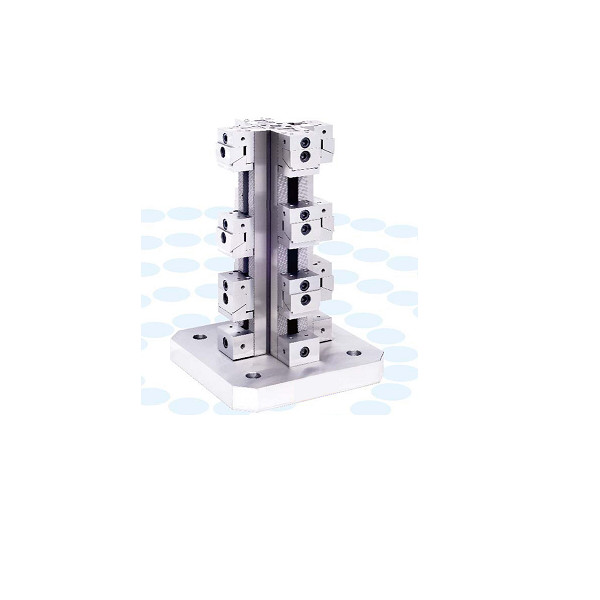

HMG-4V MULTIGRIP VISE GROUP HIGH PRECISION AND STABLE
Brand:NTH
Product Catalogue : HMG-4V MULTIGRIP VISE GROUP.pdf

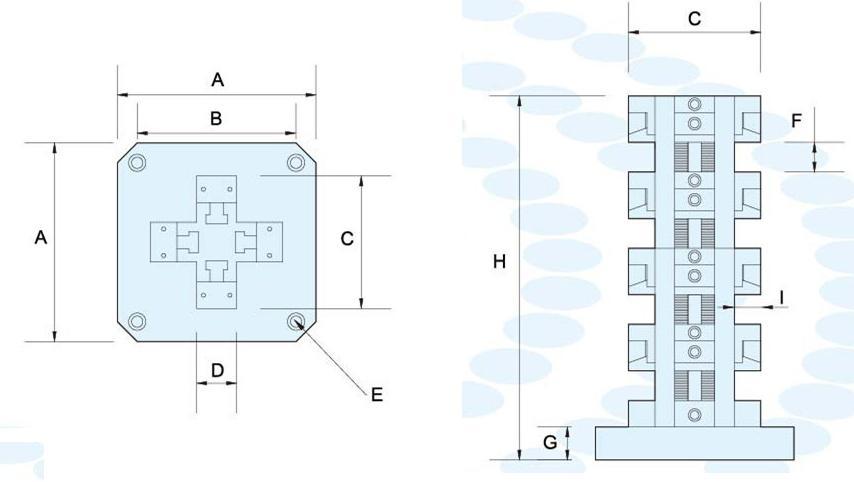

(UNIT:mm)
| MODEL | A | B | C | D | E | F | G | H | I |
| HMG-6025-4V | 300 | 240 | 200 | 60 | M16 | 25 | 30 | 280 | 40 |
| HMG-6040-4V | 300 | 240 | 200 | 60 | M16 | 43 | 30 | 430 | 40 |
| HMG-6050-4V | 300 | 240 | 200 | 60 | M16 | 40 | 30 | 530 | 40 |
| HMG-6063-4V | 300 | 240 | 200 | 60 | M16 | 73 | 30 | 660 | 40 |
| HMG-9025-4V | 300 | 240 | 320 | 90 | M16 | 99 | 35 | 285 | 45 |
| HMG-9040-4V | 300 | 240 | 320 | 90 | M16 | 29 | 35 | 435 | 45 |
| HMG-9050-4V | 300 | 240 | 320 | 90 | M16 | 26 | 35 | 535 | 45 |
| HMG-9063-4V | 300 | 240 | 320 | 90 | M16 | 59 | 35 | 665 | 45 |
