| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TMV-75,TMV-100,TMV-130,TMV-160 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | ROUND SELF-CENTERING VISE HIGH PRECISION PERFORMANCE | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | ROUND SELF-CENTERING VISE, PRECISION SELF-CENTERING VISE, PERFORMANCE SELF-CENTERING VISE |
||

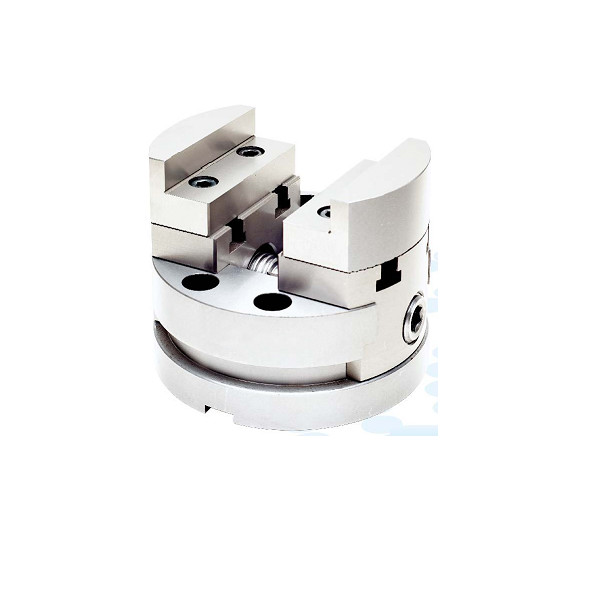

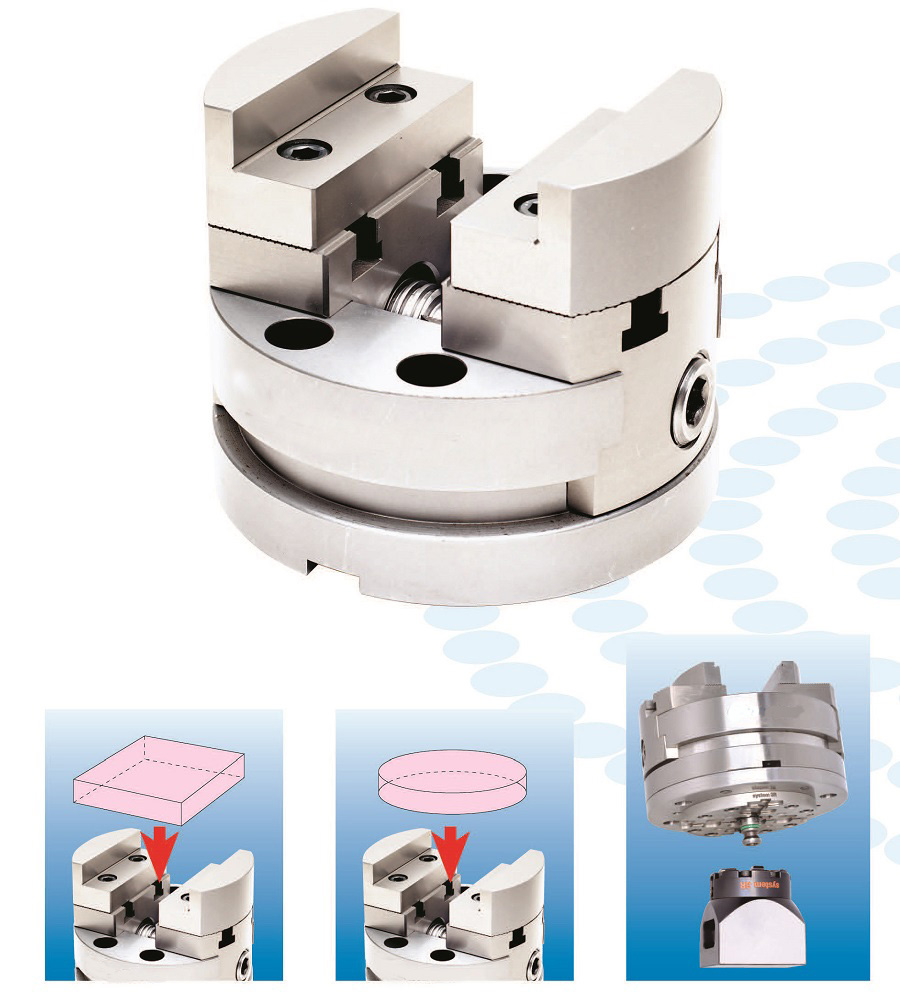

ROUND SELF-CENTERING VISE HIGH PRECISION PERFORMANCE
Brand:NTH

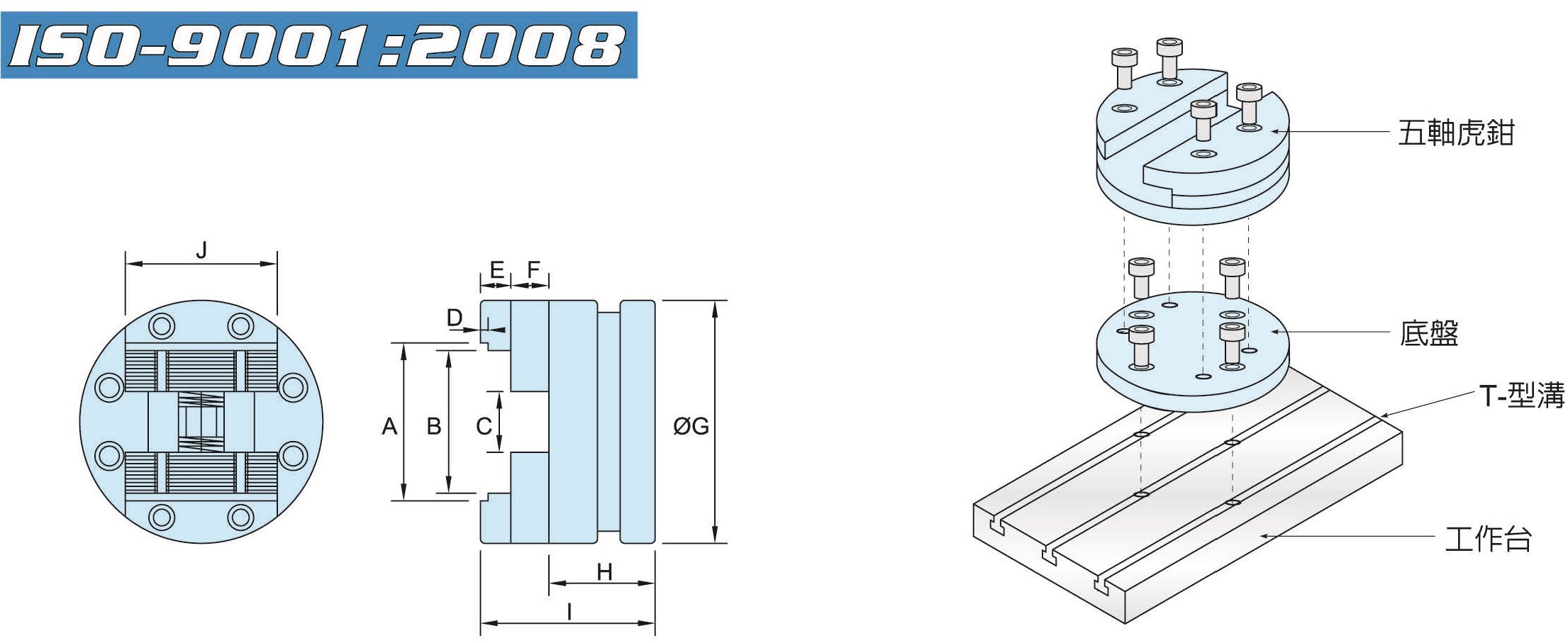

| MODEL | A | B | C | D | E | F | G | H | I | J | N.W. |
| TMV-75 | 80 | 70 | 30 | 5 | 15 | 15 | 120 | 50 | 80 | 75 | 8 |
| TMV-100 | 105 | 95 | 40 | 5 | 20 | 25 | 160 | 70 | 115 | 100 | 15 |
| TMV-130 | 135 | 125 | 50 | 5 | 20 | 25 | 210 | 80 | 125 | 130 | 34 |
| TMV-160 | 165 | 155 | 60 | 5 | 25 | 25 | 250 | 90 | 140 | 160 | 49 |
