| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MQL-225-350,HQ-400-MQL,HQL-300-2 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HIGH PRECISION ZERO POINT SYSTEM MANUAL TYPE WITH HEAT TREATMENT HRC 58-60 | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision | |
| Usage: | Service: | ||
| Highlight: | Heat Treatment Zero Point System, High Precision Zero Point System, Manual Type Zero Point System |
||

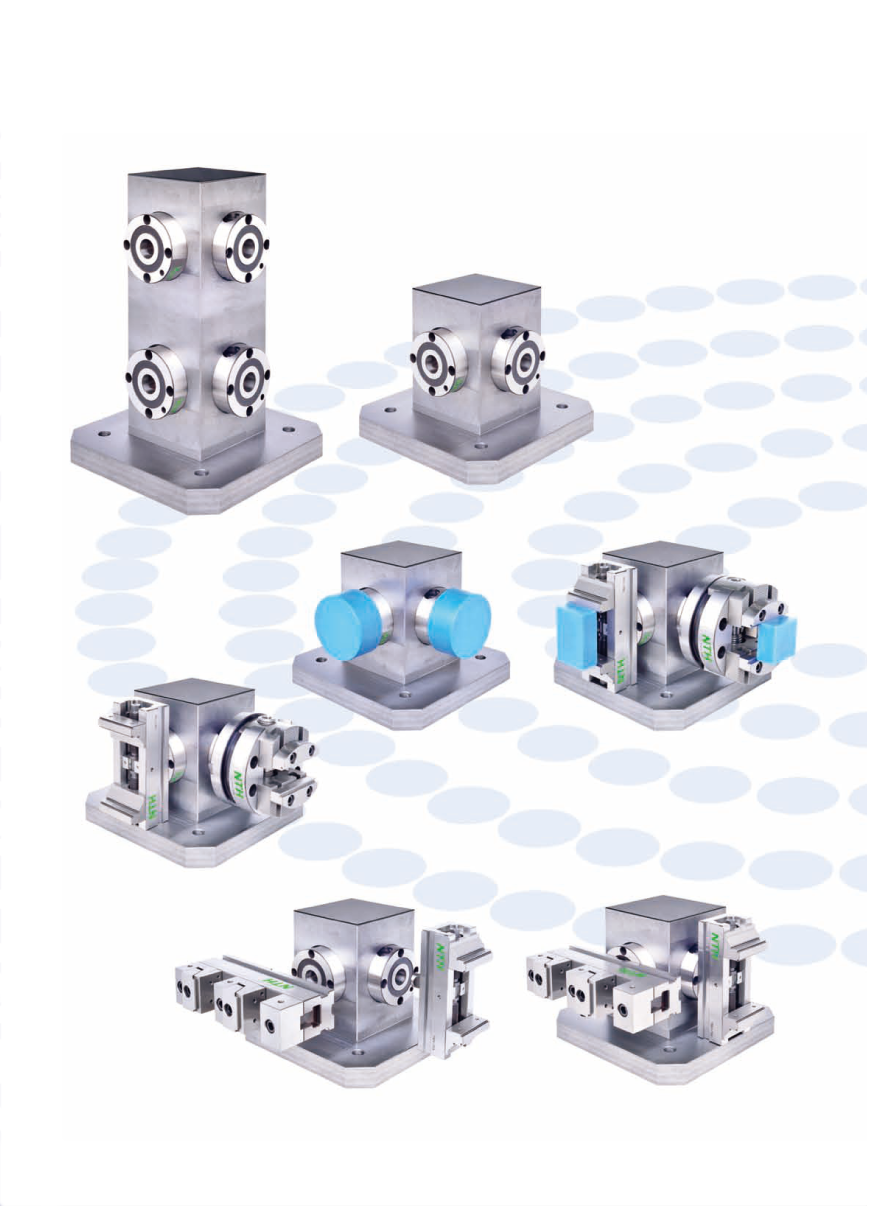

HIGH PRECISION ZERO POINT SYSTEM MANUAL TYPE WITH HEAT TREATMENT HRC 58-60
Brand:NTH
(UNIT:mm)

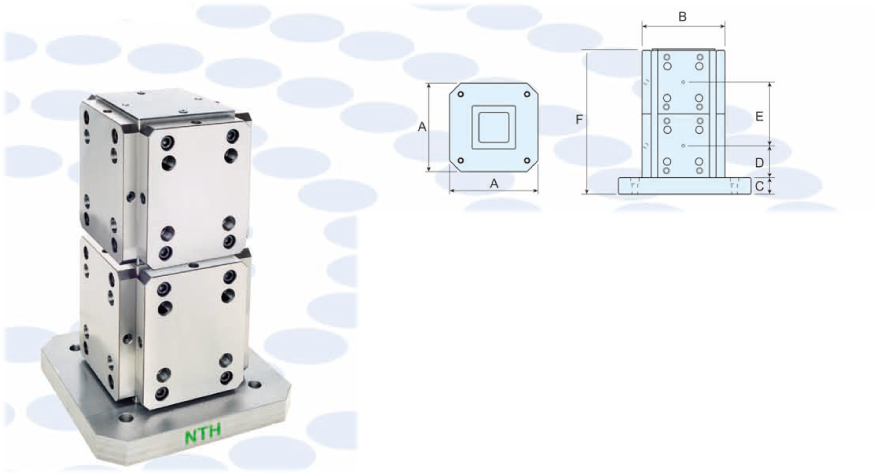

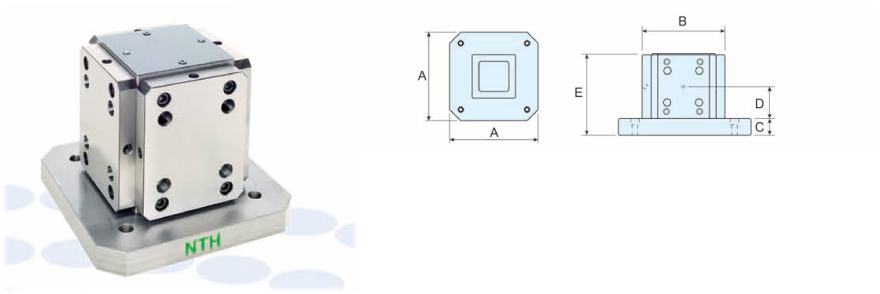

| Model | A | B | C | D | E | F | G | N.W.KG |
| MQL-225-350 | 200 | 350 | 68 | 35 | 150 | 100 | 100 | 23 |
| MQL-225-400 | 200 | 400 | 68 | 35 | 200 | 100 | 100 | 27 |
| MQL-225-550 | 200 | 550 | 83 | 40 | 270 | 120 | 150 | 42 |
| Model | A | B | C | D | E | N.W.KG |
| HQ-400-MQL | 400 | 350 | 200 | 175 | 63 | 48 |
| HQ-500-MQL | 500 | 450 | 200 | 250 | 78 | 98 |

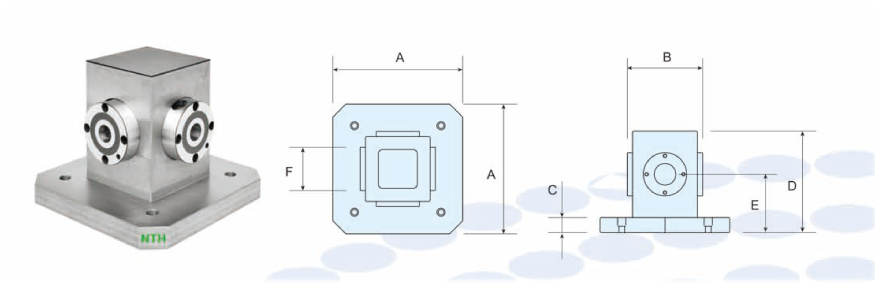

| Model | A | B | C | D | E | F |
| HQL-300 | 300 | 150 | 50 | 300 | 175 | 100 |
| HQL-400 | 400 | 200 | 50 | 400 | 200 | 150 |

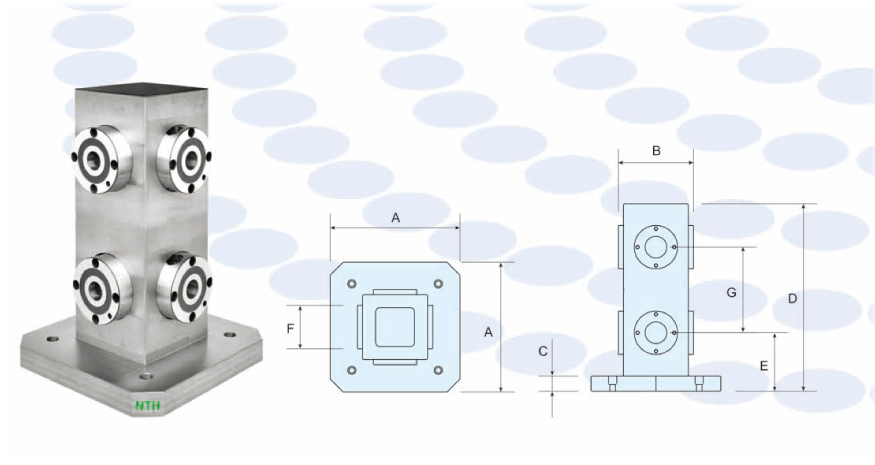

| Model | A | B | C | D | E | F | G |
| HQL-300-2 | 300 | 150 | 50 | 500 | 175 | 100 | 200 |
| HQL-400-2 | 400 | 200 | 50 | 600 | 200 | 150 | 250 |
| Model | A | B | C | D | E |
| MQL-96AT-1-4 | 400 | 230 | 50 | 96 | 245 |
| MQL-52AT-1-4 | 300 | 180 | 50 | 75 | 200 |
| Model | A | B | C | D | E | F |
| MQL-96AT-2-4 | 500 | 250 | 50 | 96 | 192 | 434 |
| MQL-52AT-2-4 | 400 | 210 | 50 | 75 | 150 | 305 |

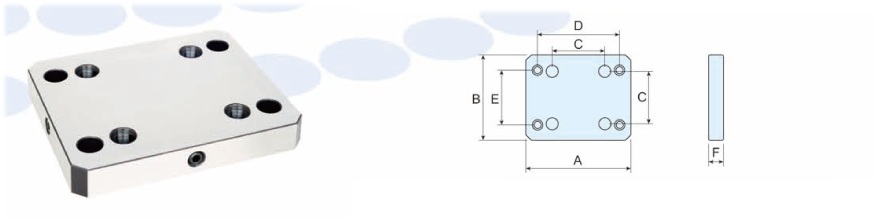

| Model | A | B | C | D | E | F | N.W |
| MQL-96A | 192 | 156 | 96 | 150 | 100 | 25 | 6 |
| MQL-52A | 150 | 116 | 52 | 100 | 50 | 27 | 3.5 |
