| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 200,240,250 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HARD JAWS FOR SCROLL CHUCK FORM C 2 PIECE JAWS TYPE 3 | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | metal lathe chuck jaws, kitagawa chuck parts |
||

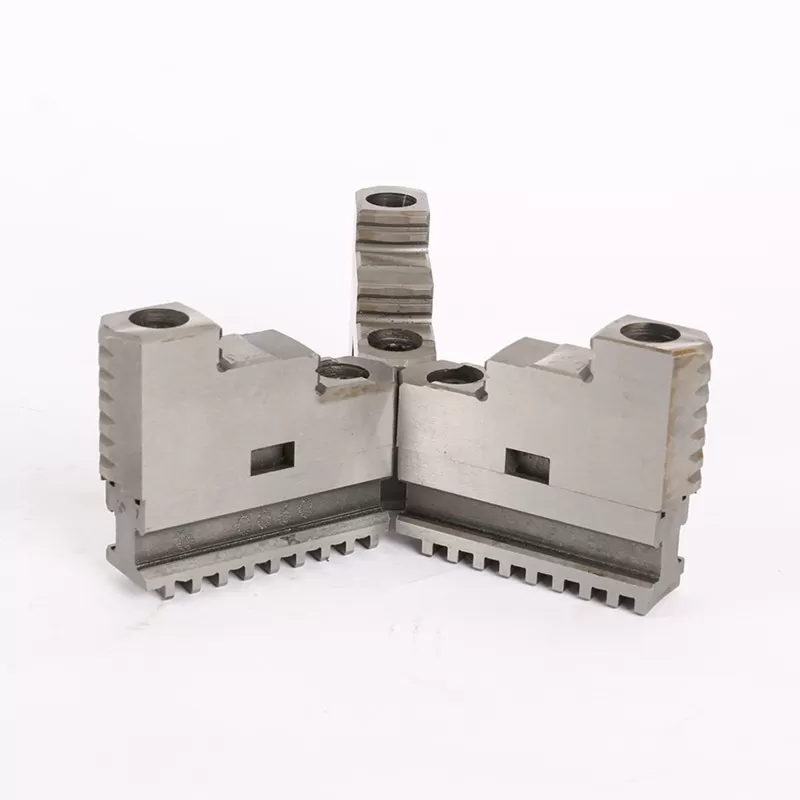

HARD JAWS FOR SCROLL CHUCK FORM C 2 PIECE JAWS TYPE 3
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

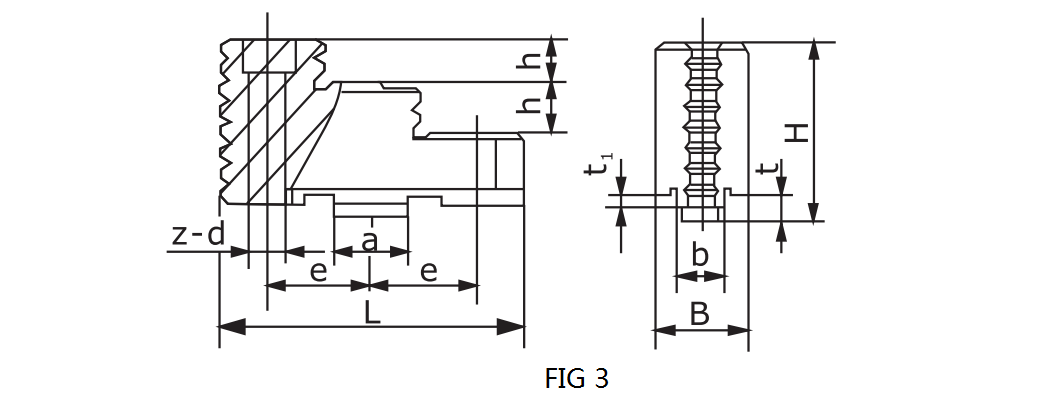

Two-Piece Jaws for Form C
type-3
| Size | L | B | H | h | a | b | e | t | t1 | z-d | Ref. |
| 320 | 127 | 36 | 59.5 | 17 | 28 | 15 | 44 | 7.5 | 2.8 | 2-13 | Fig3 |
| 325 | 127 | 36 | 59.5 | 17 | 28 | 15 | 44 | 7.5 | 2.8 | 2-13 | Fig3 |
| 380 | 127 | 36 | 59.5 | 17 | 28 | 15 | 44 | 7.5 | 2.8 | 2-13 | Fig3 |
The jaws are composed of top jaws and master jaws.
Subject to technical changes
