HN 3 jaw extra high speed through-hole power chuck(adapter inluded)

Basic Information
Place of Origin: CHINA
Brand Name: NTH Cooperated Brand
Model Number: HN-06,
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details:Good and firm package is suitable for the sea and air shipping
Delivery Time: 3work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:HN 3 jaw extra high speed through-hole power chuck(adapter inluded) Material: Cast Steel
Function: Feature: High Precision/Stable/High Quality
Usage: Fixture/Gripping/Prop Up Service: ODM/OEM Is Accpetable
Highlight:

auto strong chucks, auto strong lathe chuck

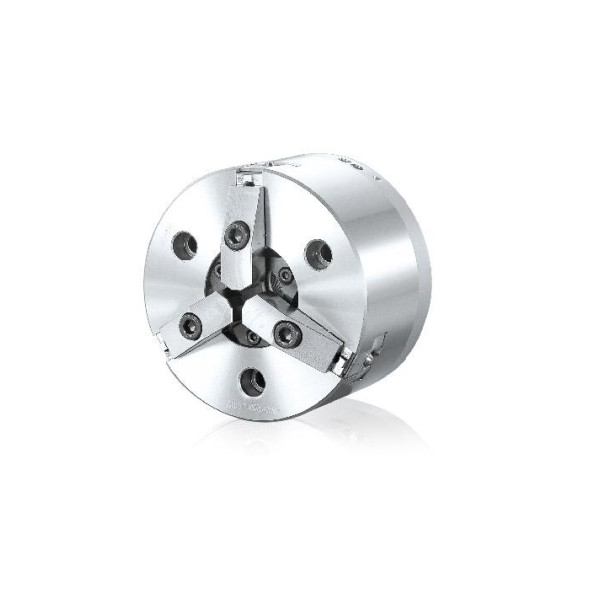

HN 3 jaw extra high speed through-hole power chuck(adapter inluded)

3 jaw extra high speed through-hole power chuck(adapter inluded)

Possible 10,000 r.p.m. highest speed chuck.
Model HN chucks are assembled with adaptor for ASA B5.9 type A spindles.
Model HN chucks are manufactured form high grade alloy steel. All sliding surfaces are hardened and ground for accurate actual running
and long service repeatability.

HN 3 jaw extra high speed through-hole power chuck(adapter inluded) 0

UNIT : mm

SPEC
Model

Through-

Hole

(mm)

Plunger
Stroke
(mm)
Jaw Stroke
(In Dia.)
(mm)

Max.

Pull
Force
(kgf)

Max.

Gripping

Force
(kn)

Max.

Operating

Pressure
Mpa
(kgf/cm2)

Max.

Speed
(r.p.m.)

N.W.Moment
Of Inertia
I(kg‧m2)
Matching
Cylinder
Matching
Soft Jaw

Gripping
O.D.

Range
(mm)

HN-06Ø36125.5

30

(3050)

79.4

(8100)

2.9

(30)

1000011.50.035HG-1336Model-AØ14-Ø51
