| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | MH80,MH100,MH125,MH150, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MH Non through-hole rotary hydraulic cylinder | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

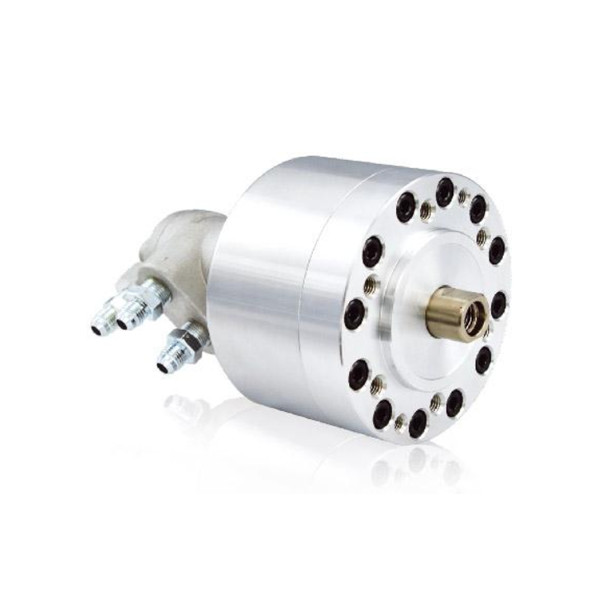

MH Non through-hole rotary hydraulic cylinder
Compact, low inertla, light weight cylinder :
Manufuctured by aluminium alloy, this cylinder is light weight design to reduce the loading of spindle.
High speed :
This balanced design cylinder is light weight, compact and maintains outstanding stability during high speed operation.
Long life :
High quality cylinder seals and high accuracy surface finish on components to ensure the long life of these cylinders.
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area (cm2) Push Side / Pull Side | Max. Draw Bar Force KN(kgf) Push Side / Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| MH80 | 80 | 47.7 / 42.8 | 15.5(1580)/ 13.9(1417) | 15 | 3.5(35.7) | 6000 | 0.005 | 5.1 | 0.4 |
| MH100 | 100 | 75.4 / 70.5 | 24.5(2498)/ 22.9(2335) | 20 | 3.5(35.7) | 5500 | 0.0125 | 6.6 | 0.4 |
| MH125 | 125 | 121.1 / 114 | 39.3(4007)/ 37(3773) | 25 | 3.5(35.7) | 5500 | 0.02 | 8.4 | 0.4 |
| MH150 | 150 | 176 / 160 | 66(6730)/ 60(6118) | 30 | 4.0(40.8) | 4000 | 0.047 | 10.4 | 0.8 |

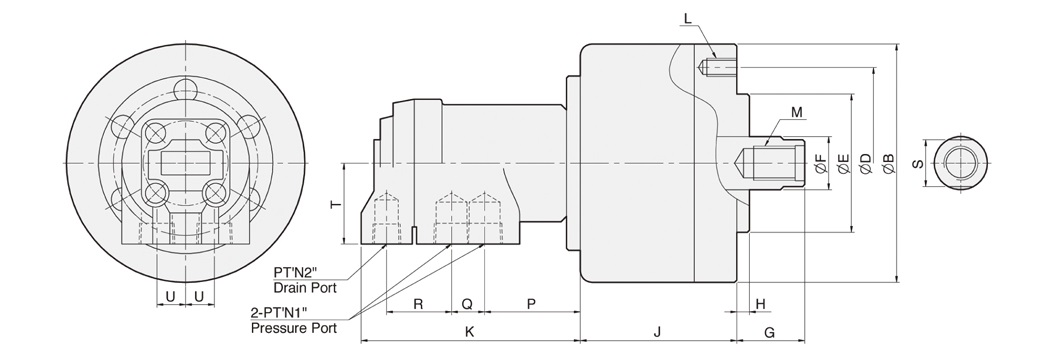

| DIM Model | B | D | E(h7) | F | Gmax. | Gmin. | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|
| MH80 | 112 | 90 | 65 | 25 | 45 | 30 | 6 | 73.5 | 103 | 6-M8x16 |
| MH100 | 135 | 100 | 80 | 25 | 45 | 25 | 6 | 88.5 | 103 | 6-M10x19 |
| MH125 | 160 | 130 | 110 | 30 | 51 | 26 | 6 | 95.5 | 103 | 6-M12x20 |
| MH150 | 190 | 130 | 110 | 45 | 50 | 20 | 6 | 107 | 103 | 12-M12x20 |
| DIM Model | M | N1 | N2 | P | Q | R | T | U | S |
|---|---|---|---|---|---|---|---|---|---|
| MH80 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| MH100 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| MH125 | M20x2.5x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 27 |
| MH150 | M30x3.5x40 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 38 |
