| Product Name: | MS Non through-hole rotary hydraulic cylinder(valve included) | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

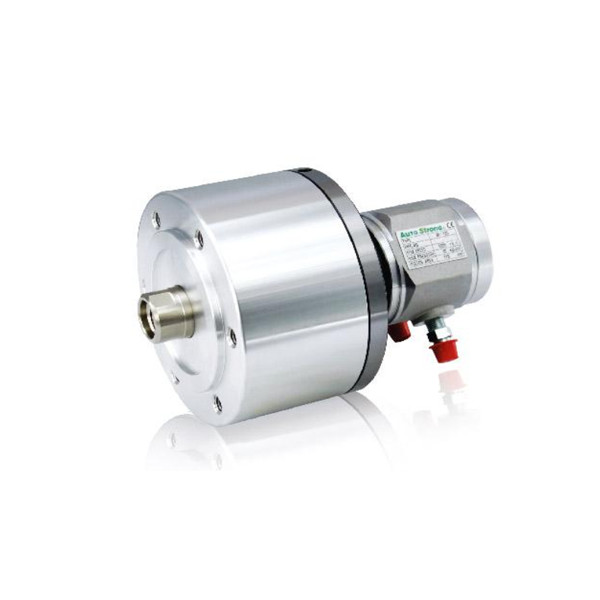

MS Non through-hole rotary hydraulic cylinder(valve included)
Built-in safty check valves.
UNIT : mm
| SPEC Model | Piston Area (cm2) Push Side / Pull Side | Max. Draw Bar Force KN(kgf) Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|
| MS105 | 86 / 79 | 29(2957) | 20 | 4.0(40.8) | 6000 | 0.0125 | 7.1 | 0.8 |
| MS125 | 122 / 113 | 42(4283) | 25 | 4.0(40.8) | 6000 | 0.0225 | 10 | 0.8 |
| MS150 | 176 / 160 | 60(6118) | 30 | 4.0(40.8) | 5500 | 0.0475 | 13.5 | 0.8 |
| MS200 | 314 / 290 | 108(11013) | 35 | 4.0(40.8) | 5500 | 0.0975 | 22 | 0.8 |

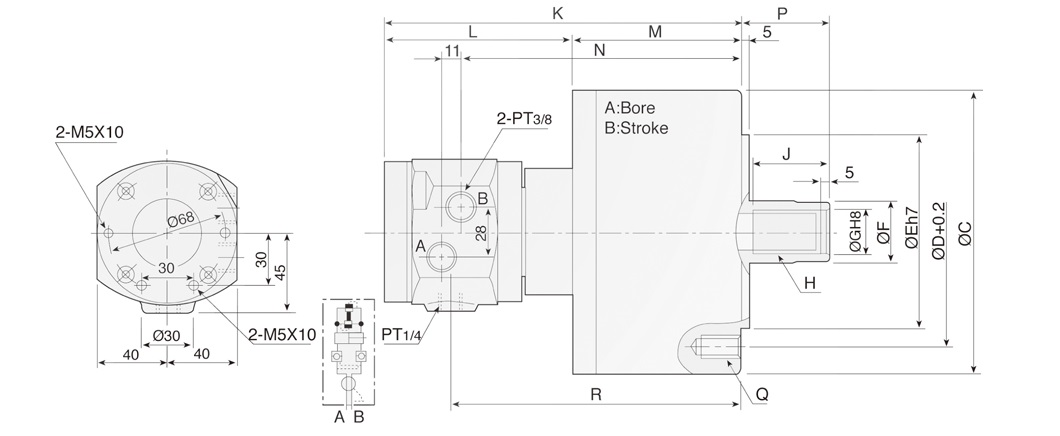

| DIM Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| MS105 | 105 | 20 | 135 | 100 | 80 | 30 | 21 | M20xP2.5 |
| MS125 | 125 | 25 | 160 | 130 | 110 | 35 | 25 | M24xP3.0 |
| MS150 | 150 | 30 | 190 | 130 | 110 | 45 | 31 | M30xP3.5 |
| MS200 | 200 | 35 | 245 | 145 | 120 | 55 | 37 | M36xP4.0 |
| DIM Model | J | K | L | M | N | Pmax. | Pmin. | Q | R |
|---|---|---|---|---|---|---|---|---|---|
| MS105 | 35 | 197 | 108 | 89 | 152 | 45 | 25 | 6-M10x20 | 158 |
| MS125 | 44 | 205 | 108 | 97 | 160 | 51 | 26 | 6-M12x24 | 166 |
| MS150 | 45 | 214 | 108 | 106 | 169 | 56 | 26 | 12-M12x24 | 175 |
| MS200 | 60 | 228 | 108 | 122 | 183 | 69 | 34 | 12-M16x30 | 189 |
