| Product Name: | V Series Large wedge type non through-hole power chuck (adapter excluded) | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/High Quality | |
| Usage: | Gripping/Fixture | Service: | OEM/ODM Is Acceptable |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

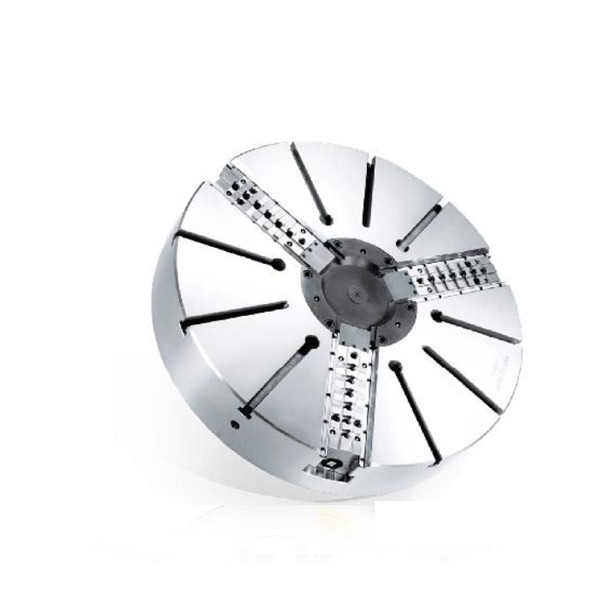

V Series Large wedge type non through-hole power chuck (adapter excluded)
UNIT : mm
| SPEC Model | Jaws | Plunger Stroke (mm) | Radial Jaw Stroke +(Manual setting) (mm) | Max.Pull Force (kgf) | Max.Gripping Force (kgf) | Max.Operating Pressure (kgf / cm2) |
|---|---|---|---|---|---|---|
| 40"V-240 | 3 | 57 | 23 + (30) | 180 | 320 | 42.8 |
| VIT-240 | 4 | 57 | 23 + (30) | 180 | 320 | 42.8 |
| 50"V-250 | 3 | 57 | 23 + (30) | 180 | 320 | 42.8 |
| VIT-250 | 4 | 57 | 23 + (30) | 180 | 320 | 42.8 |
| VE-250 | 6 | 57 | 23 + (30) | 180 | 320 | 42.8 |
| 63"V-263 | 3 | 60 | 24 + (40) | 200 | 360 | 46.9 |
| VIT-263 | 4 | 60 | 24 + (40) | 200 | 360 | 46.9 |
| VIT-263 | 6 | 60 | 24 + (40) | 200 | 360 | 46.9 |
| 79"VE-279 | 6 | 60 | 24 + (40) | 200 | 360 | 46.9 |
| SPEC Model | Max.Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I(kg‧m2 ) | Matching Cylinder | Matching Hard Jaw | Matching Soft Jaw | Gripping O.D. Range (mm) |
|---|---|---|---|---|---|---|---|
| 40"V-240 | 630 | 645 | 82 | MS250C | HJ40-1 | HC40-1 | Ø285-Ø1005 |
| VIT-240 | 550 | 700 | 89 | MS250C | HJ40-1 | HC40-1 | Ø285-Ø1005 |
| 50"V-250 | 500 | 890 | 168 | MS250C | HJ40-1 | HC40-1 | Ø270-Ø1250 |
| VIT-250 | 400 | 94 | 177 | MS250C | HJ40-1 | HC40-1 | Ø270-Ø1250 |
| VE-250 | 360 | 971 | 183 | MS250C | HJ40-1 | HC40-1 | Ø270-Ø1250 |
| 63"V-263 | 400 | 1800 | 548 | MS250C | HJ40-1 | HC40-1 | Ø390-Ø1600 |
| VIT-263 | 300 | 1700 | 518 | MS250C | HJ40-1 | HC40-1 | Ø390-Ø1600 |
| VIT-263 | 280 | 1800 | 548 | MS250C | HJ40-1 | HC40-1 | Ø390-Ø1600 |
| 79"VE-279 | 230 | 2850 | 1350 | MS250C | HJ40-1 | HC40-1 | Ø440-Ø2000 |

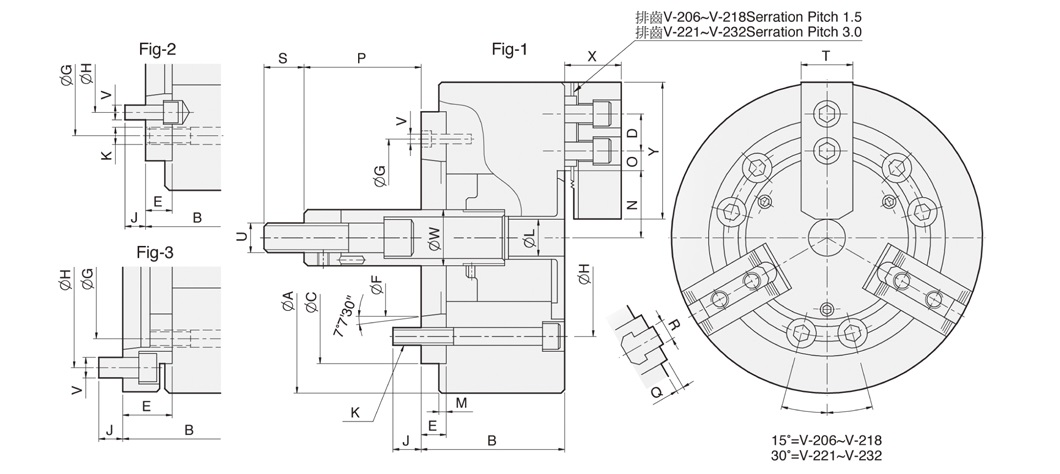

| DIM Model | A | B | C | Dmax. | H | J | K | L |
|---|---|---|---|---|---|---|---|---|
| 40"V-240 | 1005 | 180 | 520 | 502 | 463.6 | 108 | M24 | M52x1.5 |
| VIT-240 | 1005 | 180 | 520 | 502 | 463.6 | 108 | M24 | M52x1.5 |
| 50"V-250 | 1250 | 180 | 520 | 623 | 463.6 | 108 | M24 | M52x1.5 |
| VIT-250 | 1250 | 180 | 520 | 623 | 463.6 | 108 | M24 | M52x1.5 |
| VE-250 | 1250 | 180 | 520 | 623 | 463.6 | 108 | M24 | M52x1.5 |
| 63"V-263 | 1600 | 220 | 720 | 796 | 647.6 | 144 | M30 | M52x1.5 |
| VIT-263 | 1600 | 220 | 720 | 796 | 647.6 | 144 | M30 | M52x1.5 |
| VE-263 | 1600 | 220 | 720 | 796 | 647.6 | 144 | M30 | M52x1.5 |
| 79"VE-279 | 2000 | 238 | 720 | 996 | 647.6 | 159 | M30 | M52x1.5 |
| DIM Model | M | Nmax. | O | Pmax. | Pmin. | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|
| 40"V-240 | 8 | 457 | 30 | 59 | 2 | 4 | 7-M24 | 19 | 85 | 72 |
| VIT-240 | 8 | 457 | 30 | 59 | 2 | 4 | 7-M24 | 19 | 85 | 72 |
| 50"V-250 | 8 | 563 | 30 | 59 | 2 | 4 | 10-M24 | 19 | 85 | 72 |
| VIT-250 | 8 | 563 | 30 | 59 | 2 | 4 | 10-M24 | 19 | 85 | 72 |
| VE-250 | 8 | 563 | 30 | 59 | 2 | 4 | 10-M24 | 19 | 85 | 72 |
| 63"V-263 | 8 | 738 | 40 | 82 | 22 | 6 | 13-M24 | 22 | 110 | 72 |
| VIT-263 | 8 | 738 | 40 | 82 | 22 | 6 | 13-M24 | 22 | 110 | 72 |
| VE-263 | 8 | 738 | 40 | 82 | 22 | 6 | 13-M24 | 22 | 110 | 72 |
| 79"VE-279 | 8 | 914 | 40 | 100 | 40 | 6 | 17-M24 | 22 | 110 | 72 |
