| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MPV-100LA,MPV-130LA,MPV-160LA,MPV-200LA, etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MPV-LA MB-LA Free type super precision powerful vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | pneumatic machine vice, rotary vise for milling machine |
||

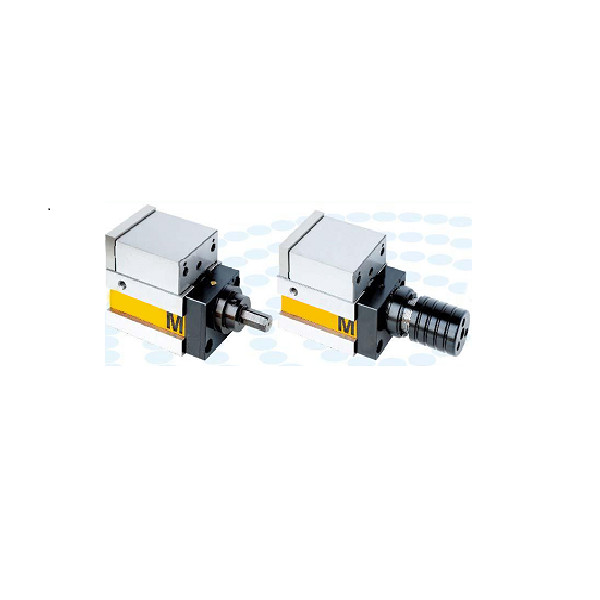

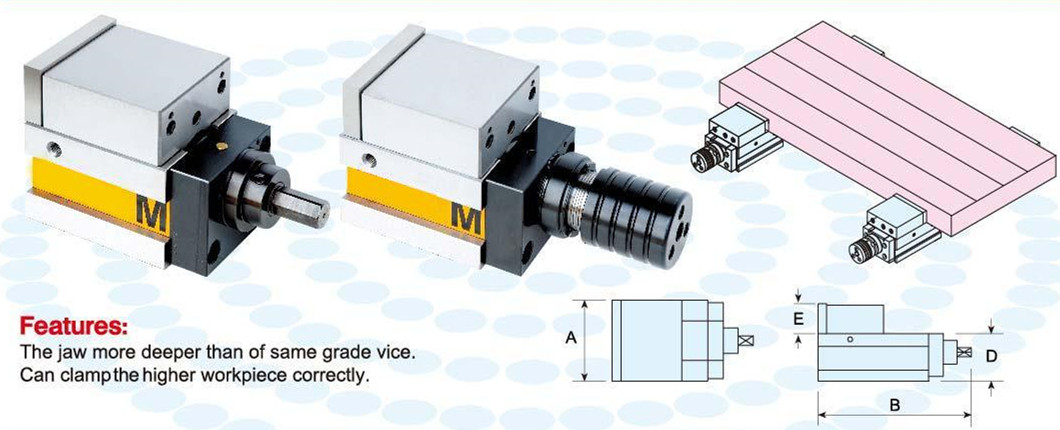

MPV-LA MB-LA Free type super precision powerful vise

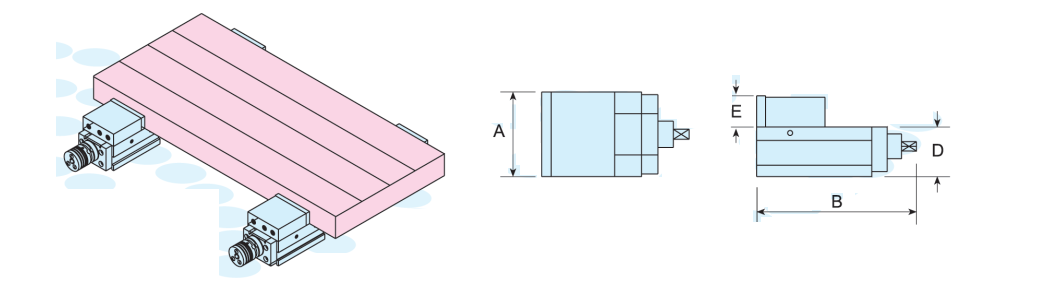

| MODEL | A | B | D | E | N.W. | Clamping force |
|---|---|---|---|---|---|---|
| MPV-100LA | 100 | 255 | 85 | 45 | 18kg | 4000kgf |
| MPV-130LA | 130 | 265 | 95 | 50 | 20kg | 4500kgf |
| MPV-160LA | 160 | 275 | 100 | 60 | 25kg | 5000kgf |
| MPV-200LA | 200 | 280 | 110 | 60 | 45kg | 5500kgf |
| MB-100LA | 100 | 215 | 85 | 45 | 18kg | - |
| MB-130LA | 130 | 220 | 95 | 50 | 20kg | - |
| MB-160LA | 160 | 230 | 100 | 60 | 25kg | - |
| MB-200LA | 200 | 255 | 110 | 60 | 45kg | - |
