| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MPV-100 2S,MPV-100 3S,MPV-100 4S,MPV-130 2S,MPV-130 3S,MPV-130 4S, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MPV-2S 3S 4S Angle lock powerful type vertical precision vice group | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | pneumatic machine vice, cnc milling vise |
||

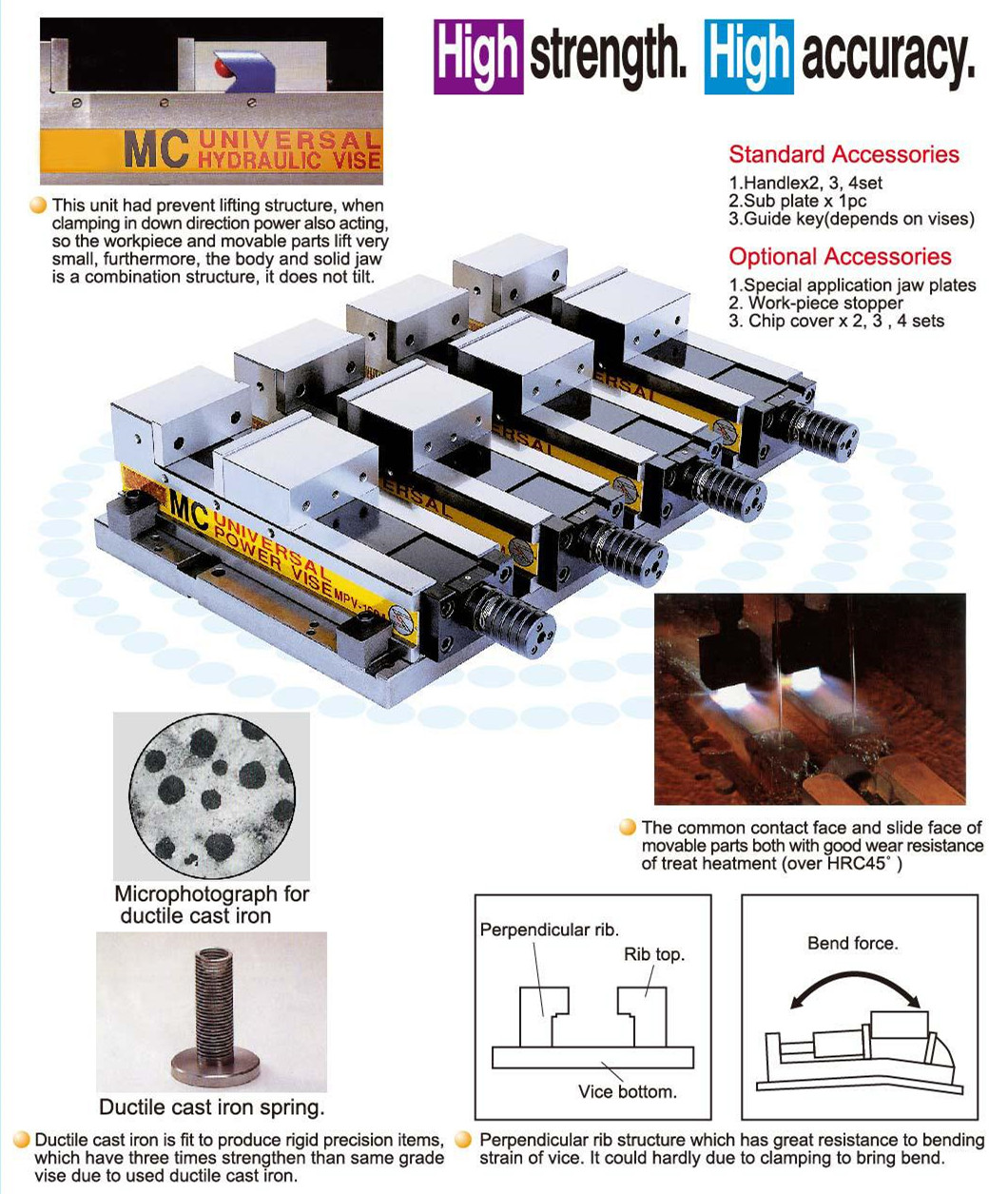

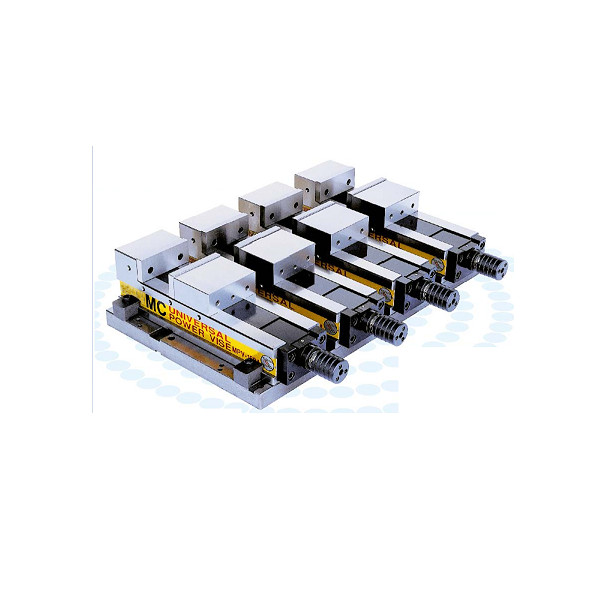

MPV-2S 3S 4S Angle lock powerful type vertical precision vice group

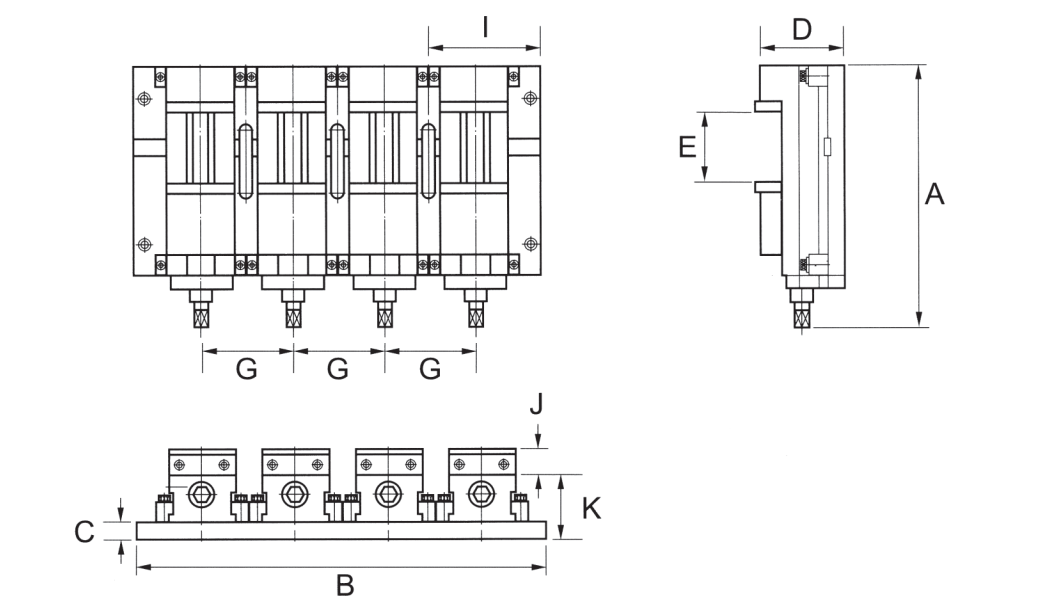

| MODEL | A | B | C | D | E | F | G | H | I | J | K | Clamping force |
| MPV-100 2S | 530 | 500 | 30 | 165 | 150 | 500 | 300 | 250 | 250 | 45 | 120 | 4000kgf |
| MPV-100 3S | 530 | 500 | 30 | 165 | 150 | 500 | 150 | 200 | 200 | 45 | 120 | 4000kgf |
| MPV-100 4S | 530 | 650 | 35 | 165 | 150 | 500 | 150 | 200 | 200 | 45 | 125 | 4000kgf |
| MPV-130 2S | 580 | 600 | 35 | 175 | 200 | 550 | 360 | 250 | 250 | 50 | 125 | 4500kgf |
| MPV-130 3S | 580 | 600 | 35 | 175 | 200 | 550 | 180 | 230 | 230 | 50 | 125 | 4500kgf |
| MPV-130 4S | 580 | 750 | 40 | 175 | 200 | 550 | 180 | 230 | 230 | 50 | 130 | 4500kgf |
| MPV-160 2S | 680 | 720 | 45 | 205 | 280 | 650 | 440 | 250 | 250 | 60 | 145 | 5000kgf |
| MPV-160 3S | 680 | 720 | 45 | 205 | 280 | 650 | 220 | 260 | 260 | 60 | 145 | 5000kgf |
| MPV-160 4S | 680 | 900 | 45 | 205 | 280 | 650 | 220 | 260 | 260 | 60 | 145 | 5000kgf |
| MPV-200 2S | 730 | 750 | 50 | 225 | 300 | 700 | 450 | 250 | 250 | 70 | 155 | 5500kgf |
| MPV-200 3S | 730 | 900 | 50 | 225 | 300 | 700 | 300 | 300 | 300 | 70 | 155 | 5500kgf |
| MPV-200 4S | 730 | 1200 | 50 | 225 | 300 | 700 | 300 | 300 | 300 | 70 | 155 | 5500kgf |
