| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MB-100 4VL,MB-130 4VL,MB-160 4VL,MB-200 4VL, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MB-4VL MHV-4VL MPV-4VL 4 set one unit vertical precision vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | pneumatic machine vice, cnc milling vise |
||

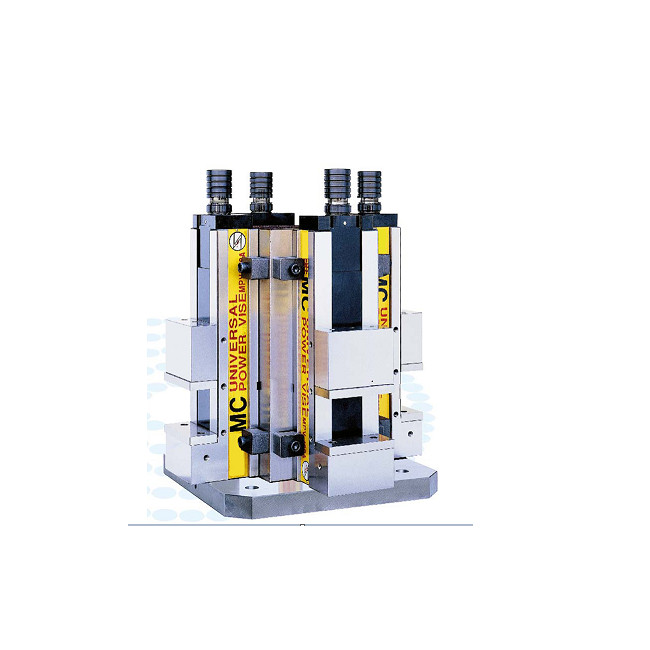

MB-4VL MHV-4VL MPV-4VL 4 set one unit vertical precision vise

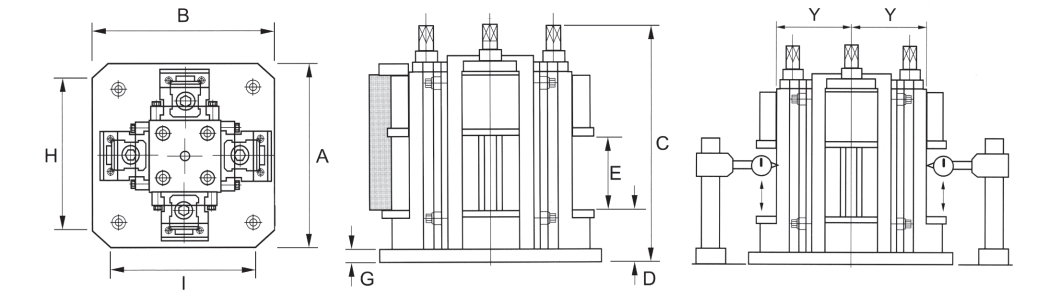

| MODEL | A | B | C | D | E | F | G | H | I | Clamping force |
| MB-100 4VL | 450 | 450 | 530 | 120 | 150 | 45 | 40 | 320 | 320 | - |
| MB-130 4VL | 500 | 500 | 580 | 125 | 200 | 50 | 40 | 400 | 400 | - |
| MB-160 4VL | 500 | 500 | 680 | 143 | 280 | 60 | 40 | 400 | 400 | - |
| MB-200 4VL | 600 | 600 | 730 | 148 | 300 | 70 | 40 | 500 | 500 | - |
| MHV-100 4VL | 450 | 450 | 570 | 120 | 145 | 45 | 40 | 320 | 320 | 4000kgf |
| MHV-130 4VL | 500 | 500 | 620 | 125 | 190 | 50 | 40 | 400 | 400 | 4500kgf |
| MHV-160 4VL | 500 | 500 | 720 | 143 | 265 | 60 | 40 | 400 | 400 | 5000kgf |
| MHV-200 4VL | 600 | 600 | 770 | 148 | 300 | 70 | 40 | 500 | 500 | 5500kgf |
| MPV-100 4VL | 450 | 450 | 570 | 120 | 150 | 45 | 40 | 320 | 320 | 4000kgf |
| MPV-130 4VL | 500 | 500 | 620 | 125 | 200 | 50 | 40 | 400 | 400 | 4500kgf |
| MPV-160 4VL | 500 | 500 | 720 | 143 | 280 | 60 | 40 | 400 | 400 | 5000kgf |
| MPV-200 4VL | 600 | 600 | 770 | 148 | 300 | 70 | 40 | 500 | 500 | 5500kgf |
