| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MPV-160LS,MPV-200LS,MPV-160L,MPV-200L, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

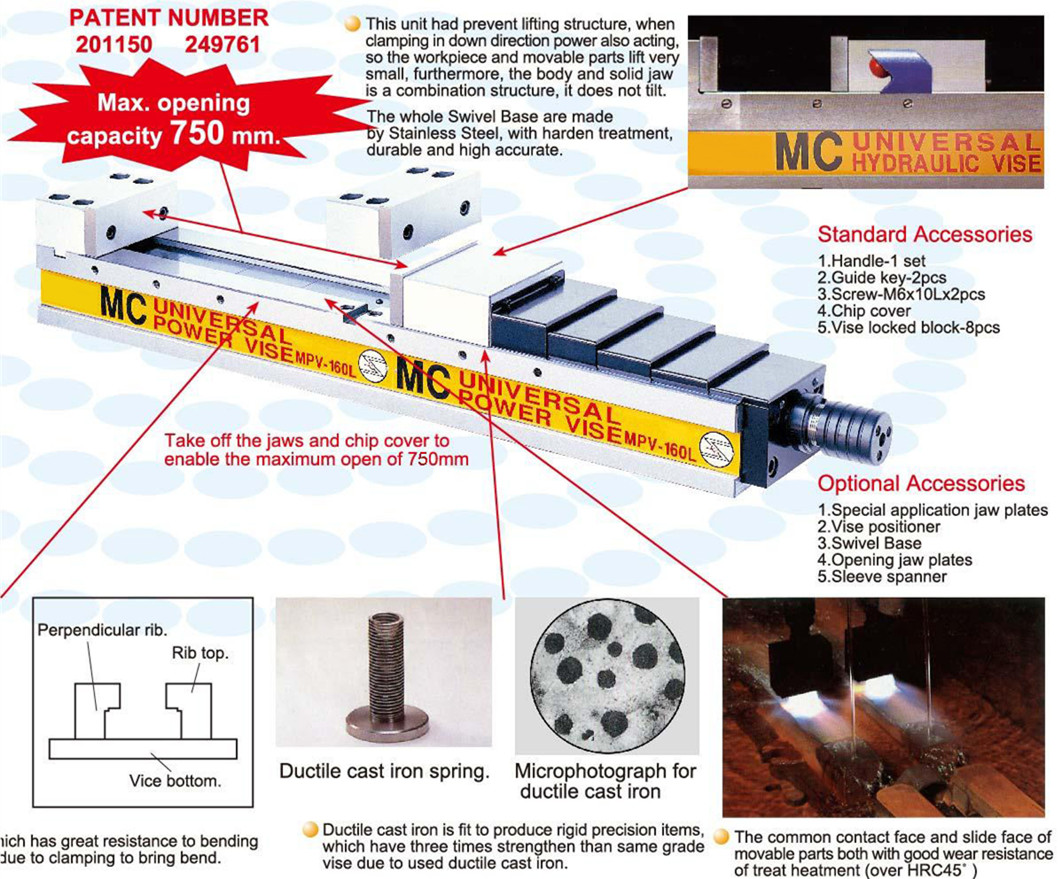

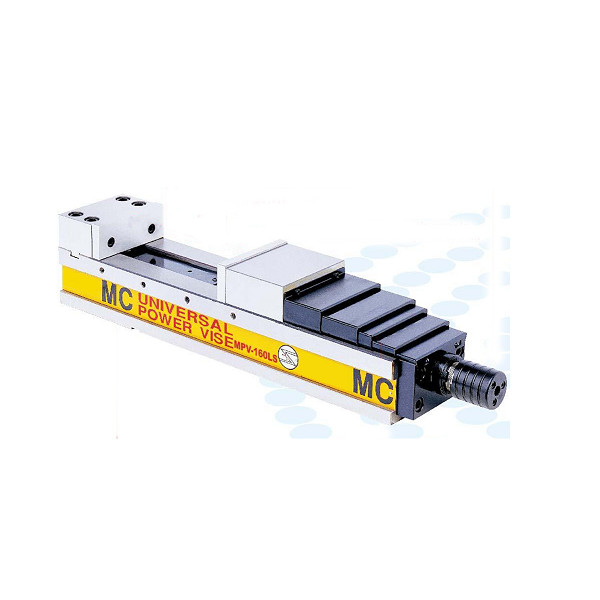

| Product Name: | Super Long Universal Powerful Type Precision Vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | rotary vise for milling machine,cnc milling vise |
||

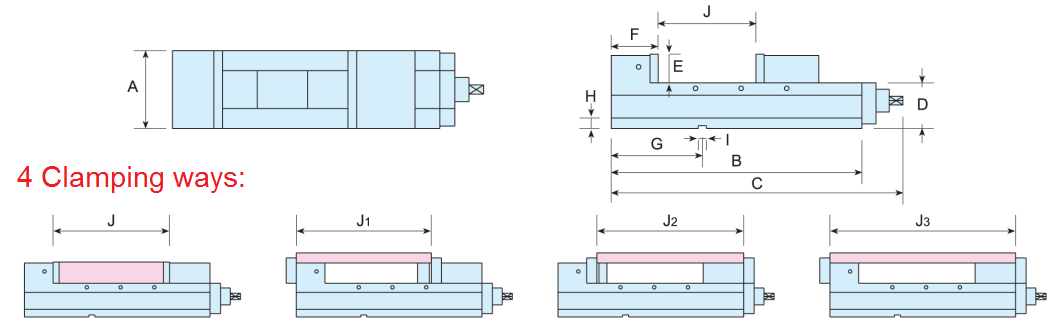

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W. | .G.W | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

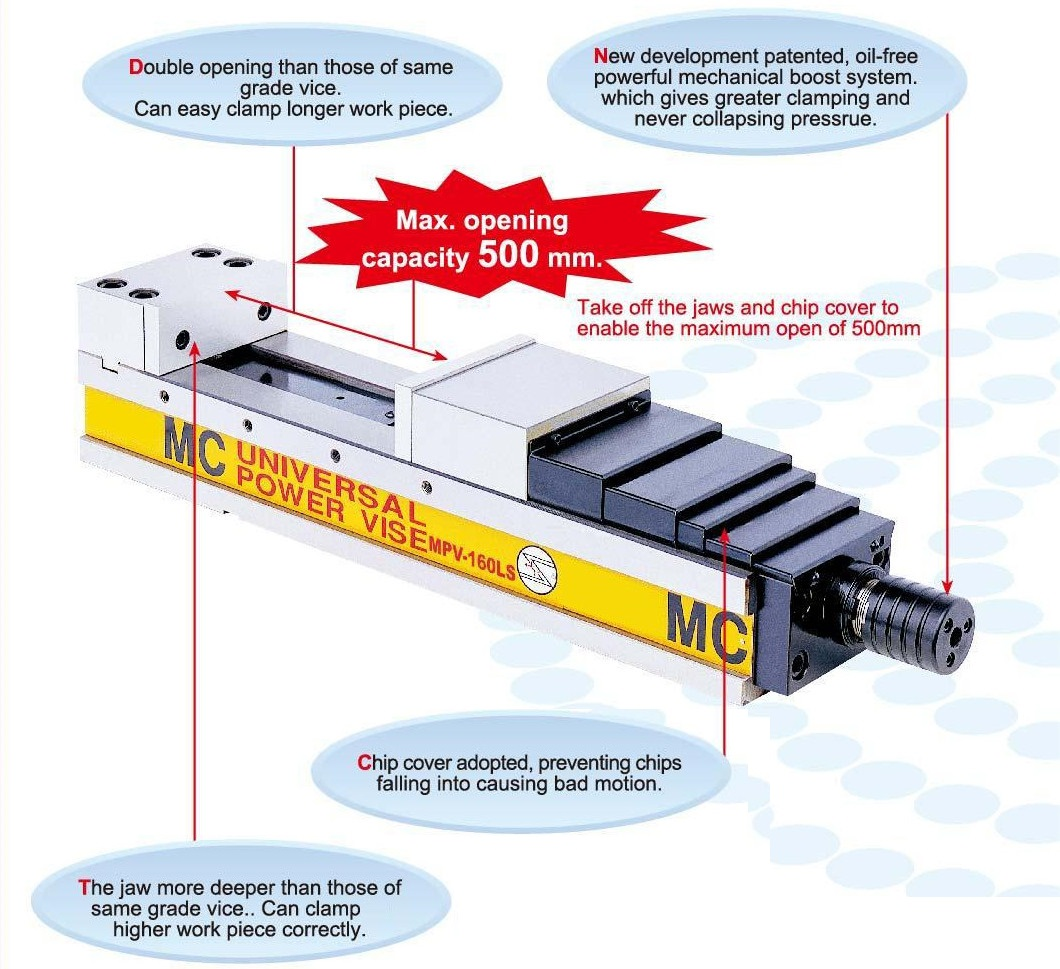

| MPV-160LS | 160 | 725 | 860 | 105 | 60 | 103 | 100 | 23 | 18 | 500 | 580 | 620 | 720 | 80kg | 91kg | 4400kgf |
| MPV-200LS | 200 | 835 | 970 | 110 | 60 | 108 | 220 | 23 | 18 | 600 | 690 | 730 | 830 | 100kg | 115kg | 5500kgf |
| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W. | G.W. | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPV-160L | 160 | 1000 | 1130 | 105 | 60 | 103 | 100 | 23 | 18 | 750 | 850 | 890 | 1000 | 90kg | 108kg | 4400kgf |
| MPV-200L | 200 | 1100 | 1230 | 110 | 60 | 108 | 220 | 23 | 18 | 840 | 940 | 990 | 1100 | 130kg | 145kg | 5500kgf |
