| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | VIP-160S,MPV-160S, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

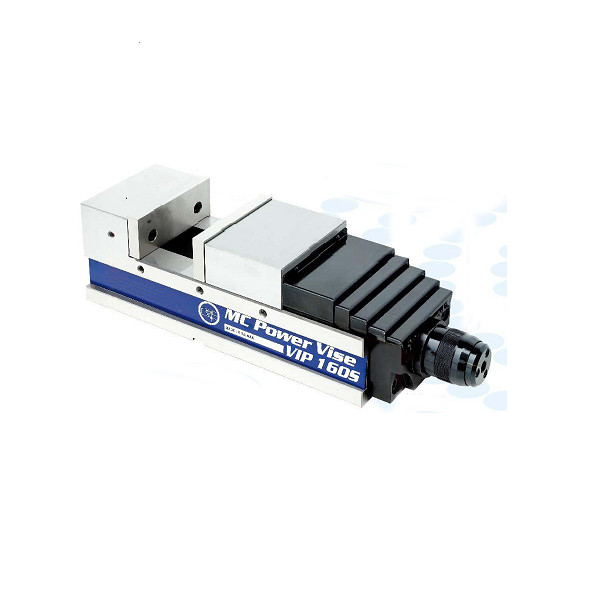

| Product Name: | Constant Pressure Super Precision Vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | rotary vise for milling machine,cnc milling vise |
||

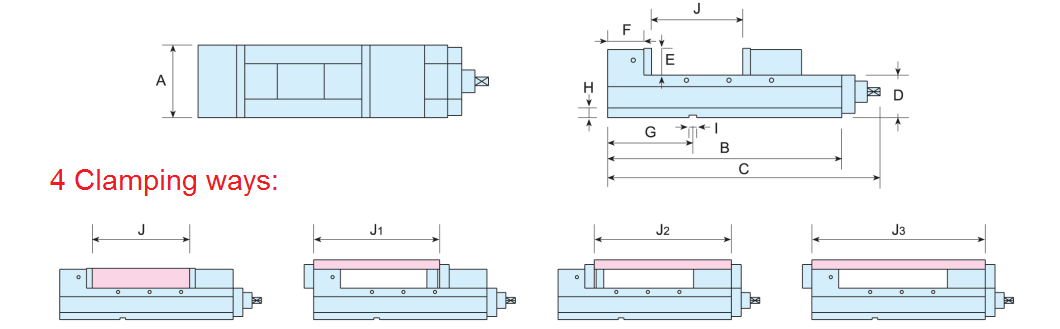

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W | G.W | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VIP-160S | 160 | 495 | 620 | 105 | 55 | 85 | 150 | 23 | 18 | 240 | 325 | 395 | 470 | 57kg | 59kg | 5500kgf |
| MPV-160S | 160 | 495 | 630 | 105 | 55 | 85 | 150 | 23 | 18 | 240 | 325 | 395 | 470 | 57kg | 59kg | 5000kgf |
