| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | VCP-100,VCP-130,VCP-160,VCP-200, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | VCP Mechanical type super precision vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | rotary vise for milling machine, cnc milling vise |
||

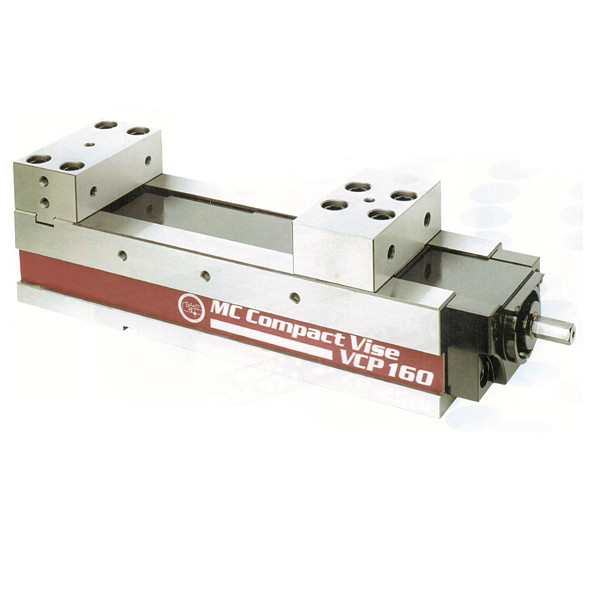

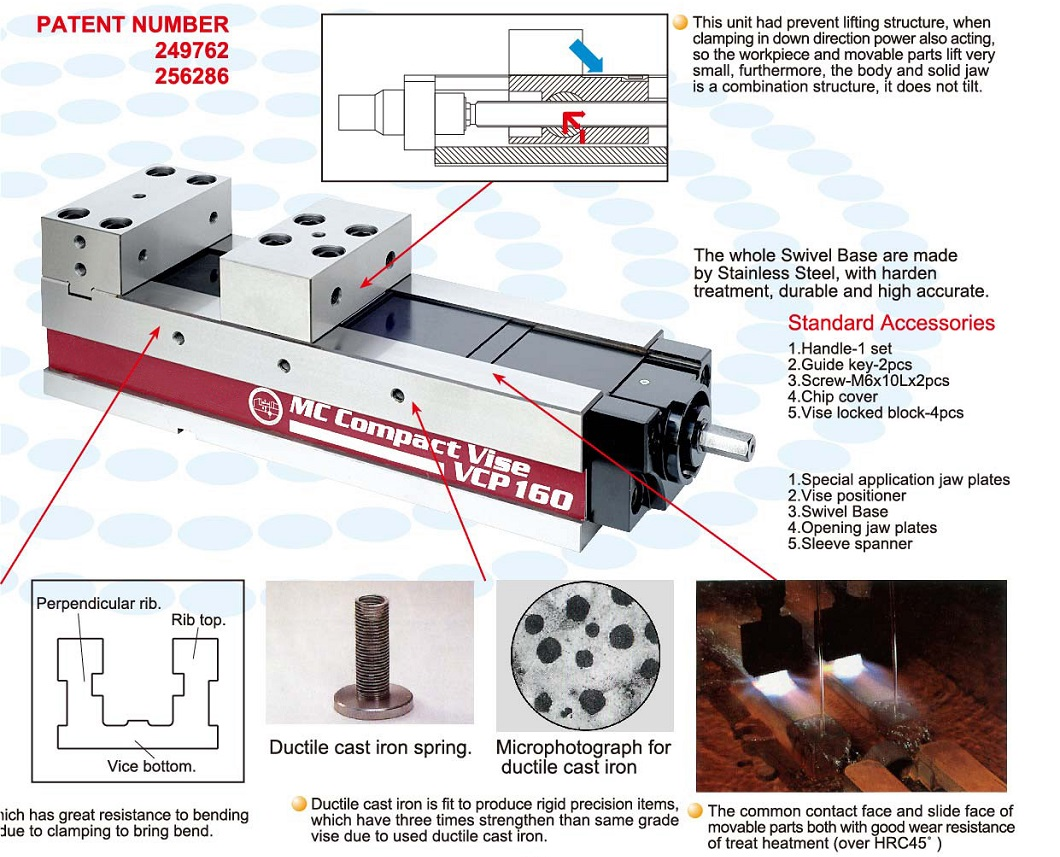

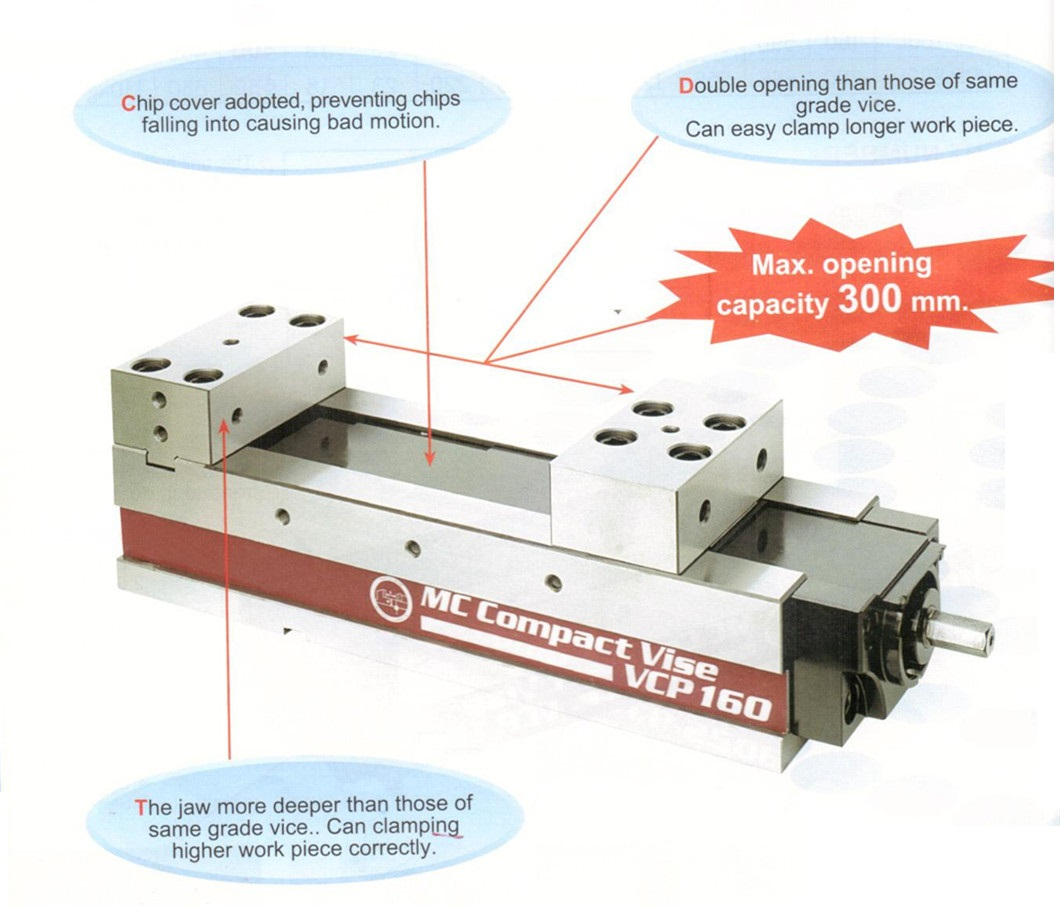

VCP Mechanical type super precision vise

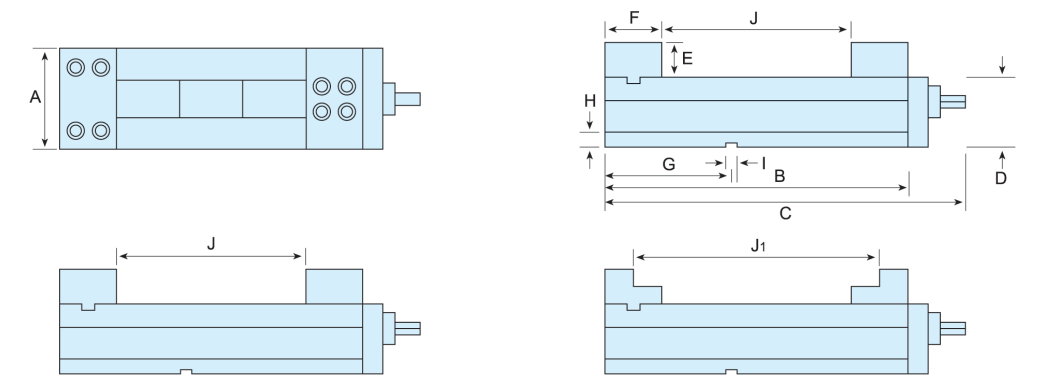

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | N .W. | G.W. | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCP-100 | 100 | 310 | 400 | 95 | 45 | 70 | 110 | 23 | 18 | 150 | 225 | 25kg | 28kg | - |
| VCP-130 | 130 | 410 | 500 | 100 | 50 | 80 | 135 | 23 | 18 | 250 | 330 | 43kg | 46kg | - |
| VCP-160 | 160 | 490 | 580 | 110 | 55 | 85 | 150 | 23 | 18 | 300 | 385 | 57kg | 60kg | - |
| VCP-200 | 200 | 565 | 655 | 120 | 60 | 100 | 220 | 23 | 18 | 350 | 450 | 97kg | 100kg | - |
