| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 5",6",8",10",12",15",24", |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union, T/T |
| Supply Ability: | 1000 SETS/M |
| Product Name: | ADAPTER PLATES ON SHORT TAPER SPINDLE NOSES DIN 55026 FOR LATHE CHUCK MOUNTING | Clamping Nut And Wrench: | Steel |
|---|---|---|---|
| Usage: | Accessorires For Chuck Mouting | Feature: | High Precision/Long Lifetime/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| High Light: | power operated chucks,power collet chuck |
||

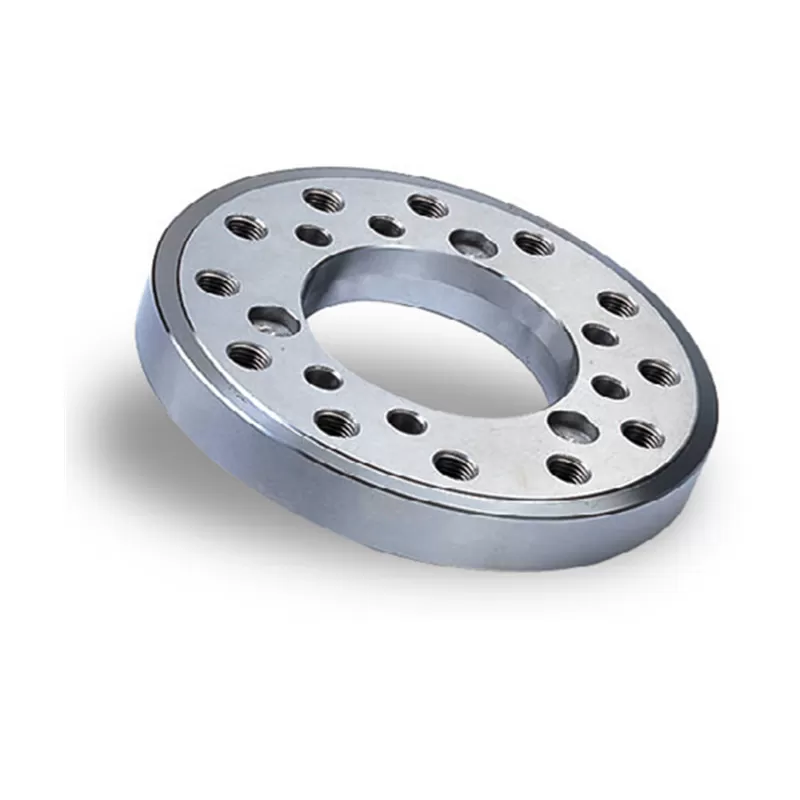

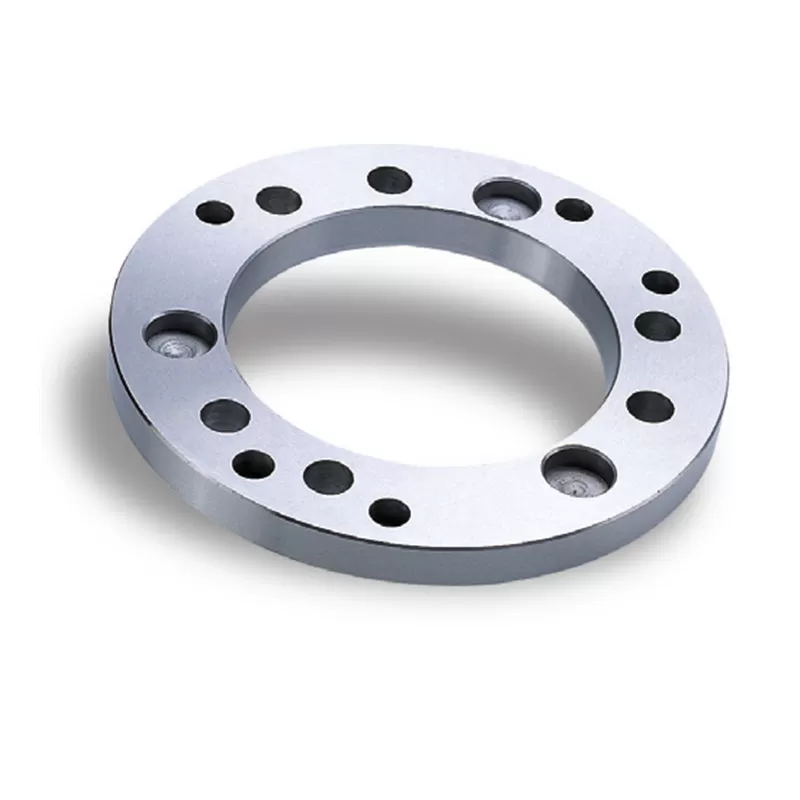

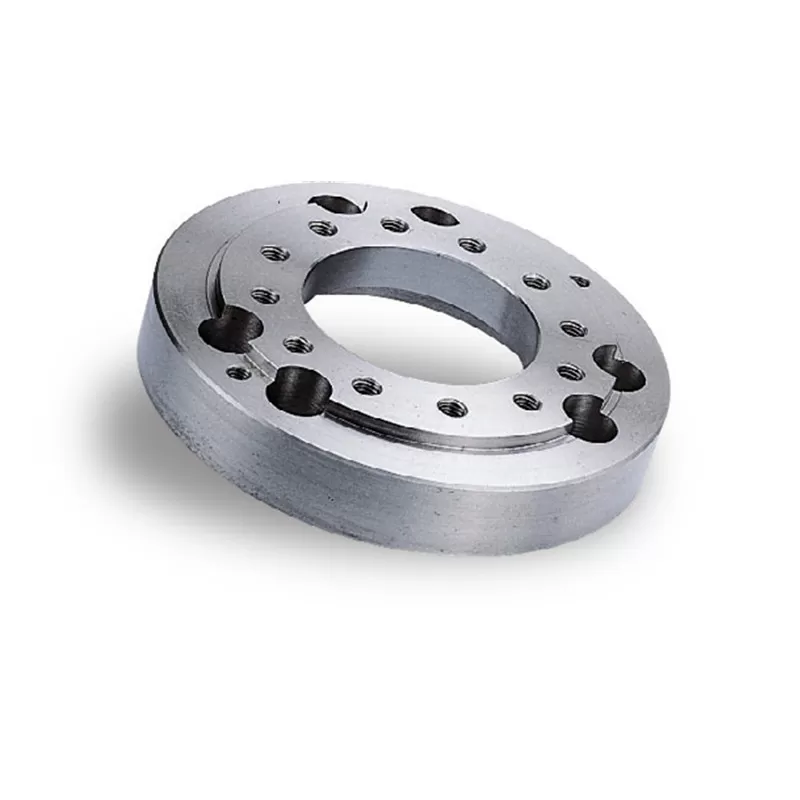

MOUNTING ADAPTER PLATES ON SHORT TAPER SPINDLE NOSES DIN 55026 FOR LATHE CHUCK MOUNTING
Brand:NTH

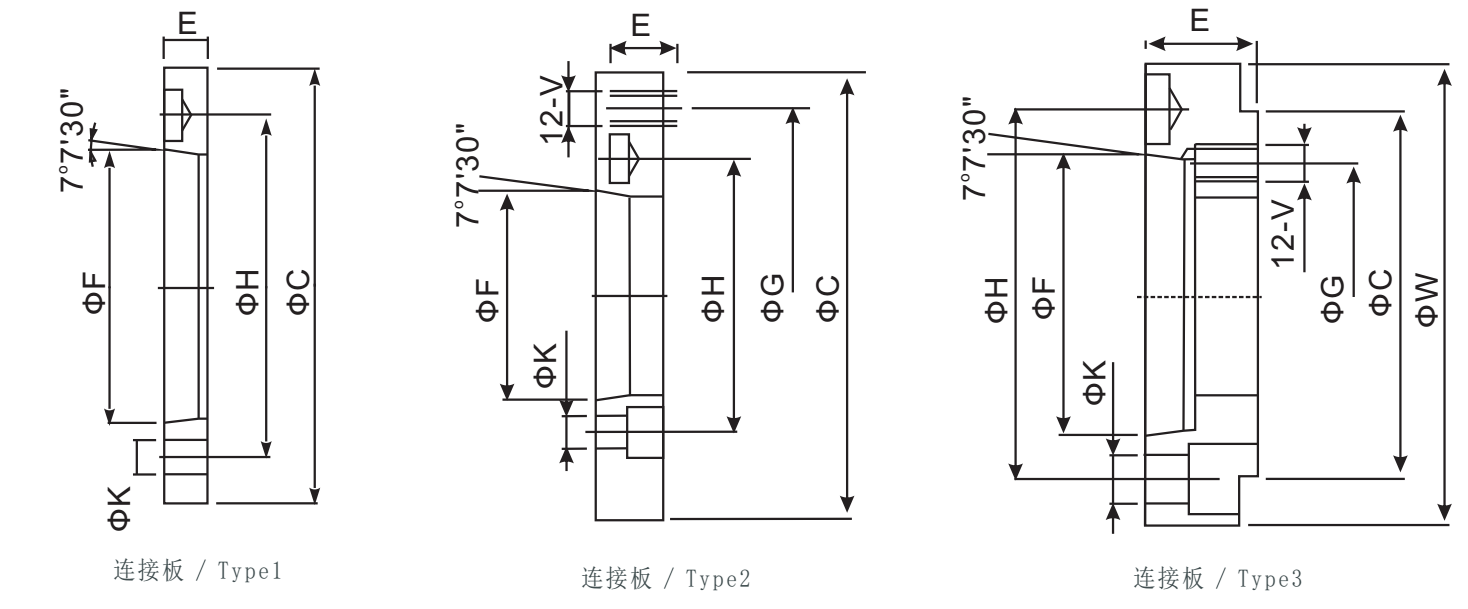

Type1:
| Model | Spindle nose | C | F | H | K | E |
|---|---|---|---|---|---|---|
| 5"(Thru hole chuck) | A4 | 110 | 63.513 | 82.55 | 3-11 | 15 |
| 6" | A5 | 140 | 82.563 | 104.78 | 6-11 | 15 |
| 8" | A6 | 170 | 106.375 | 133.35 | 6-13 | 17 |
| 10" | A8 | 220 | 139.719 | 171.45 | 6-17 | 18 |
| 15" | A11 | 300 | 196.869 | 235 | 6-21 | 22 |
| 24" | A15 | 380 | 285.775 | 330.2 | 6-25 | 27 |
| 32" | A11 | 300 | 196.869 | 235 | 6-21 | 22 |
Type2:
| Model | Spindle nose | C | F | H | K | G | V | E |
|---|---|---|---|---|---|---|---|---|
| 6" | A4 | 140 | 63.513 | 82.55 | 11 | 104.78 | M10 | 20 |
| 8" | A5 | 170 | 82.563 | 104.78 | 11 | 133.35 | M12 | 23 |
| 10" | A6 | 220 | 106.375 | 133.35 | 13 | 171.45 | M16 | 25 |
| 15" | A8 | 300 | 139.719 | 171.45 | 17 | 235 | M20 | 33 |
| 20" | A11 | 380 | 196.869 | 235 | 21 | 330.2 | M24 | 41 |
| 24" | A11 | 520 | 196.869 | 235 | 21 | 463.6 | M24 | 45 |
| 63" | A20 | 720 | 412.775 | 463.6 | 27 | 647.6 | M30 | 50 |
Type3:
| Model | Spindle nose | C | F | H | K | G | V | W | E |
|---|---|---|---|---|---|---|---|---|---|
| 5"(non thru chuck) | A4 | 80 | 63.513 | 82.55 | 11 | 100 | M8 | 120 | 26.5 |
| 5" | A5 | 110 | 82.563 | 104.78 | 11 | 82.55 | M10 | 128 | 32 |
| 6" | A6 | 140 | 106.375 | 133.35 | 13 | 104.78 | M10 | 168 | 35 |
| 8" | A8 | 170 | 139.719 | 171.45 | 17 | 133.35 | M12 | 208 | 40 |
| 12" | A11 | 220 | 196.869 | 235 | 21 | 171.45 | M16 | 278 | 50 |
| 15" | A15 | 300 | 285.775 | 330.2 | 25 | 235 | M20 | 378 | 57 |
| 24" | A20 | 380 | 412.775 | 463.6 | 26 | 330.2 | M24 | 520 | 58 |
