| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | FR-04,FR-06,FR-08 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | FR FORMING RINGS FOR SOFT JAWS OF SUPER PRECISION CHUCKS | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision/Abrision Proof | |
| Usage: | Adjusting The High Accuracy Of Chuck During Machining Process | Service: | ODM/OEM Is Available |
| Highlight: | adjustable boring ring, manual boring tool |
||

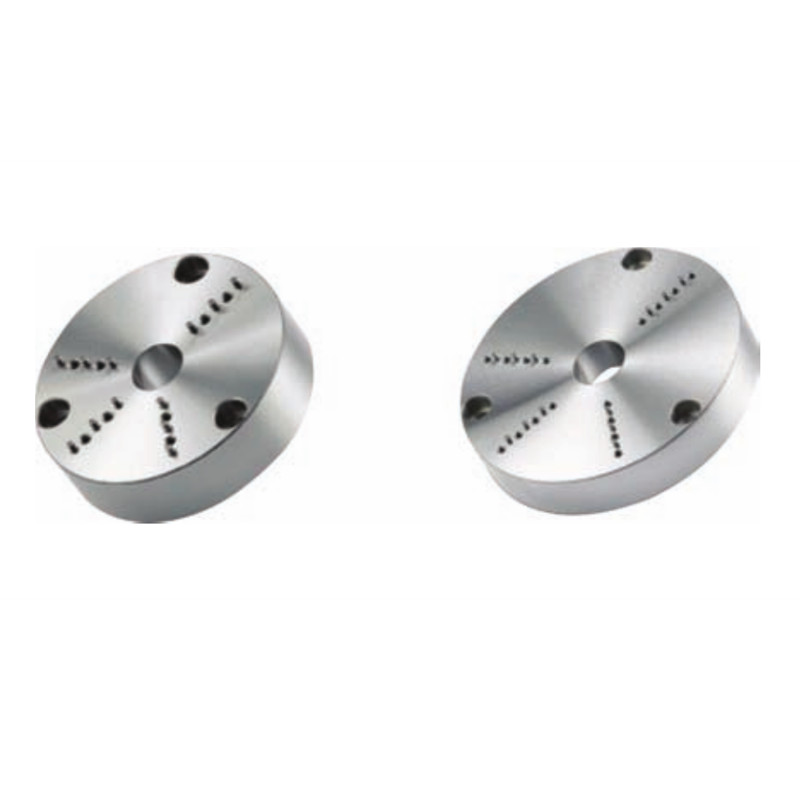

FR FORMING RINGS FOR SOFT JAWS OF SUPER PRECISION CHUCKS
FR FORMING RINGS (FOR SOFT JAWS OF SUPER PRECISION CHUCKS)

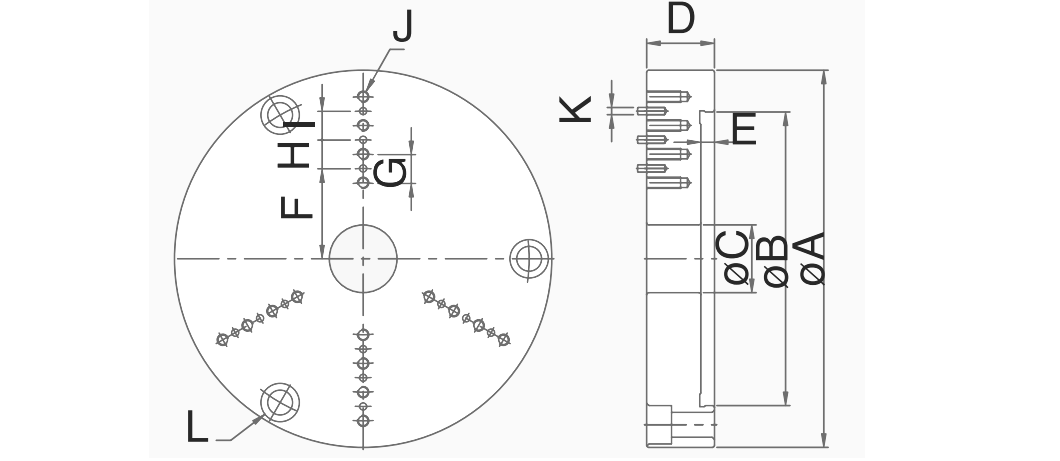

Size table
| Model | A | B | C | D | E | F | G | H | I | J | K | L | Weight kg |
| FR-04 | 112 | 80 | 22 | 30 | 6 | 21 | 12.7 | 12.7 | 12.7 | 6-M5*0.8P | 9-Ø3.175 | 3-M8*1.25P | 1.9 |
| FR-06 | 167 | 130 | 30 | 30 | 6 | 40 | 12.7 | 12.7 | 12.7 | 12-M5*0.8P | 9-Ø3.175 | 3-M10*1.5P | 4.3 |
| FR-08 | 203 | 160 | 54 | 35 | 6 | 66 | 25.4 | 25.4 | 6-M10*1.5P | 6-Ø6.35 | 3-M10*1.5P | 7.2 |
Subject to technical changes
