| Product Name: | 3MF 3 JAW SELF CENTERING MANUAL CHUCK OEM / ODM | Material: | Cast Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | 3MF SELF CENTERING MANUAL CHUCK, 3 JAW SELF CENTERING MANUAL CHUCK, ODM SELF CENTERING MANUAL CHUCK |
||

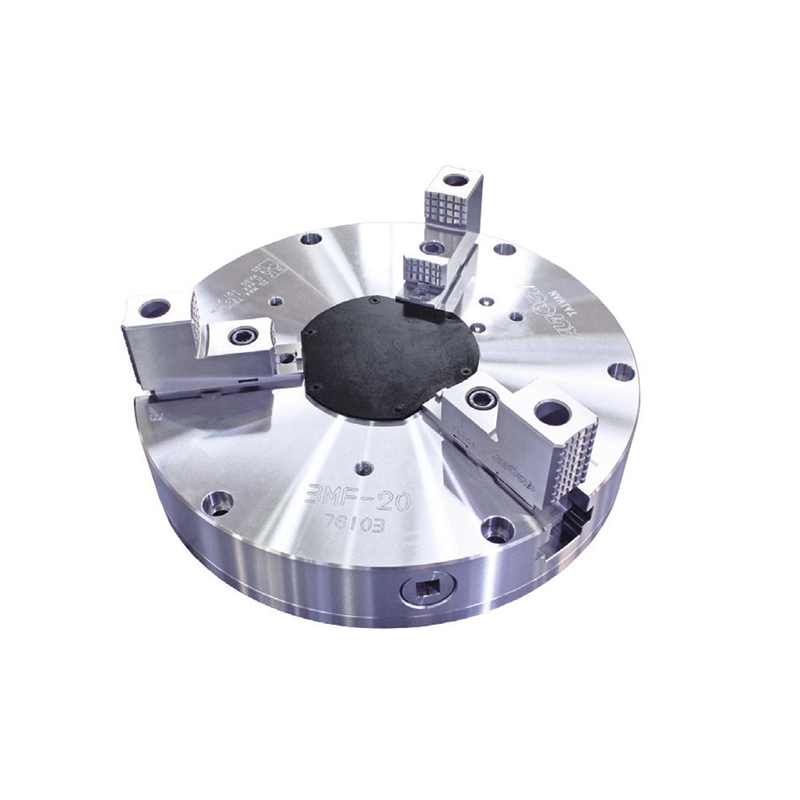

3MF 3 JAW SELF CENTERING MANUAL CHUCK OEM / ODM
Brand:NTH
Special thin and light weight design for the 5-axis indexing plate and the milling and turning machines, it can increase the z-axis machining range.
High resistant to the turning chips as the center hole cover ,ensure the chuck has a long service life and keep high accuracy.
3MF series chucks should not installed to the vertical or horizontal lathes, unless there is a supporting plate with high rigidity and strength.
(Size unit: mm)
| Model | Jaw stroke (Dia) (mm) | Chucking Dia Max. (mm) | Chucking Dia Min. (mm) |
| 3MF-20 | 80 | 500 | 142 |
| Model | Max. allowable torque N．m (kgf．m) | Max. clamping force kN (kgf) | Max. speed min-1 (r.p.m.) | Weight (kg) |
| 3MF-20 | 170(17.3) | 71.2(7300) | 1150 | 121 |

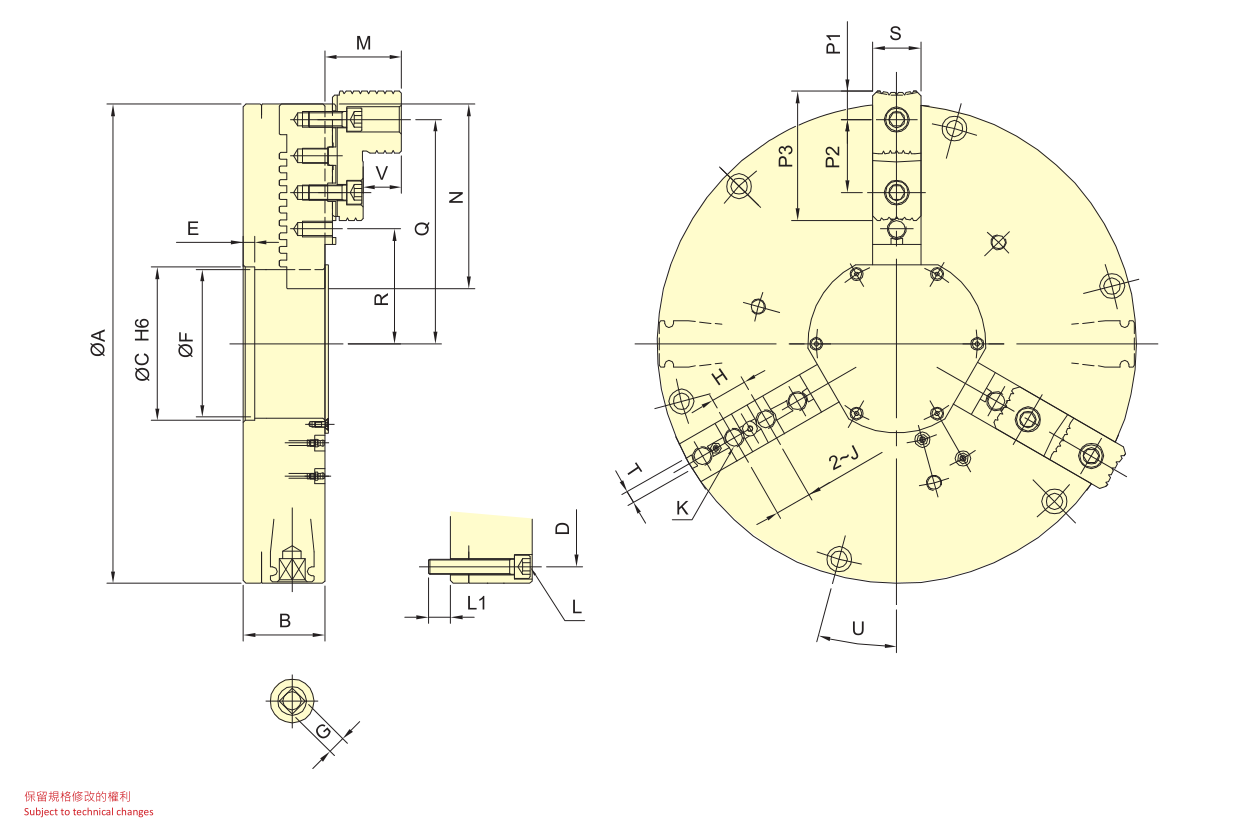

| Model | A | B | C(H6) | D | E | F | G | H | J(H7) | K | L | L1 | M |
| 3MF-20 | 500 | 85 | 160 | 465 | 12 | 155 | ☐19 | 38.1 | 19.03 | 4~M16 | 6~M16 | 23 | 80 |
| Model | N | P1 | P2 | P3 | Q max | Q min | R max | R min | S | T(h8) | U | V | Y |
| 3MF-20 | 192.5 | 29.5 | 76.2 | 135 | 254 | 214 | 139.7 | 99.7 | 50 | 12.7 | 15° | 40 | 30 |
Subject to technology changes without prior information
Non-standard requirements can be made
