| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | PS6 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | PS6 SERIES 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS | Material: | Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | 6-JAW PRECISION SELF-CENTERING CHUCKS, 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS |
||

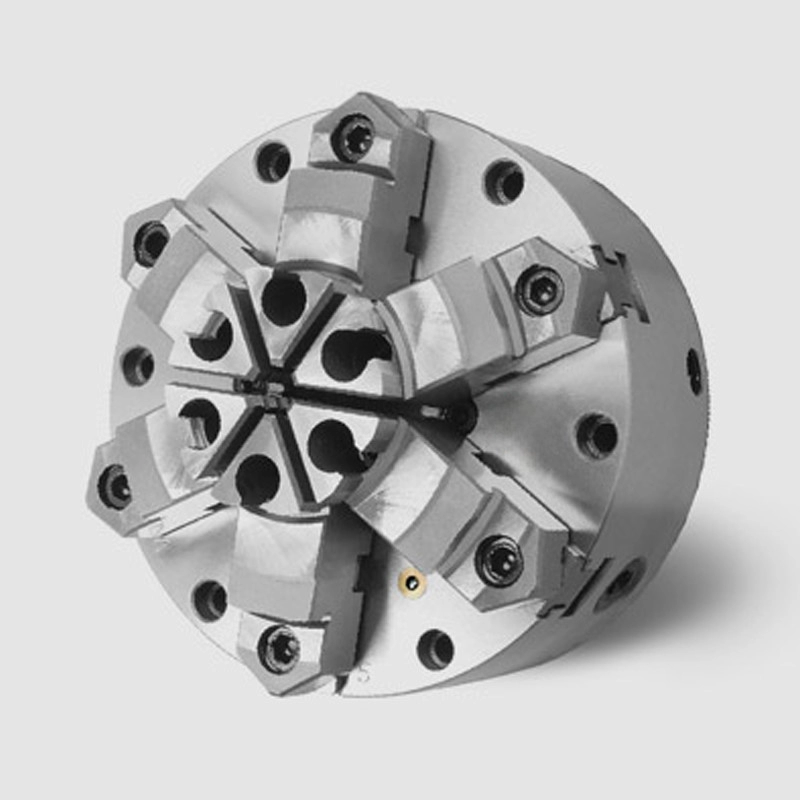

PS6 SERIES 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS
Brand:NTH
Model: PS6 SERIES 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS
Suitable for the production of parts with the highest concentricity.
Widely used, especially for grinding machines, dividing heads and lathes.
(unit: mm)

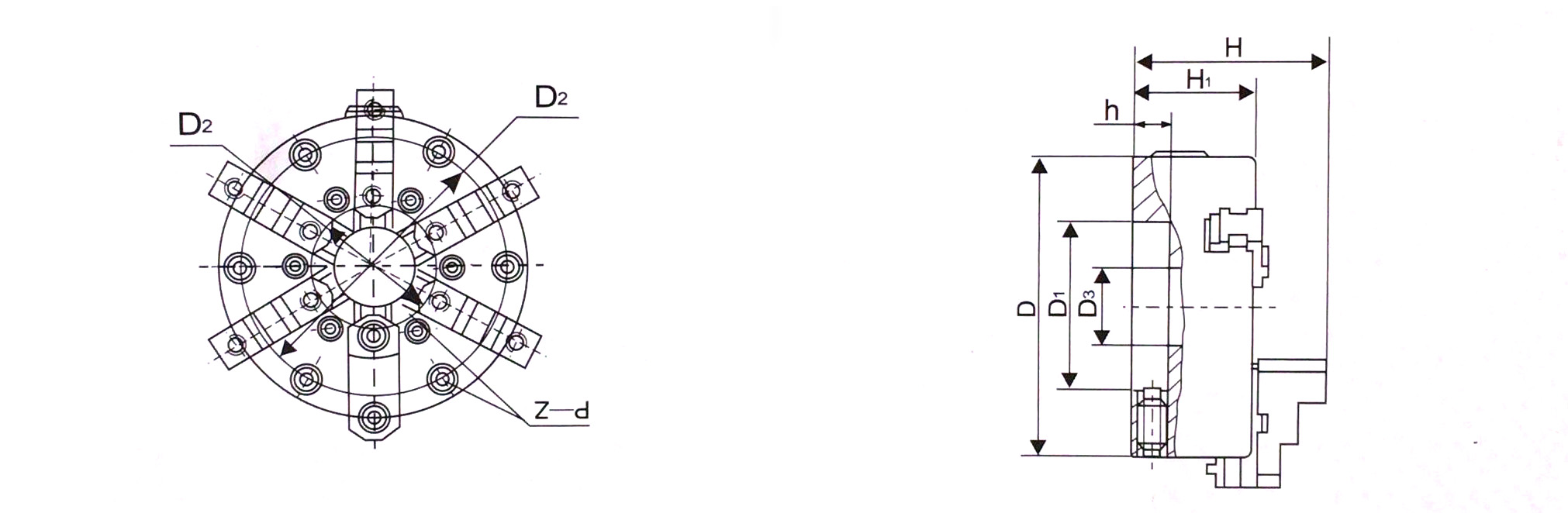

| Chuck Size | D | D1 | D2 | D3 | H | H1 | h | z-d | Solid Jaws Steel body
| 2-Piece Jaws Steel body
|
| 125 | 127 | 60.33 | 112.73 | 33 | 95.7 | 56 | 16.7 | 3-M6 | PS6-125 | PS6-125A |
| 5 in. | 5 | 2.375 | 4.438 | 1.299 | 3.768 | 2.205 | 0.657 | 3-1/4-20 | PS6-5" | PS6-5"A |
| 160 | 152.5 | 79.37 | 135.7 | 39 | 98.6 | 59 | 17.5 | 6-M6 | PS6-160 | PS6-160A |
| 6 in. | 6 | 3.125 | 5.343 | 1.535 | 3.882 | 2.323 | 0.689 | 6-1/4-20 | PS6-6" | PS6-6"A |
| 200 | 210 | 120.65 | 190.5 | 57.5 | 132.2 | 79.3 | 19.1 | 6-M10 | PS6-200 | PS6-200A |
| 8 in. | 8.27 | 4.75 | 7.5 | 2.264 | 5.206 | 3.122 | 0.752 | 6-3/8-16 | PS6-8" | PS6-8"A |
| 250※ | 254 | 161.9 | 111.13 | 72 | 153.8 | 88.7 | 20.4 | 6-M12 | PS6-250 | PS6-250A |
| 10 in.※ | 10 | 6.374 | 4.375 | 2.835 | 6.056 | 3.492 | 0.803 | 6-7/16-14 | PS6-10" | PS6-10"A |
| 315※ | 305 | 200.79 | 133.35 | 83 | 166.9 | 101.1 | 20.4 | 6-M12 | PS6-335 | PS6-335A |
| 12 in.※ | 12 | 7.905 | 5.25 | 3.268 | 6.569 | 3.98 | 0.803 | 6-1/2-13 | PS6-12" | PS6-12"A |
| 380※ | 381 | 299.237 | 171.45 | 108 | 223.5 | 136.2 | 27 | 6-M16 | PS6-380 | PS6-380A |
| 15 in.※ | 15 | 11.781 | 6.75 | 4.252 | 8.799 | 5.362 | 1.063 | 6-5/8-11 | PS6-15" | PS6-15"A |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
