| Product Name: | High Precision Fixture SI 3 Jaw Combination Manual Chuck For Stable Gripping | Material: | Cast Iron |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | 3-Jaw Combination Manual Chuck, High Precision Fixture Manual Chuck, Stable Gripping Manual Chuck |
||

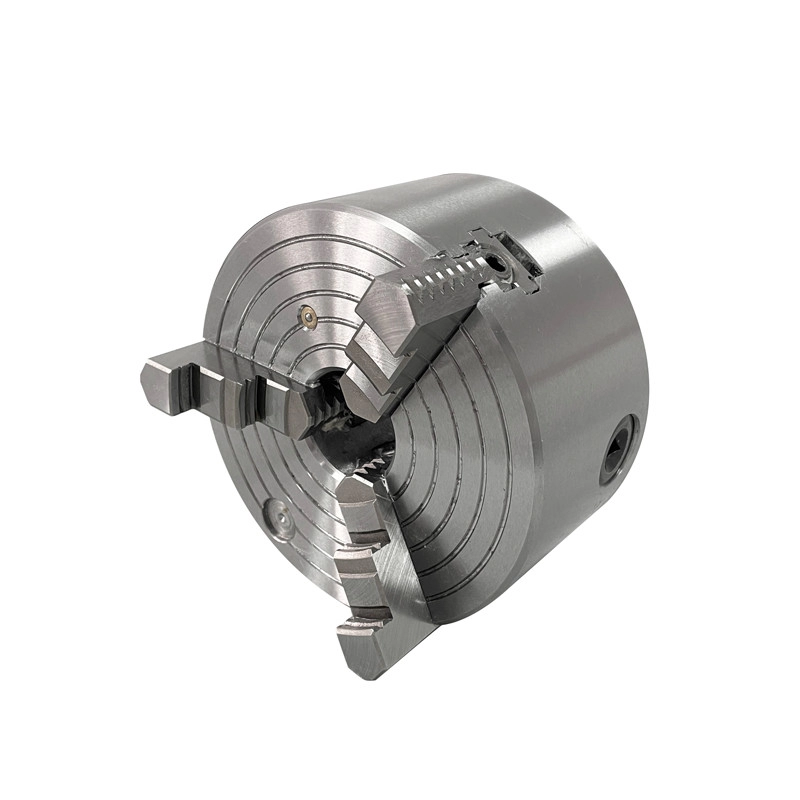

High Precision Fixture SI 3 Jaw Combination Manual Chuck For Stable Gripping
Brand:NTH
It's suitable for the lathe machine, rotary table or CNC machine center and so on;
It can work for regular or irregular workpiece without changingthe chuck.
With gripping function of both scroll chuck and independentmovement chuck.
Back mounting hole design, and front mounting is available.
Production Catalogue Download: SI 3 JAW PDF.pdf

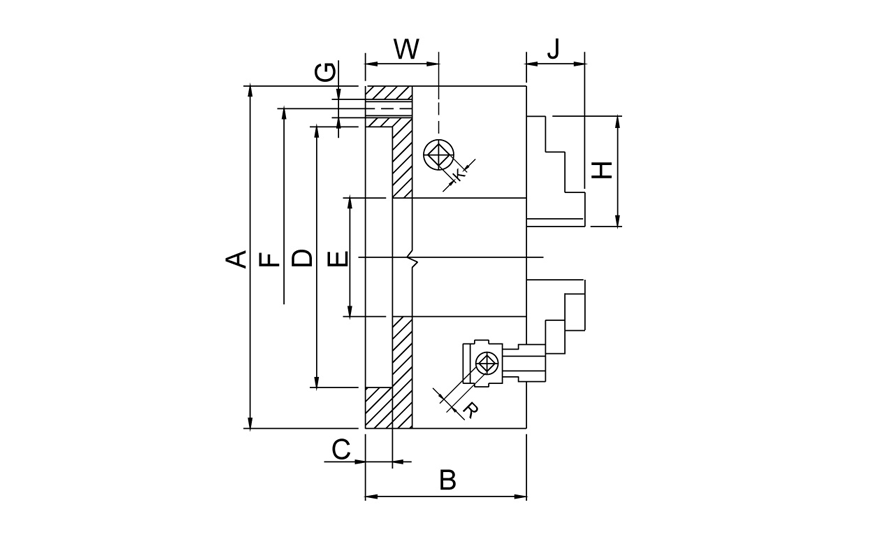

(unit: mm)
MODEL/ SPEC | A | B | C | D | E | F | G |
| SI-160 | 160 | 82 | 4 | 125 | 42 | 140 | 3-M10 |
| SI-200 | 200 | 86 | 4 | 160 | 55 | 176 | 3-M10 |
| SI-250 | 250 | 101 | 5 | 200 | 76 | 224 | 3-M12 |
| SI-315 | 315 | 118 | 5 | 260 | 103 | 286 | 3-M16 |
| SI-400 | 400 | 124 | 6 | 330 | 136 | 362 | 3-M16 |
| SI-500 | 500 | 145 | 6 | 420 | 190 | 458 | 3-M16 |
| SI-630 | 630 | 160 | 7 | 545 | 252 | 586 | 3-M16 |
| SI-800 | 800 | 200 | 10 | 710 | 267 | 760 | 3-M20 |
| SI-1000 | 1000 | 236 | 10 | 910 | 460 | 950 | 3-M24 |
| SI-1250 | 1250 | 241 | 10 | 1000 | 560 | 1100 | 3-M30 |
MODEL/ SPEC | H | J | K | R | W | RPM MAX |
| SI-160 | 69 | 28.5 | 11 | 6 | 22.3 | 3200 |
| SI-200 | 85 | 31 | 11 | 8 | 26 | 3000 |
| SI-250 | 91 | 33 | 14 | 8 | 29.3 | 2500 |
| SI-315 | 125 | 42 | 14 | 10 | 32 | 2000 |
| SI-400 | 145 | 58 | 17 | 10 | 36 | 1500 |
| SI-500 | 180 | 61 | 19 | 12 | 43.5 | 1000 |
| SI-630 | 225 | 72 | 19 | 12 | 48.5 | 750 |
| SI-800 | 245 | 67 | 19 | 17 | 57.5 | 600 |
| SI-1000 | 245 | 88 | 24 | 19 | 67 | 380 |
| SI-1250 | 245 | 88 | 24 | 19 | 72 | 200 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
