| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SCA-130-1,SCA-130-2 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | Stable 3 Jaw Self Centering Chuck With High Precision Design | Material: | Cast Iron |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | Stable Self Centering Chuck, High Precision Self Centering Chuck, 3 Jaw Self Centering Chuck |
||

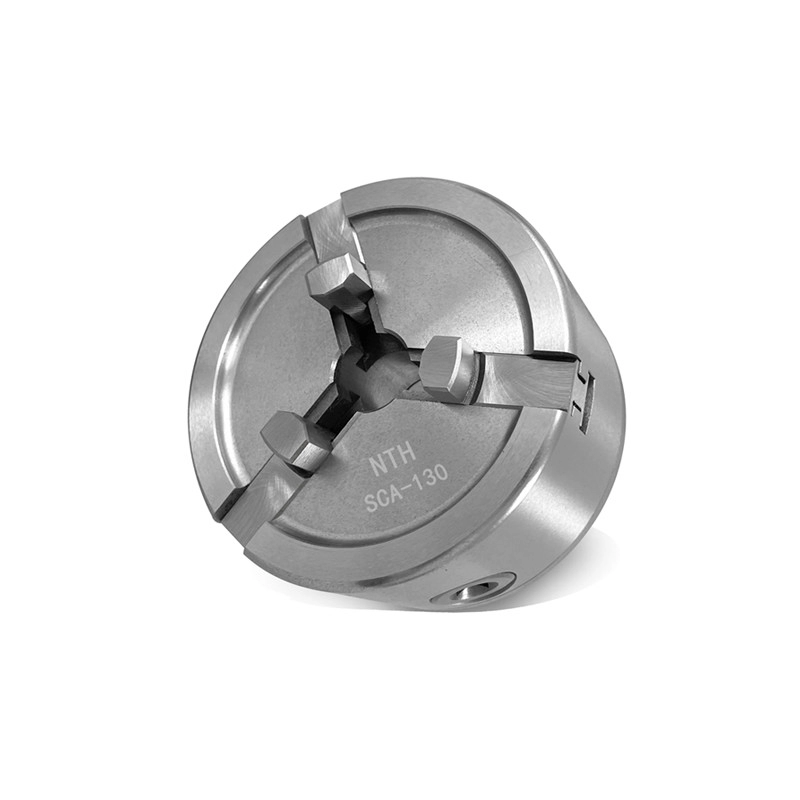

Stable 3 Jaw Self Centering Chuck With High Precision Design
Special-purpose for automobile chucks.
Recommended specially for clamping and machining various automobile brake hubs.
With high self-centring precision, large clamping rangeand and light weight.
Production Catalogue Download:SCA PDF.pdf

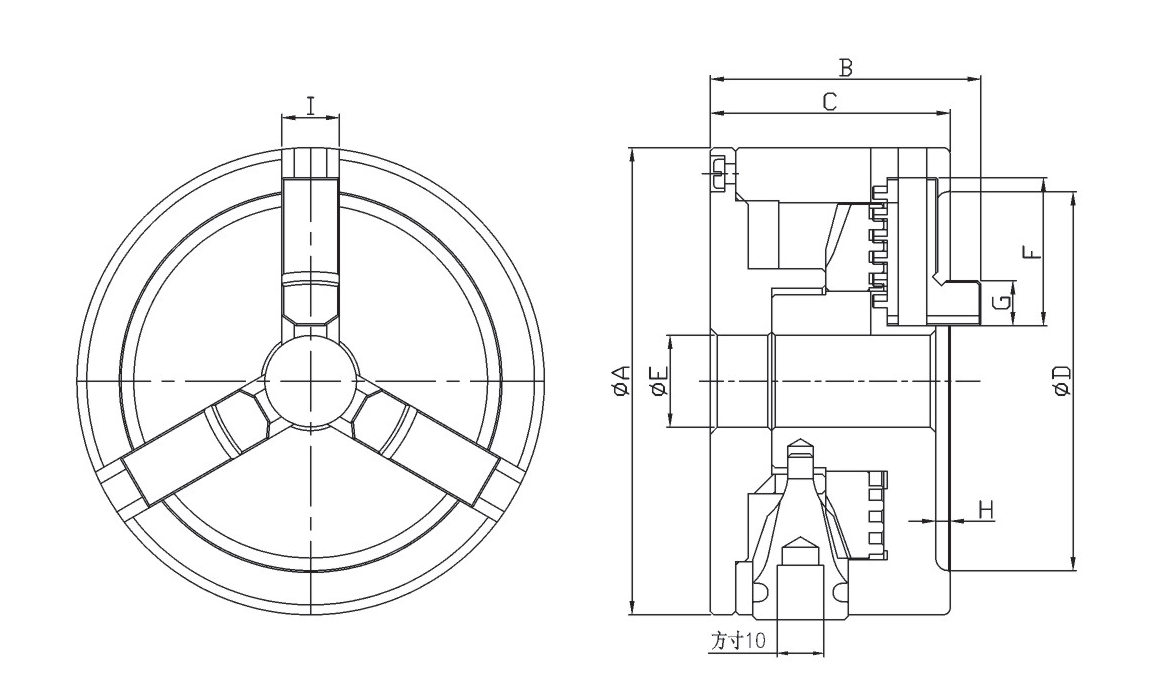

(unit: mm)
| MODEL/SPEC | A | B | C | D | E | F | G | H | I | Gripping range | Net Weight kg |
| SCA-130-1 | 129.5 | 75 | 66.5 | 105 | 25.4 | 41 | 12.5 | 4 | 16 | 50.4-90 | 4.8 |
| SCA-130-2 | 129.5 | 75 | 66.5 | 105 | 25.4 | 41 | 12.5 | 4 | 16 | 88.5-130 | 4.9 |
