| Product Name: | FCK Powerful Super Thin Scroll Vertical Chuck | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | FCK Super Thin Scroll Vertical Chuck, FCK Powerful Scroll Vertical Chuck |
||

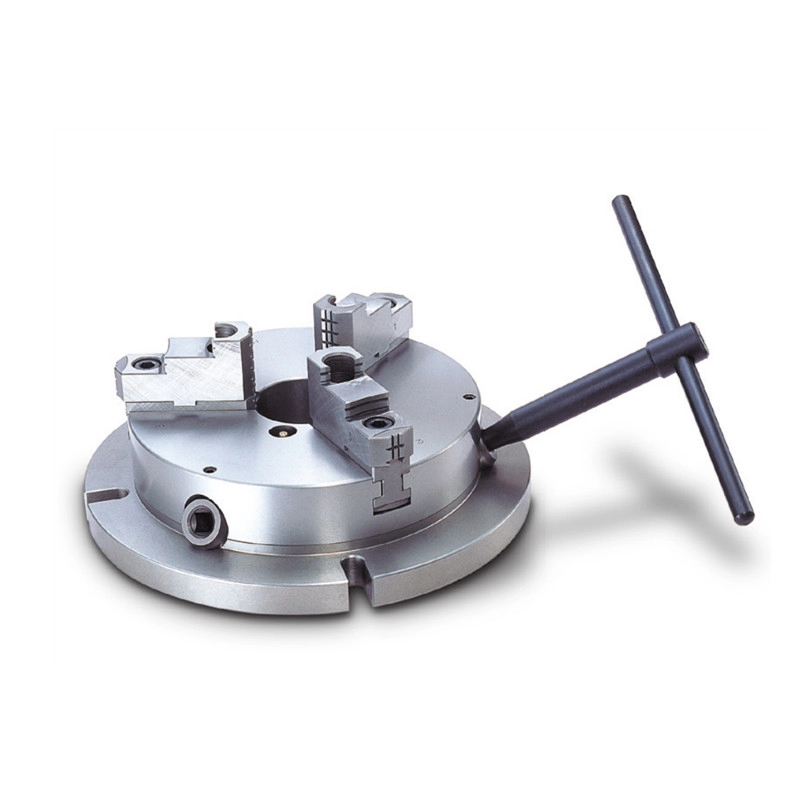

FCK Powerful Super Thin Scroll Vertical Chuck
MILLING CHUCK ADVANTAGES
The handle designed with an angle of 30 degrees which is more convenient for operations.
The "super thin thickness" designment of the chucks increases the "allowable distance" of machining of operations.
Chuck flange makes the loading and unloading operations simpler and more converient.
Hard jaws and soft jaws can be used alternatively.
Production Catalogue Download:FCK PDF.pdf

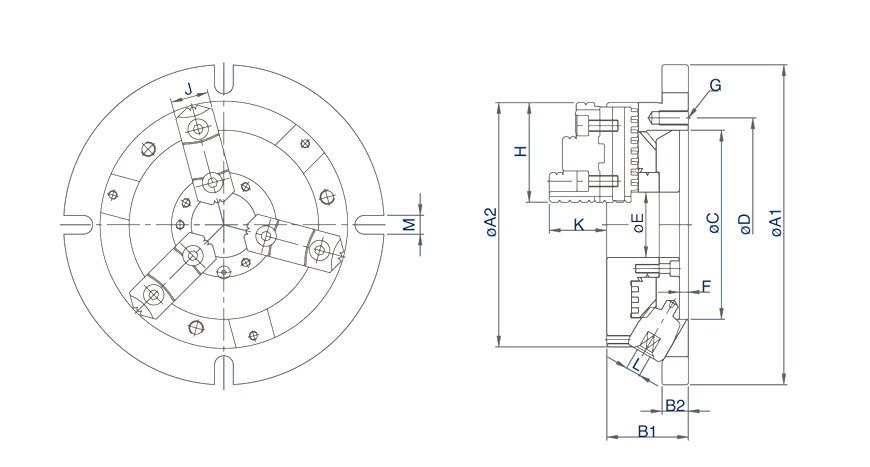

(unit: mm)
MODEL/ SPEC |
Range (mm) |
Range (mm) | Net Weight kg | A1 | A2 | B1 | B2 |
| FCK-06 | Ø8-Ø160 | Ø48-Ø150 | 10.6 | 220 | 170 | 58 | 18 |
| FCK-08 | Ø11-Ø200 | Ø62-Ø190 | 18.1 | 270 | 210 | 65 | 20 |
| FCK-10 | Ø12-Ø250 | Ø72-Ø240 | 27.9 | 315 | 255 | 73 | 20 |
| FCK-12 | Ø15-Ø300 | Ø86-Ø290 | 42.9 | 370 | 305 | 80 | 22 |
MODEL/ SPEC | C | D | E | F | G | H | J | K | L | M |
| FCK-06 | 130 | 147 | 45 | 6 | 3-M10x1.5P | 67 | 25 | 40.5 | 10 | 13 |
| FCK-08 | 155 | 172 | 60 | 6 | 3-M10x1.5P | 80 | 30 | 42 | 11 | 13 |
| FCK-10 | 190 | 210 | 80 | 6 | 3-M12x1.75P | 92 | 36 | 54.5 | 12 | 16 |
| FCK-12 | 250 | 285 | 105 | 5 | 3-M12x1.75P | 110 | 42 | 56 | 14 | 18 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
