| Product Name: | JHL RUBBER COLLET FIXED CHUCK | Material: | Cast Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | JHL Rubber Collet Fixed Chuck,JHL Rubber Collet Chuck,Fixture Results Rubber Collet Chuck |
||

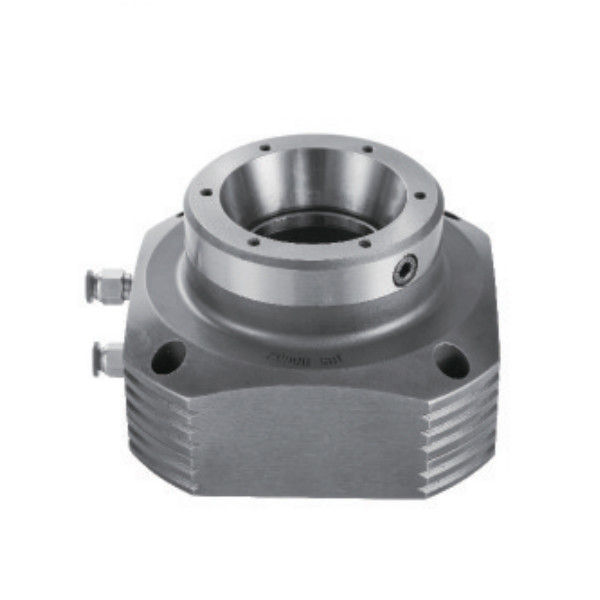

Fixed and non-rotating.Glue-injected flexible collet, parallel clamping, with a largerclamping surface and stronger gripping force.
With a long service life, and good waterproof and dustproof capability.Allowing easycontrol over the concentricity and parallelism at both ends.
Allowing separate size processing over multiple sections to reduce equipment costs.
Replacing CNC multi-section simultaneous processing with single-action grinding machine.
Requiring the provision of rear pneumatic/hydraulic cylinder rod drive.

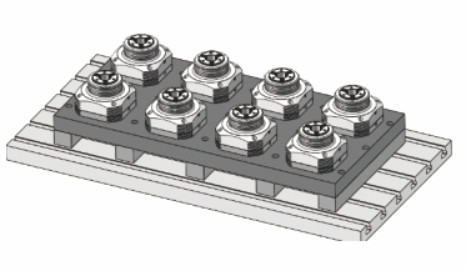

Suitable for non-standard fixtures for CNC milling and drilling machines; may be used asrow-type multi-station fixtures.
Suitable for machining of precision workpieces.
(unit: mm)
|
MODEL SPEC |

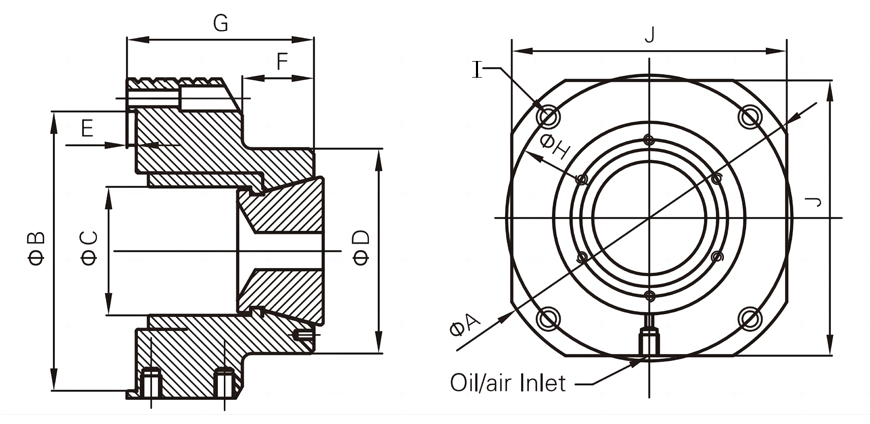

A | B | C | D | E | F | G | H | I | J |
Working Pressure |
Collet |
Collet stroke |
Drive Mode
|
| JHL-42 | 185 | 150 | 45 | 110 | 5 | 38.5 | 100.5 | 164 | 4-M8 | 158 | 20 | SK-42 | ±0.5 | 空/油压 |
| JHL-52 | 185 | 150 | 55 | 110 | 5 | 38.5 | 100.5 | 164 | 4-M8 | 158 | 20 | SK-52 | ±0.5 | 空/油压 |
| JHL-65 | 185 | 150 | 65 | 130 | 5 | 38.5 | 100.5 | 164 | 4-M8 | 158 | 18 | SK-65 | ±0.5 | 空/油压 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
