| Product Name: | LLT Pull Back Collet Chuck Gripping / Fixture Solution Optimize Production | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Gripping/Fixture | Service: | ODM/OEM Is Available |
| Highlight: | Fixture Solution Collet Chuck, Gripping Collet Chuck, Pull Back Collet Chuck |
||

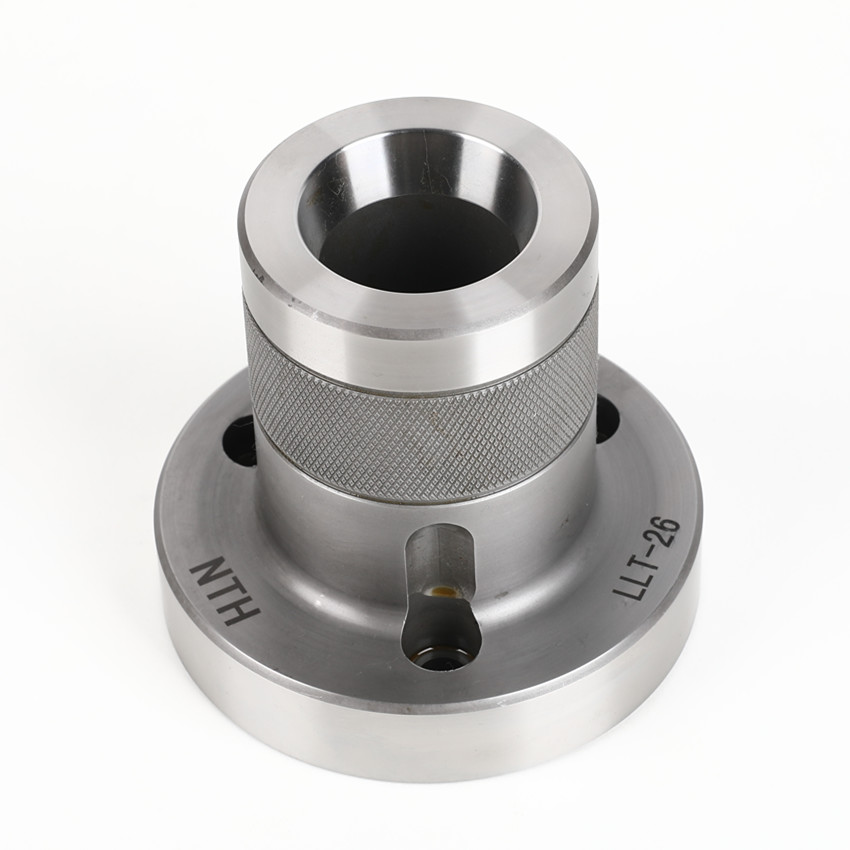

LLT Pull Back Collet Chuck Gripping / Fixture Solution Optimize Production
It's applicable for various CNC machines.
Easy installation, the installation size is compatible with the related hydraulic chucks.
The bar workpiece can be input through the collet chuck hole.
The collet is optional for different size and shape workpiece.
Production Catalogue Download:LLT PDF.pdf
(unit: mm)

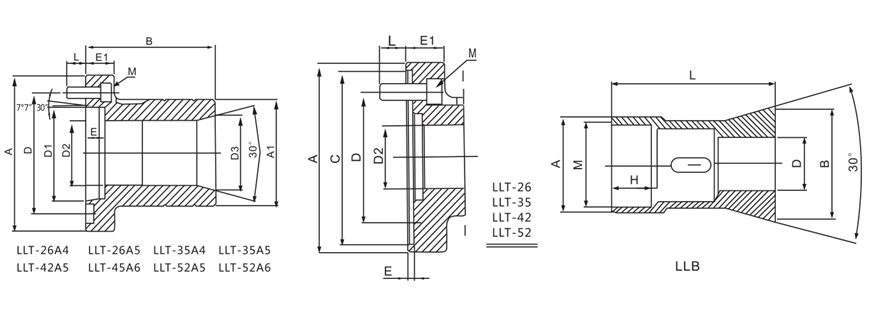

| Model | A | A1 | B | C(H6) | D | D1 | D2 | D3 | E | E1 | L | M |
| LLT-26 | 120 | 120 | 110 | 110 | 82.6 | 40 | 48 | 4 | 25 | 17 | 3-M10*25 | |
| LLT-35 | 120 | 83 | 110 | 110 | 82.6 | 49 | 58 | 4 | 25 | 18 | 3-M10*25 | |
| LLT-42 | 155 | 90 | 115 | 140 | 104.8 | 56 | 65 | 5 | 25 | 19 | 4-M10*25 | |
| LLT-52 | 155 | 106 | 125 | 140 | 104.8 | 65 | 73 | 5 | 25 | 20 | 4-M10*25 | |
| LLT-26A4 | 112 | 73 | 110 | 82.6 | 63.51 | 40 | 48 | 17 | 25 | 21 | 3-M10*30 | |
| LLT-26A5 | 135 | 73 | 110 | 82.6 | 82.56 | 40 | 48 | 17 | 25 | 22 | 3-M10*30 | |
| LLT-35A4 | 112 | 83 | 110 | 82.6 | 63.51 | 49 | 58 | 17 | 25 | 23 | 3-M10*30 | |
| LLT-35A5 | 135 | 83 | 110 | 82.6 | 82.56 | 49 | 58 | 17 | 25 | 24 | 3-M10*30 | |
| LLT-42A5 | 135 | 90 | 115 | 104.8 | 82.56 | 56 | 65 | 17 | 25 | 25 | 4-M10*30 | |
| LLT-42A6 | 165 | 90 | 115 | 133.4 | 106.38 | 56 | 65 | 17 | 30 | 26 | 4-M12*30 | |
| LLT-52A5 | 135 | 106 | 125 | 104.8 | 82.56 | 65 | 73 | 17 | 25 | 27 | 4-M10*30 | |
| LLT-52A6 | 165 | 106 | 125 | 133.4 | 106.38 | 65 | 73 | 17 | 30 | 28 | 4-M12*30 |
| Model | Round D mm | Hexagonal D mm | Square D mm | Allowed max. push force kgf | Max. Gripping force kgf | Max. Speed RPM | Inertia moment kg.m² | Max operating pressure MPA | Weight kg | Matched Collet | Matched cylinder |
| LLT-26 | 3-26 | 4-22 | 4-18 | 1840 | 3980 | 7000 | 0.037 | 2.6 | 4.2 | LLB-26 | H-0928 |
| LLT-35 | 3-35 | 6-32 | 6-26 | 2040 | 4480 | 6000 | 0.057 | 2.4 | 6.5 | LLB-35 | H-1246 |
| LLT-42 | 3-42 | 6-36 | 6-29 | 2550 | 5600 | 6000 | 0.061 | 2.9 | 6.9 | LLB-42 | H-1246 |
| LLT-42 | 5-52 | 8-45 | 7-36 | 2860 | 6220 | 5500 | 0.093 | 2.4 | 14.3 | LLB-52 | H-1552 |
| Model | A(g6) | B | Round D max | Hex D max | square D max | H | L | M |
| LLB-26 | 40 | 49 | 26 | 22 | 18 | 27 | 95 | M33*1.5 |
| LLB-35 | 49 | 59 | 35 | 32 | 26 | 27 | 95 | M42*1.5 |
| LLB-42 | 56 | 66 | 42 | 42 | 29 | 27 | 100 | M50*2 |
| LLB-52 | 65 | 74 | 52 | 52 | 36 | 27 | 100 | M55*2 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
