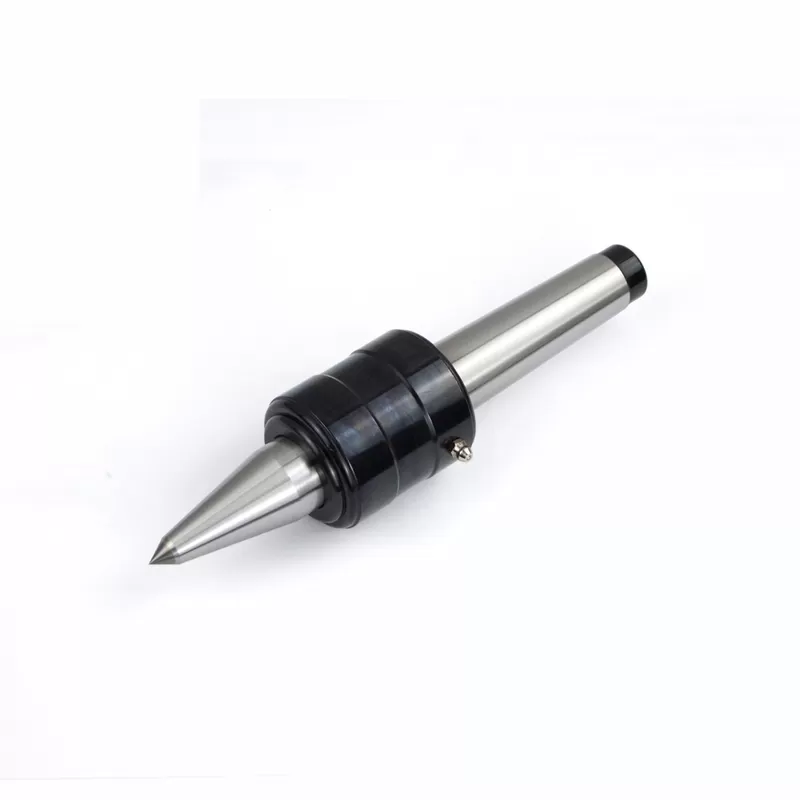

TSC-9063 MEDIUM DUTY LONG AND THIN LIGHT LIVE CENTER WITH TUNGSTEN CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: TSC-9063-TS10-4
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: TSC-9063 MEDIUM DUTY LONG AND THIN LIGHT LIVE CENTER WITH TUNGSTEN CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.005mm
High Light:

lathe tailstock live center

,

live center tailstock



TSC-9063 SERIES
MEDIUM DUTY LONG AND THIN LIGHT LIVE CENTER
Application: CNC lathe, high speed lathe and other lathe.
Working Usage: Applicable for the length less than 400mm light turning process, and slender workpiece turning process.
TIR: Less than 0.005mm

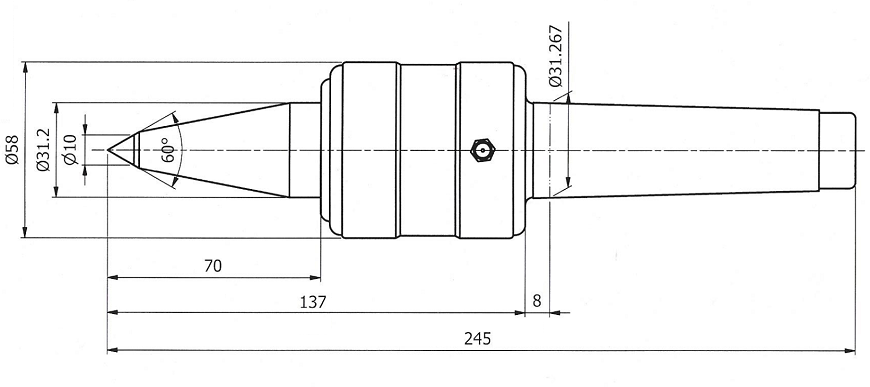

TSC-9063 MEDIUM DUTY LONG AND THIN LIGHT LIVE CENTER WITH TUNGSTEN CENTER 0

Model/Spec MT Max. RPM Max. radial load Max. axial thrust force
TSC-9063-TS10-4 31.267(MT4) 3500 1000 1500

Production Catalogue Download:

Accessories for Centers.pdf
Manual and Techinical instruction.pdf



Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.



Subject to technology changes without prior information
Non-standard requirements can be made
