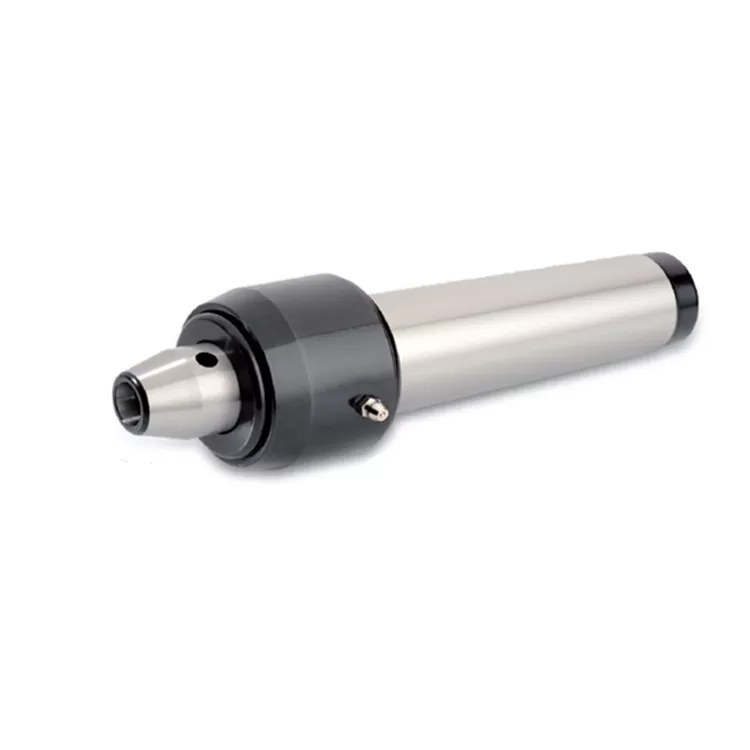

| Product Name: | TSC-761 INTERCHANGEABLE MEDIUM DUTY LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Usage: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Size: | Refer To The Specification | TIR: | Less Than 0.005mm |
| Highlight: | lathe tailstock live center,live center tailstock |
||
Type: TSC-761 INTERCHANGEABLE MEDIUM DUTY LIVE CENTER
Duty: Medium
Application CNC lathe and high speed lathe or other lathe machine.
Working Usage Applicable for small dia. and the length less than 300mm ordinary turning process.
Structure Combination of thrust bearing and with the design of double supporting point.
Accessories 61 type Tips and 61 type pin punch.
TIR Less than 0.005mm

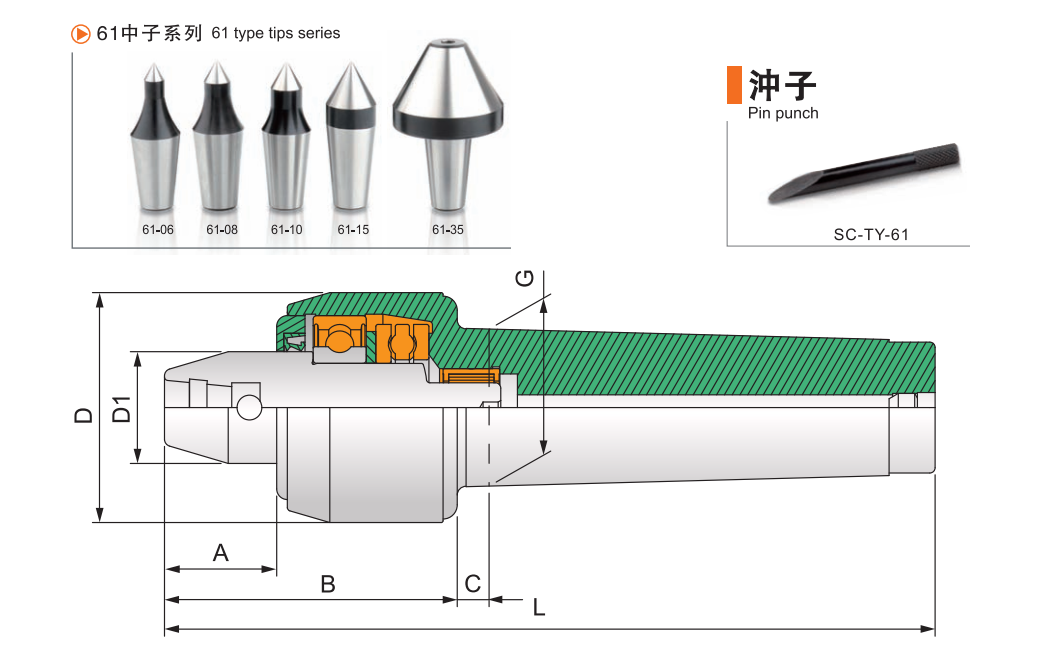

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | G | L | Max.RPM | Max. radial load | Max. axial thrustforce |
| TSC-761-3 | 32 | 83 | 8 | 58 | 31.2 | 23.825(MT3) | 170 | 4,000rpm | 900kg | 2,200kg |
| TSC-761-4 | 32 | 83 | 9 | 65 | 31.2 | 31.267(MT4) | 191 | 4,000rpm | 1,100kg | 2,500kg |
| TSC-761-5 | 32 | 83 | 9 | 65 | 31.2 | 44.399(MT4) | 218 | 4,000rpm | 1,200kg | 2,500kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
