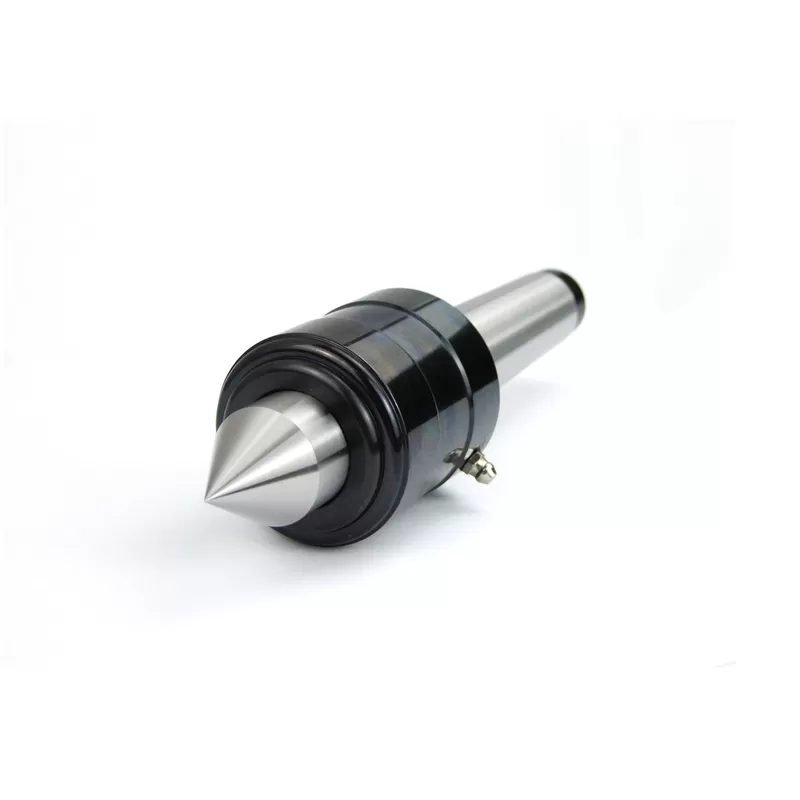

TSC-9062 MEDIUM DUTY LIGHT TYPE LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: TSC-9062-4,TSC-9062-TS14-4
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details:Good and firm package is suitable for sea and air shipping
Delivery Time:3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:TSC-9062 MEDIUM DUTY LIGHT TYPE LIVE CENTER Material: Alloy Steel
Function: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Usage: Refer To The Specification Service: Less Than 0.005mm
Highlight:

lathe tailstock live center, live center tailstock

TSC-9062 MEDIUM DUTY LIGHT TYPE LIVE CENTER

Application: CNC lathe, high speed lathe, other lathe machine
Working Usage: Applicable for the length less than 400mm and light turning process
There is a model with Tungsten tip:TSC-9062-TS14-4
TIR: Less than 0.005mm

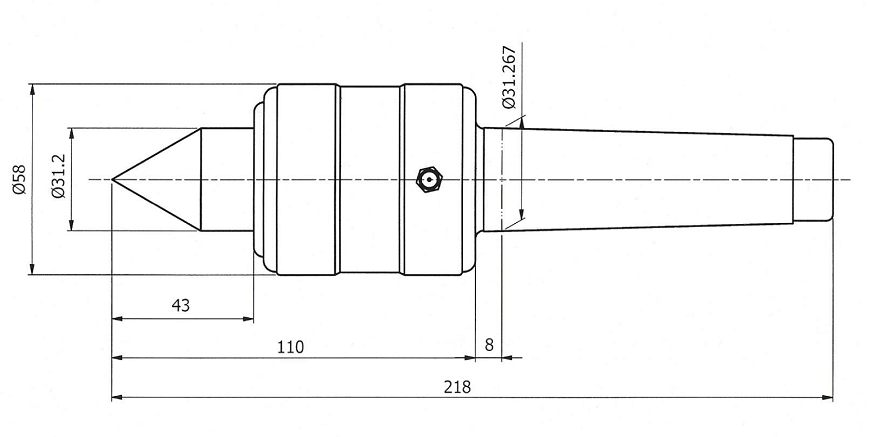

TSC-9062-4  Drawing

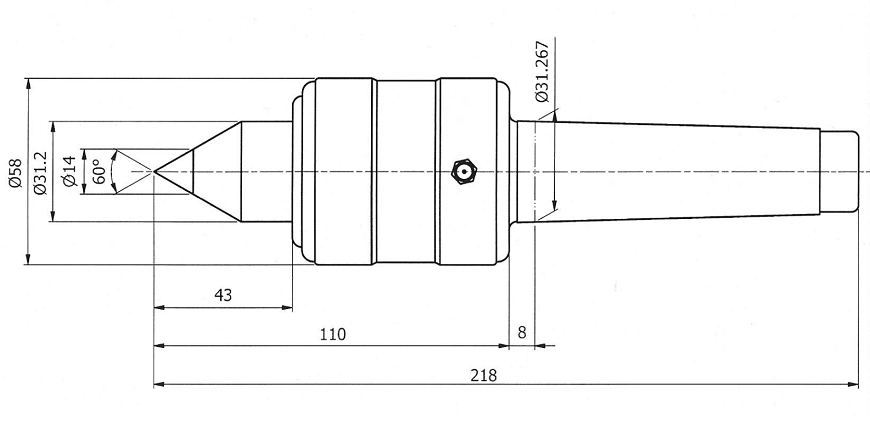

TSC-9062-TS14-4  Drawing


Model/Spec

MTMax. RPMMax. radial loadMax. axial thrust force

TSC-9062-4

31.267(MT4)350010001500

TSC-9062-TS14-4

31.267(MT4)350010001500

Production Catalogue Download:

Accessories for Centers.pdf
Manual and Techinical instruction.pdf



Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.



Subject to technology changes without prior information
Non-standard requirements can be made
