| Product Name: | SKT 2 Jaw Universal Scroll Chuck Front And Back Mounted | Material: | Cast Iron |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | High Precision/Stable/High Quality |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

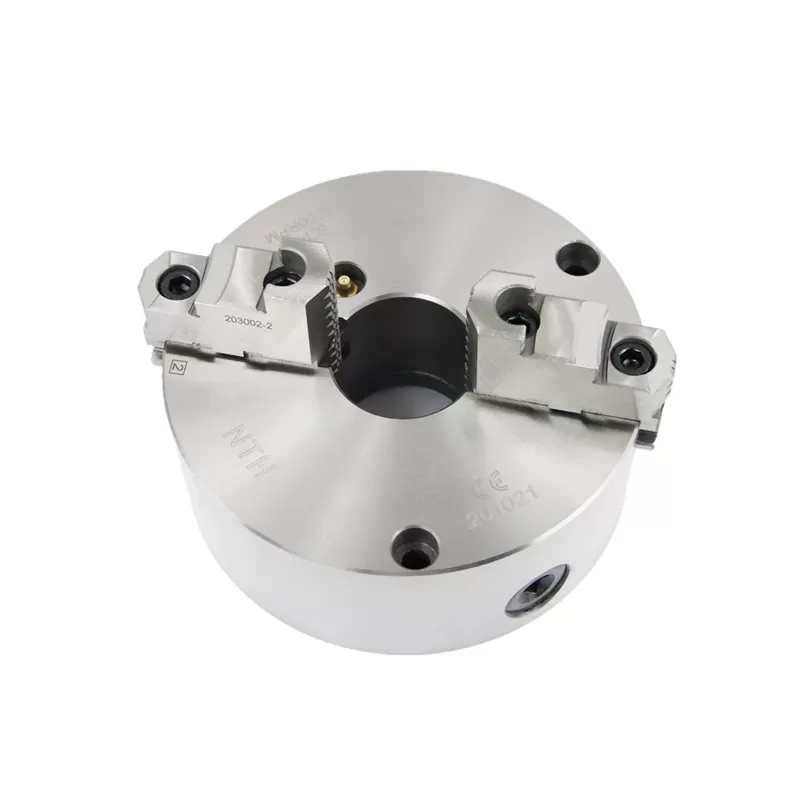

SKT 2 Jaw Universal Scroll Chuck Front And Back Mounted
1. Plain back
2. Standard accessories: 1 set two-piece hard jaws
3. High accuracy on clamping repeatability
Specification UNIT:mm
| Model/Spec | Max. Allowable Torque N*m | Max. Gripping Force KN | Weight Kg | RPM | O.D Clamping Range mm | I.D. Clamping Range mm |
| SKT-04* | 44 | 12 | 3.1 | 2500 | 3-90 | 32-84 |
| SKT-05* | 63 | 15 | 4.4 | 2500 | 3-110 | 35-100 |
| SKT-06 | 88 | 31 | 11.4 | 2000 | 8-160 | 55-150 |
| SKT-07 | 107 | 31 | 12.2 | 2000 | 8-180 | 62-170 |
| SKT-08 | 128 | 33 | 16.2 | 2000 | 8-180 | 62-170 |
| SKT-09 | 147 | 37 | 21.2 | 2000 | 11-220 | 70-210 |
| SKT-10 | 176 | 46 | 28 | 1800 | 12-260 | 80-250 |

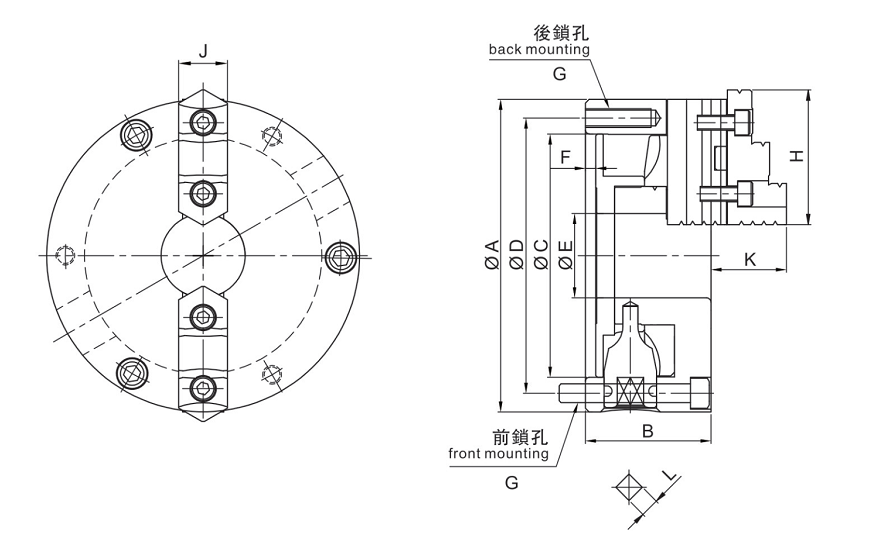

| Model/Spec | A | B | C | D | E | F | G | H | J | K | L |
| SKT-04* | 112 | 58 | 80 | 95 | 24 | 4.5 | 3(4)-M8x1.25P | 46.5 | 19 | 31 | 8 |
| SKT-05* | 132 | 60 | 100 | 115 | 32 | 4.5 | 3(4)-M8x1.25P | 56 | 22 | 36 | 8 |
| SKT-06 | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10x1.5P | 67 | 25 | 42 | 10 |
| SKT-07 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10x1.5P | 80 | 30 | 46 | 11 |
| SKT-08 | 203 | 76 | 160 | 176 | 58 | 5 | 3-M10x1.5P | 80 | 30 | 46 | 11 |
| SKT-09 | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12x1.75P | 80 | 30 | 46 | 12 |
| SKT-10 | 273 | 86 | 230 | 250 | 89 | 5.5 | 3-M12x1.75P | 95 | 36 | 54 | 12 |
*Note: The front mounting bolts are 4 pcs
Special after-sales service promise
For all NTH precision manual chuck, our company guarantee the following value-added services:
1. Free inspection after returning to our factory.
2. Free grinding for the clamping arc of chuck jaws to make the jaws meet the original factory precision standard.
3. To provide maintenance plan free.
4. For the above services, no matter how long the manual chuck is used, users only need to pay the round-trip freight.
5. If any damaged parts of the manual chuck need changing, users just pay for the new parts.
Subject to technology changes without prior information
Non-standard requirements can be made
