| Product Name: | JPL Precision Pull Back Collet Chuck | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | lathe collet chuck, hydraulic collet chuck |
||

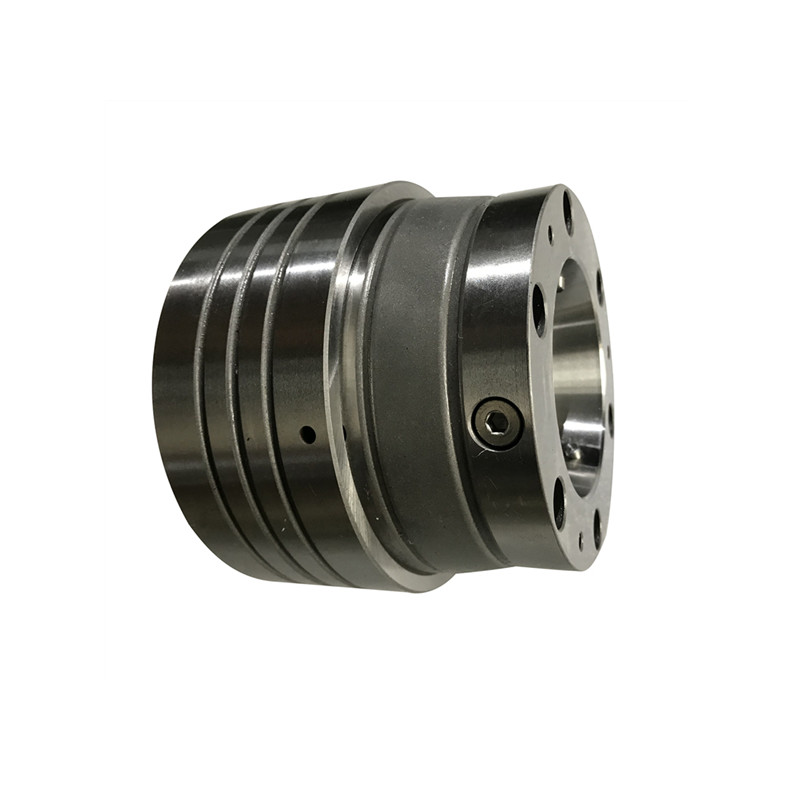

JPL Precision Pull Back Collet Chuck
BRAND: NTH
JPL SERIES COLLET CHUCK ADVANTAGE
Use SK rubber flex collet.
Use special fixture to change the collet.
The design for stopping the workpiece is available.
The repeatability clamping accuracy is within 0.01mm.
The SK collet stroke range is 0.5mm.
It’s parallelism clamping, high stability.
Applicable for CNC,4 or 5 axis rotary table and so on.
JPL INTRODUCTION
JPL is a collet chuck with high-accuracy, heavy clamping force and rigid body. Whole chuck body is made of high quality alloy steel and harden to HRC60 provide the rigid body that capable to handle the heavy duty working. The parallel clamping promise to clamp the whole length regardless the tolerance of the work piece. Compare to the typical spring collet, rubber collet can be used more wide and stable. JPL-D type is designed with a stopper in the center for customers requirements.

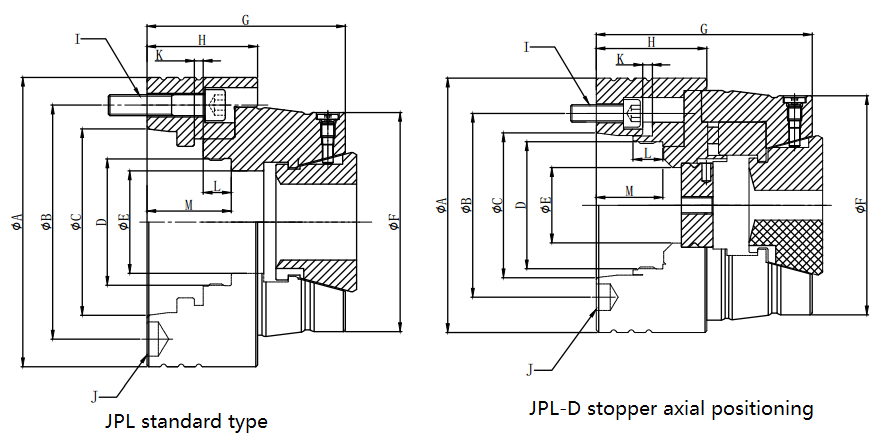

JPL MODEL AND SPEC UNIT:mm
MODEL | A | B | C | D | E | F | G | H | I | J |
| JPL-42 | 145 | 104.8 | A2-5 | M72*1.5 | 48 | 125 | 114 | 65 | 6-M10 | ¢14.5 |
| JPL-42D | 145 | 104.8 | A2-5 | M72*1.5 | 43 | 125 | 123 | 63 | 6-M10 | ¢14.5 |
| JPL-52 | 165 | 133.4 | A2-6 | M72*1.5 | 58 | 125 | 114 | 65 | 6-M12 | ¢19.5 |
| JPL-52D | 165 | 133.4 | A2-6 | M72*1.5 | 53 | 125 | 123 | 63 | 6-M12 | ¢19.5 |
| JPL-65 | 165 | 133.4 | A2-6 | M78*1.5 | 66 | 145 | 122 | 65 | 6-M12 | ¢19.5 |
| JPL-65D | 165 | 133.4 | A2-6 | M78*1.5 | 66 | 145 | 128 | 65 | 6-M12 | ¢19.5 |
| JPL-80 | 210 | 171.4 | A2-8 | M92*1.5 | 81 | 160 | 135 | 72 | 6-M16 | ¢24.2 |
| JPL-80D | 210 | 171.4 | A2-8 | M92*1.5 | 81 | 160 | 155 | 75 | 6-M16 | ¢24.2 |
| JPL-100 | 216 | 171.4 | A2-8 | M125*1.5 | 101 | 195 | 135 | 72 | 6-M16 | ¢24.2 |
| JPL-100D | 216 | 171.4 | A2-8 | M125*1.5 | 101 | 195 | 155 | 75 | 6-M16 | ¢24.2 |
MODEL | K | L | M | Max pull | Rubber | Collet | Max | Max |
| JPL-42 | 5 | 21 | 53.5 | 3200 | SK-42 | ±0.5 | 42 | 6500 |
| JPL-42D | 5.5 | 17 | 38 | 3200 | SK-42 | ±0.5 | 42 | 6500 |
| JPL-52 | 5 | 21 | 53.5 | 3200 | SK-52 | ±0.5 | 52 | 6500 |
| JPL-52D | 5.5 | 17 | 38 | 3200 | SK-52 | ±0.5 | 52 | 6500 |
| JPL-65 | 5 | 21 | 53.5 | 4000 | SK-65 | ±0.5 | 65 | 5500 |
| JPL-65D | 5.5 | 19 | 40 | 4000 | SK-65 | ±0.5 | 65 | 5500 |
| JPL-80 | 5 | 21 | 55 | 4300 | SK-80 | ±0.5 | 80 | 5000 |
| JPL-80D | 5.5 | 19 | 41 | 4300 | SK-80 | ±0.5 | 80 | 5000 |
| JPL-100 | 5 | 21 | 55 | 5000 | SK-100 | ±0.5 | 100 | 4500 |
| JPL-100D | 5.5 | 19 | 41 | 5000 | SK-100 | ±0.5 | 100 | 4500 |
