| Product Name: | TSC-665 INTERCHANGEABLE HEAVY DUTY STRONG LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | lathe tailstock live center, live center tailstock |
||

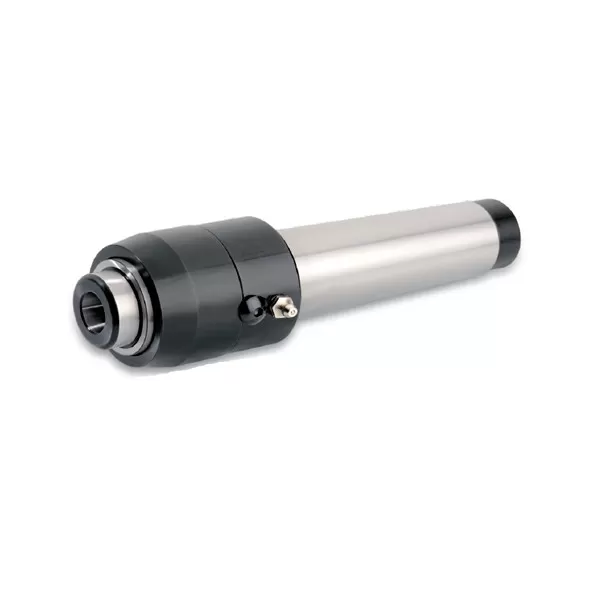

TSC-665 INTERCHANGEABLE HEAVY DUTY STRONG LIVE CENTER
Type: Interchangeble live center
Duty: Heavy
Application CNC lathe and high speed lathe or other lathe.
Working Usage Applicable for ordinary strong turning process.
Structure Combination of thrust bearing with enhanced axial load design and needle bearing at front and rear place for radial load.
Accessories 65 type Tips and 65 type punch.
TIR Less than 0.005mm

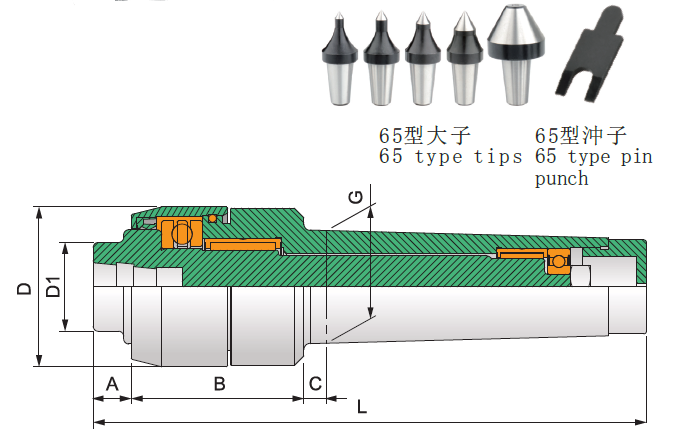

Specification UNIT:mm
Model/Spec | A | B | C | D | D1 | G | L | Max.RPM | Max. radial load | Max. axial thrust force |
|---|---|---|---|---|---|---|---|---|---|---|
| TSC-665-3 | 12 | 69 | 8 | 58 | 34.8 | 23.825(MT3) | 156 | 3,500rpm | 1,960kg | 1,750kg |
| TSC-665-4 | 15 | 83 | 9 | 63 | 34.8 | 31.267(MT4) | 191 | 3,500rpm | 2,800kg | 2,150kg |
| TSC-665-5 | 15 | 83 | 9 | 63 | 34.8 | 44.399(MT5) | 218 | 3,500rpm | 3,080kg | 2,150kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
