| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | K11 125/D3,K11 125/D4,K11 160/D3,K11 160/D4, etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Product Name: | K11 SERIES DIRECT MOUNTING 3-JAW SELF-CENTERING CHUCKS TYPE D | Material: | Cast Steel |
|---|---|---|---|
| Usage: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| High Light: | manual lathe chuck,lathe scroll chuck |
||

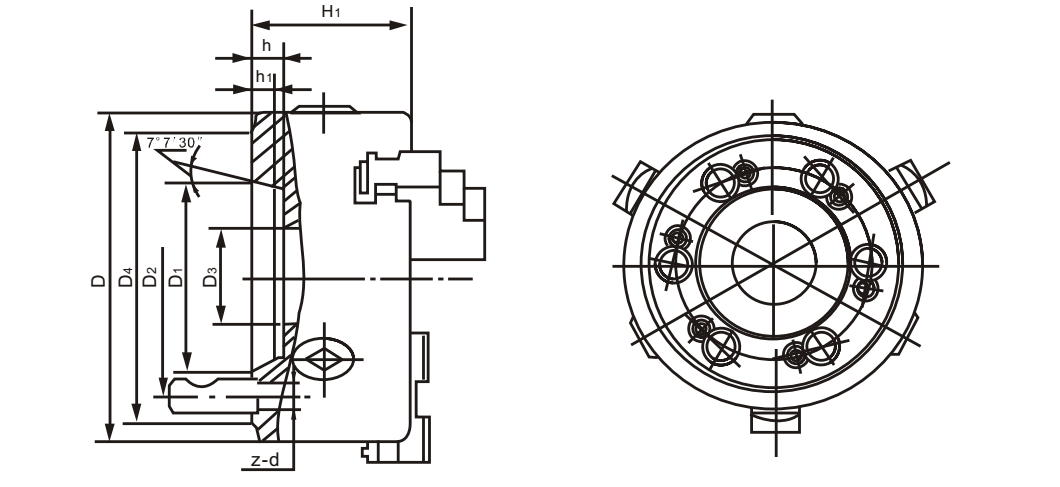

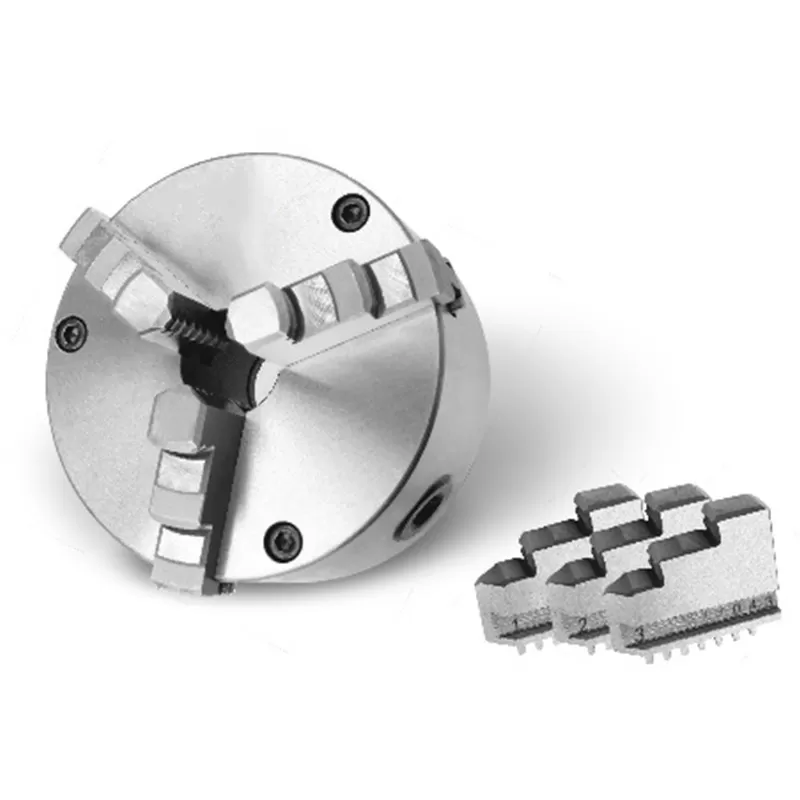

K11 SERIES DIRECT MOUNTING 3-JAW SELF-CENTERING CHUCKS TYPE D
|
Code No |
D | D1 | D2 | D3 | D4 | H1 | h | H1 | z-d |
Net wt. Kg |
|---|---|---|---|---|---|---|---|---|---|---|
| K11 125/D3 | 125 | 53.975 | 70.6 | 25 | 92 | 63 | 13 | 10 | 3-M10X1 | 6 |
| K11 125/D4 | 125 | 63.513 | 82.6 | 25 | 117 | 63 | 13 | 10 | 3-M10X1 | 6 |
|
K11 160/D3 K11 160A/D3 |
160 | 53.975 | 70.6 | 40 | 92 | 76 | 13 | 10 | 3-M10X1 | 10 |
|
K11 160/D4 K11 160A/D4 |
160 | 63.513 | 82.6 | 40 | 117 | 70 | 13 | 10 | 3-M10X1 | 10 |
|
K11 160/D5 K11 160A/D5 |
160 | 82.563 | 104.8 | 40 | 146 | 73 | 15 | 12 | 6-M12X1 | 10 |
|
K11 200/D4 K11 200C/D4 K11 200A/D4 |
200 | 63.513 | 82.6 | 50 | 117 | 86 | 13 | 10 | 3-M10X1 | 17 |
|
K11 200/D5 K11 200C/D5 K11 200A/D5 |
200 | 82.563 | 104.8 | 50 | 146 | 86 | 15 | 12 | 6-M12X1 | 17 |
|
K11 200/D6 K11 200C/D6 K11 200A/D6 |
200 | 106.375 | 133.4 | 50 | 181 | 86 | 16 | 13 | 6-M16X1.5 | 17 |
|
K11 250/D5 K11 250C/D5 K11 250A/D5 |
250 | 82.563 | 104.8 | 70 | 146 | 95 | 15 | 12 | 6-M12X1 | 31 |
|
K11 250/D6 K11 250C/D6 K11 250A/D6 |
250 | 106.375 | 133.4 | 70 | 181 | 98 | 16 | 13 | 6-M16X1.5 | 32 |
|
K11 250/D8 K11 250C/D8 K11 250A/D8 |
250 | 139.719 | 171.4 | 80 | 225 | 98 | 18 | 14 | 6-M12X1 | 32 |
|
K11 315/D6 K11 315C/D6 K11 315A/D6 |
315 | 106.375 | 133.4 | 100 | 181 | 103.5 | 16 | 13 | 6-M16X1.5 | 49 |
|
K11 315/D8 K11 315C/D8 K11 315A/D8 |
315 | 139.719 | 171.4 | 100 | 225 | 103.5 | 18 | 14 | 6-M20X1.5 | 49 |
|
K11 315/D11 K11 315C/D11 K11 315A/D11 |
315 | 196.869 | 235 | 100 | 298 | 103.5 | 20 | 16 | 6-M22X1.5 | 51 |
|
K11 320/D6 K11 320C/D6 K11 320A/D6 |
320 | 106.375 | 133.4 | 100 | 181 | 103.5 | 16 | 13 | 6-M16X1.5 | 50 |
|
K11 320/D8 K11 320C/D8 K11 320A/D8 |
320 | 139.719 | 171.4 | 100 | 225 | 103.5 | 18 | 14 | 6-M20X1.5 | 50 |
|
K11 320/D11 K11 320C/D11 K11 320A/D11 |
320 | 196.869 | 235 | 100 | 298 | 103.5 | 20 | 16 | 6-M22X1.5 | 52 |
|
K11 325/D6 K11 325C/D6 K11 325A/D6 |
325 | 106.375 | 133.4 | 100 | 181 | 103.5 | 16 | 13 | 6-M16X1.5 | 51 |
|
K11 325/D8 K11 325C/D8 K11 325A/D8 |
325 | 139.719 | 171.4 | 100 | 225 | 103.5 | 18 | 14 | 6-M20X1.5 | 51 |
|
K11 325/D11 K11 325C/D11 K11 325A/D11 |
325 | 196.869 | 235 | 100 | 298 | 103.5 | 20 | 16 | 6-M22X1.5 | 53 |
|
K11 380/D8 K11 380C/D8 K11 380A/D8 |
380 | 139.719 | 171.4 | 130 | 225 | 118 | 18 | 14 | 6-M20X1.5 | 81 |
|
K11 380/D11 K11 380C/D11 K11 380A/D11 |
380 | 196.869 | 235 | 135 | 298 | 118 | 20 | 16 | 6-M22X1.5 | 81 |
|
K11 400/D8 K11 400C/D8 K11 400A/D8 |
400 | 139.719 | 171.4 | 130 | 225 | 118 | 18 | 14 | 6-M20X1.5 | 81 |
|
K11 400/D11 K11 400C/D11 K11 400A/D11 |
400 | 196.869 | 235 | 135 | 298 | 118 | 20 | 16 | 6-M22X1.5 | 81 |
|
K11 500/D11 K11 500A/D11 |
500 | 196.869 | 235 | 190 | 298 | 135 | 20 | 16 | 6-M22X1.5 | 159 |
|
K11 500/D15 K11 500A/D15 |
500 | 285.775 | 330.2 | 210 | 403 | 135 | 21 | 17 | 6-M24X1.5 | 159 |
|
K11 630/D11 K11 630A/D11 |
500 | 196.869 | 235 | 252 | 298 | 155 | 20 | 16 | 6-M24X1.5 | 250 |
|
K11 630/D15 K11 630A/D15 |
630 | 285.775 | 330.2 | 252 | 403 | 155 | 21 | 17 | 6-M24X1.5 | 250 |
