| Product Name: | K11 SERIES DIRECT MOUNTING 3 JAW SELFCENTERING CHUCKS TYPE A | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

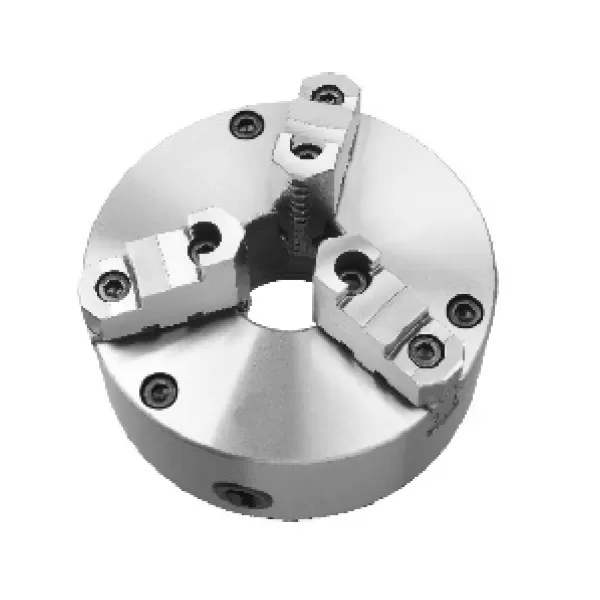

K11 SERIES DIRECT MOUNTING 3 JAW SELFCENTERING CHUCKS TYPE A
Form A1(Use Inner Tapped Hole)

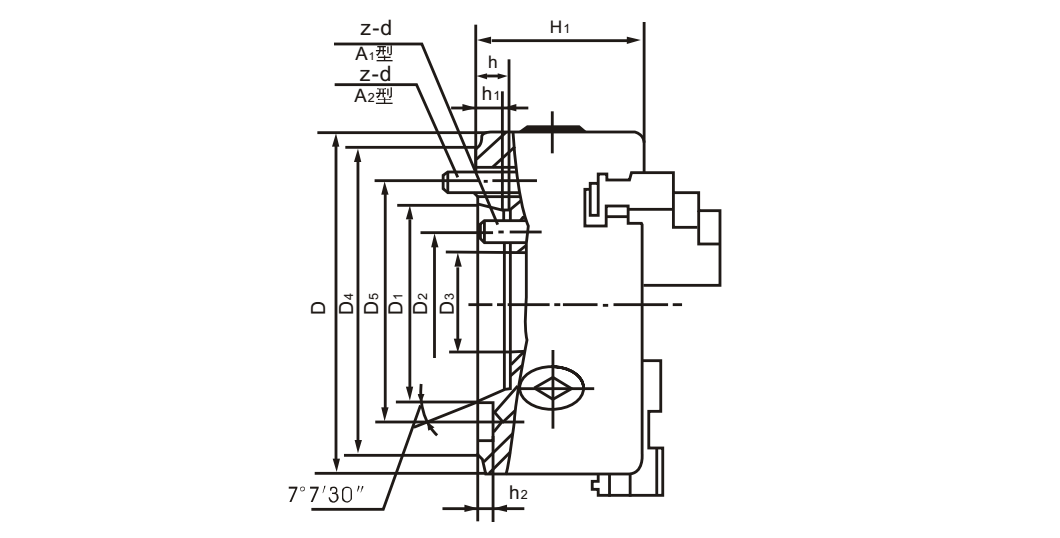

Code No | D | D1 | D2 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z-d | N.W. KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
K11200 /A1-5 K11200C/A1-5 K11200A/A1-5 | 200 | 82.563 | 61.9 | 40 | 133 | 104.8 | 84 | 14.288 | 12 | 6.5 | 16.3 | 3-M10 | 17 |
K11250 /A1-6 K11250C/A1-6 K11250A/A1-6 | 250 | 106.375 | 82.6 | 55 | 165 | 133.4 | 93 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 | 31 |
K11325 /A1-6 K11325C/A1-6 K11325A/A1-6 | 325 | 106.375 | 82.6 | 55 | 165 | 133.4 | 106 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 | 52 |
K11325 /A1-8 K11325C/A1-8 K11325A/A1-8 | 325 | 139.719 | 111.1 | 78 | 210 | 171.4 | 106 | 17.462 | 14 | 8 | 24.2 | 6-M16 | 53 |
K11380 /A1-8 K11380C/A1-8 K11380A/A1-8 | 380 | 139.719 | 111.1 | 78 | 210 | 171.4 | 118 | 17.462 | 14 | 8 | 24.2 | 6-M16 | 81 |
| K11500A/A1-11 | 500 | 196.869 | 165.1 | 125 | 280 | 235 | 135 | 19.050 | 16 | 10 | 29.4 | 6-M20 | 159 |
| K11500A/A1-15 | 500 | 285.775 | 247.6 | 200 | 380 | 330.2 | 135 | 20.638 | 17 | 10 | 35.7 | 6-M22 | 159 |
Form A2(Use Outer Tapped Hole)
Code No | D | D1 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z-d | N.W. KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
K11200 /A2-4 K11200C/A2-4 K11200A/A2 -4 | 200 | 63.513 | 60 | 108 | 86 | 82.6 | - | 10 | 6.5 | 14.7 | 3-M10 | 17 |
| K11500A/A2-11 | 500 | 196.869 | 190 | 280 | 135 | 235 | 20 | 16 | 10 | 29.4 | 6-M20 | 159 |
