| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | K11-125AF,K11-130AF,K11-160AF,K11-190AF,K11-200AF, etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | K11 SERIES 3-JAW SELF-CENTERING CHUCKS(2-PIECE JAW) | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, lathe scroll chuck |
||

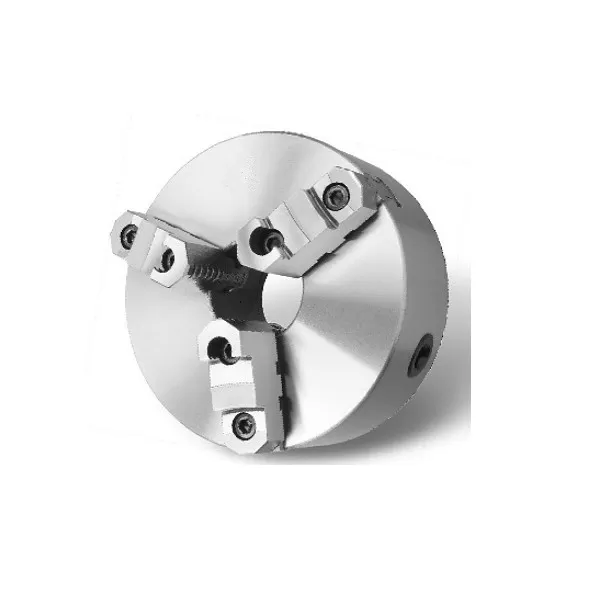

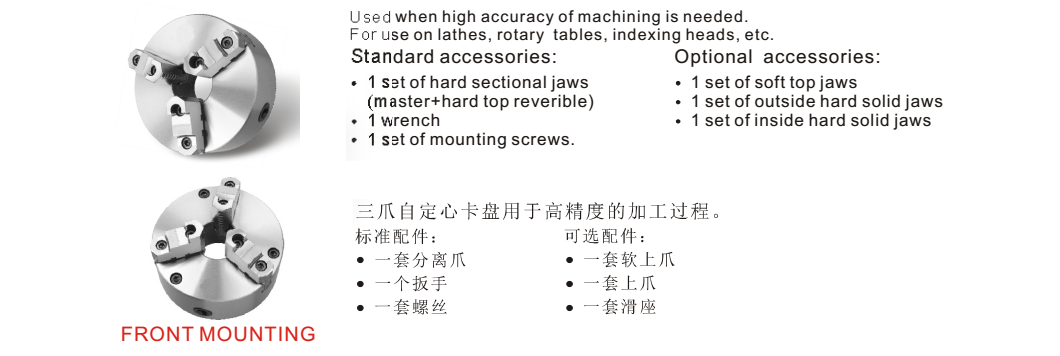

K11 SERIES 3-JAW SELF-CENTERING CHUCKS(2-PIECE JAW)

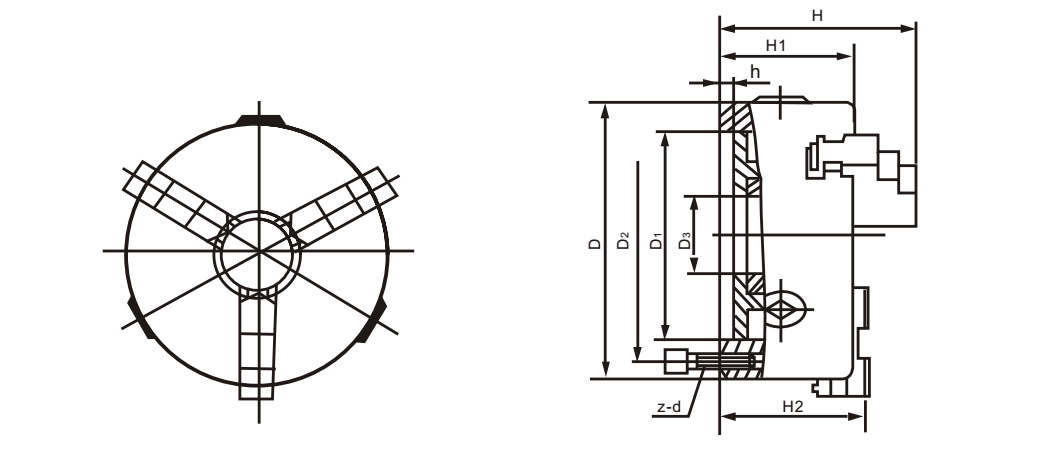

Code No | Code No | Chuck Size | D1 | D2 | D3 | H | H1 | H2 | h | z-d | Max.input torque | Max.speed | Net wt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K11-125A | K11-125AF | 125 | 95 | 108 | 30 | 95 | 58 | 63 | 4 | 3-M8 | 100 | 3000 | 4.8 |
| K11-130A | K11-130AF | 130 | 100 | 115 | 30 | 97 | 60 | 65 | 5 | 3-M8 | 100 | 3000 | 4.3 |
| K11-160A | K11-160AF | 160 | 130 | 142 | 45 | 109 | 65 | 71 | 5 | 3-M8 | 160 | 2500 | 8.3 |
| K11-190A | K11-190AF | 190 | 155 | 172 | 55 | 122 | 75 | 78 | 5 | 3-M10 | 250 | 2000 | 9.5 |
| K11-200A | K11-200AF | 200 | 165 | 180 | 65 | 122 | 75 | 78 | 5 | 3-M10 | 250 | 2000 | 13 |
| K11-230A | K11-230AF | 230 | 190 | 210 | 70 | 136 | 80 | 84 | 6 | 3-M12 | 250 | 2000 | 14.5 |
| K11-240A | K11-240AF | 240 | 195 | 215 | 70 | 136 | 80 | 84 | 8 | 3-M12 | 320 | 1600 | 22.5 |
| K11-250A | K11-250AF | 250 | 206 | 226 | 80 | 136 | 80 | 86 | 5 | 3-M12 | 320 | 1600 | 23 |
| K11-315A | K11-315AF | 315 | 260 | 285 | 100 | 156.5 | 90 | 99.5 | 6 | 3-M16 | 400 | 1200 | 41 |
| K11-320A | K11-320AF | 320 | 270 | 290 | 100 | 156.5 | 90 | 99.5 | 6 | 3-M16 | 400 | 1200 | 42 |
| K11-325A | K11-325AF | 325 | 272 | 296 | 100 | 156.5 | 90 | 99.5 | 6 | 3-M16 | 400 | 1200 | 41 |
| K11-380A | K11-380AF | 380 | 325 | 350 | 135 | 173.5 | 98 | 107.5 | 6 | 3-M16 | 500 | 1000 | 46 |
| K11-400A | K11-400AF | 400 | 340 | 368 | 130 | 173.5 | 100 | 112.5 | 6 | 3-M16 | 500 | 1000 | 62 |
| K11-500A | K11-500AF | 500 | 440 | 465 | 210 | 202 | 115 | 126 | 6 | 6-M16 | 630 | 800 | 71 |
| K11-630A | K11-630AF | 630 | 560 | 595 | 270 | 220.5 | 135 | 144.5 | 7 | 6-M16 | 800 | 800 | 200 |
