| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | K10-80,K10-100,K10-125,K10-160,K10-200,K10-250,K10-315,K10-400, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | K10 SERIES 2 JAW SELF-CENTERING CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

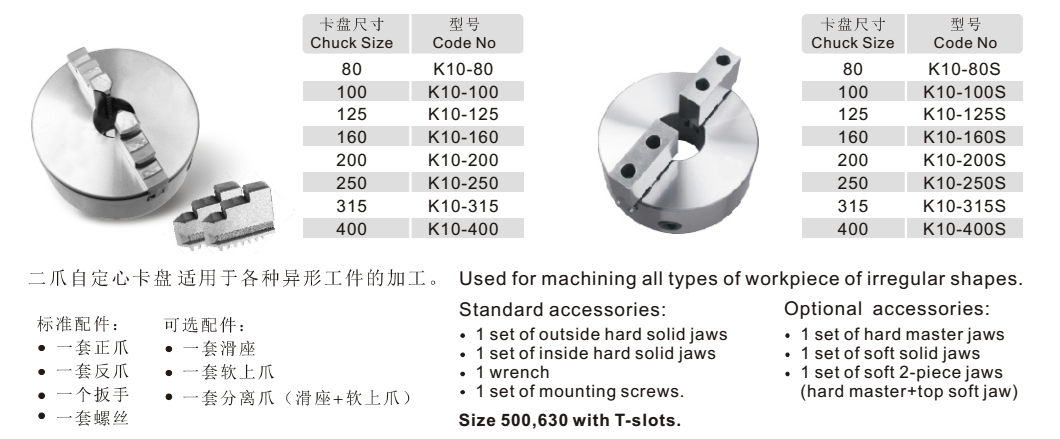

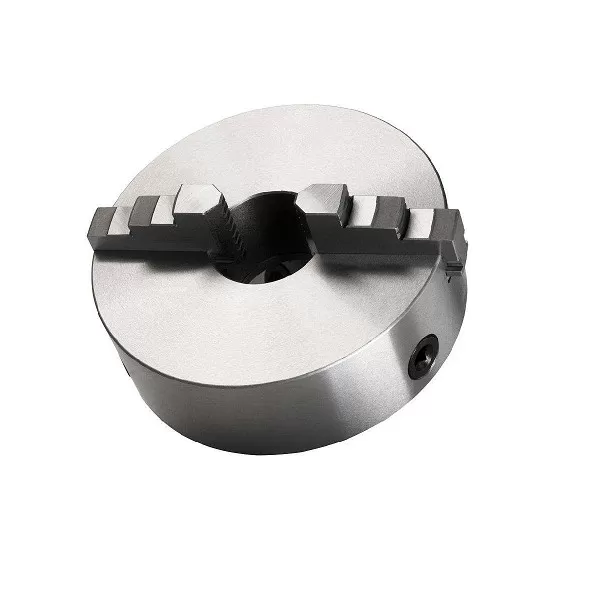

K10 SERIES 2 JAW SELF-CENTERING CHUCKS

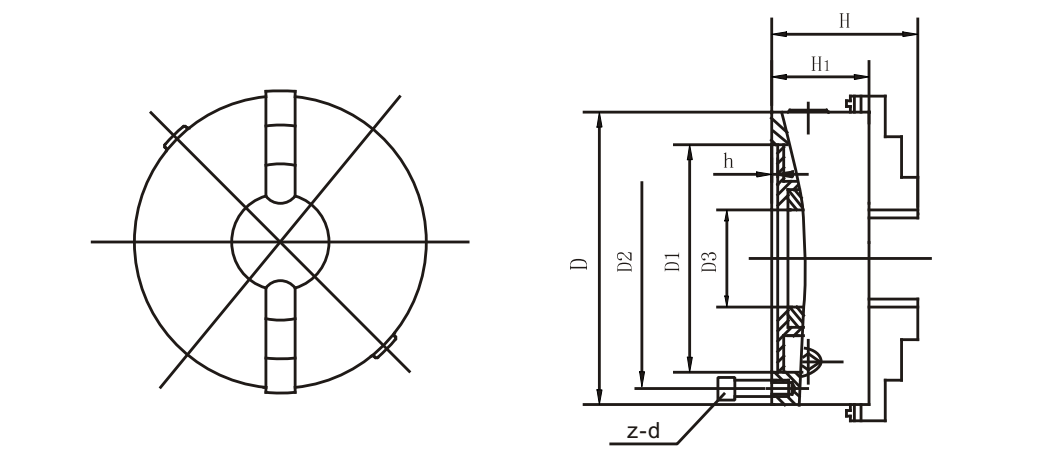

SPEC./MODEL | Chuck Size | D1 | D2 | 03 | H1 | h | Z | D | H |
|---|---|---|---|---|---|---|---|---|---|
| K10-80 | 80 | 55 | 66 | 16 | 50 | 4 | 3 | M6 | 66.5 |
| K10-100 | 100 | 72 | 84 | 22 | 55 | 3 | 3 | M8 | 74.5 |
| K10-125 | 125 | 95 | 108 | 30 | 58 | 4 | 3 | M8 | 84.5 |
| K10-160 | 160 | 130 | 142 | 45 | 65 | 5 | 3 | M8 | 94 |
| K10-200 | 200 | 165 | 180 | 65 | 75 | 6 | 3 | M10 | 109 |
| K10-250 | 250 | 206 | 226 | 80 | 80 | 6 | 3 | M12 | 120 |
| K10-315 | 315 | 260 | 285 | 100 | 90 | 6 | 3 | M16 | 147.5 |
| K10-400 | 400 | 340 | 368 | 130 | 112.5 | 6 | 3 | M16 | 173.5 |
DSPEC./MODEL | Max.Gripping Dia Internal Jaws | Max.speed(r.p.m) | Max.GrippingForce(KN) | Gross.Weight(Kg) |
|---|---|---|---|---|
| K10-80 | 2-70 | 4000 | 8 | 1.7 |
| K10-100 | 2-90 | 3500 | 10 | 2.8 |
| K10-125 | 2.5-125 | 3000 | 15 | 4.7 |
| K10-160 | 3-160 | 2500 | 22 | 8 |
| K10-200 | 4-200 | 2000 | 28 | 15 |
| K10-250 | 6-250 | 1600 | 32 | 25 |
| K10-315 | 10-315 | 1200 | 36 | 45 |
| K10-400 | 15-400 | 1000 | 40 | 69 |
