| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 6DAKT-08,6DAKT-10,6DAKT-12,6DAKT-15, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | DIN6350 6DAKT 6 JAW ADJUSTMENT STEEL SCROLL CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

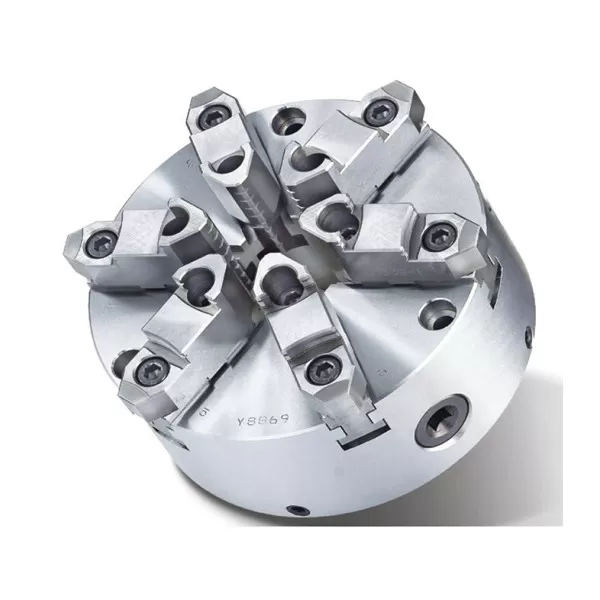

DIN6350 6DAKT 6 JAW ADJUSTMENT STEEL SCROLL CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm |
|---|---|---|---|
| 6DAKT-08 | 2900 | Ø17-Ø193 | Ø67-Ø178 |
| 6DAKT-10 | 2200 | Ø19-Ø248 | Ø84-Ø232 |
| 6DAKT-12 | 1800 | Ø23-Ø323 | Ø93-Ø296 |
| 6DAKT-15 | 1300 | Ø30-Ø419 | Ø124-Ø396 |

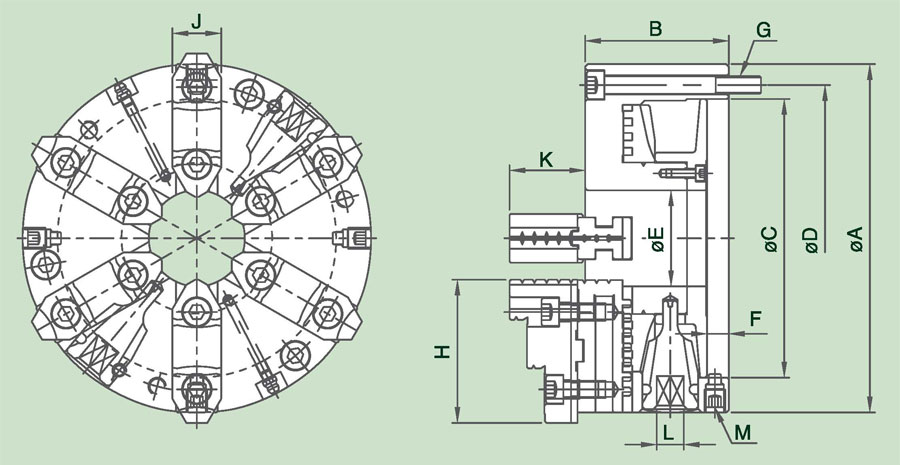

| MODEL/SPEC | A | B | C | D | E | G | F | H | J | K | M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6DAKT-08 | 200 | 82.5 | 160 | 176 | 55 | 3-M10×1.5P | 12 | 82 | 28 | 43 | 11 |
| 6DAKT-10 | 250 | 91 | 200 | 224 | 76 | 3-M12×1.75P | 13 | 102 | 35 | 54.5 | 12 |
| 6DAKT-12 | 315 | 103 | 260 | 286 | 103 | 3-M16×2P | 14 | 118 | 40 | 56.5 | 14 |
| 6DAKT-15 | 400 | 122 | 330 | 362 | 136 | 3-M16×2P | 15 | 150 | 50 | 74.5 | 17 |
Subject to technology changes without prior information
Non-standard requirements can be made
