| Product Name: | DIN6350 4DAKT 4 JAW ADJUSTMENT STEEL SCROLL CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

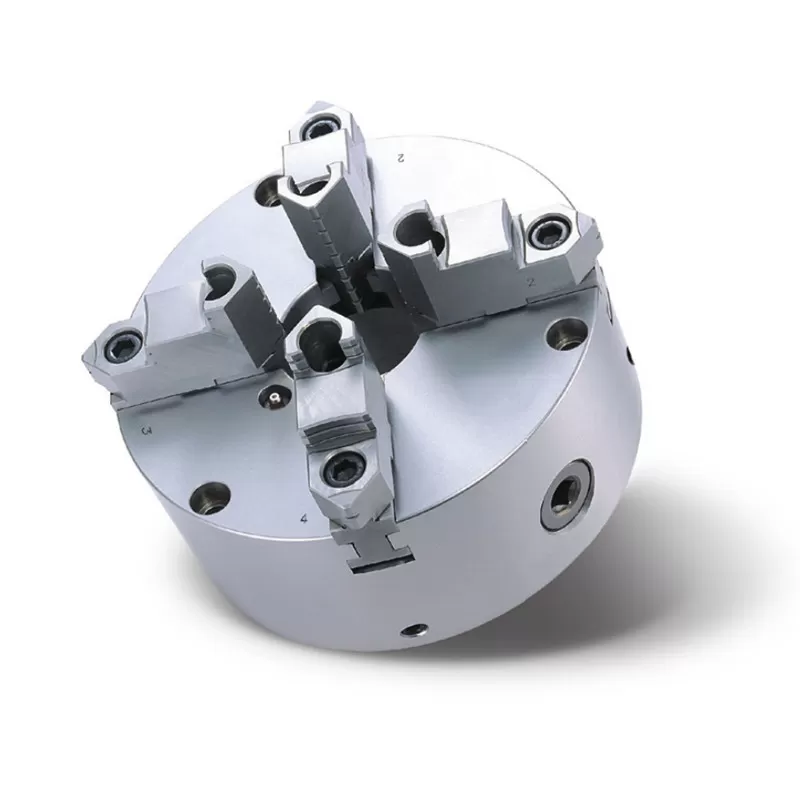

DIN6350 4DAKT 4 JAW ADJUSTMENT STEEL SCROLL CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm |
|---|---|---|---|
| 4DAKT-08 | 3500 | Ø8-Ø205 | Ø59-Ø190 |
| 4DAKT-10 | 2600 | Ø12-Ø265 | Ø78-Ø249 |
| 4DAKT-12 | 2200 | Ø15-Ø323 | Ø86-Ø296 |
| 4DAKT-15 | 1600 | Ø30-Ø419 | Ø124-Ø396 |

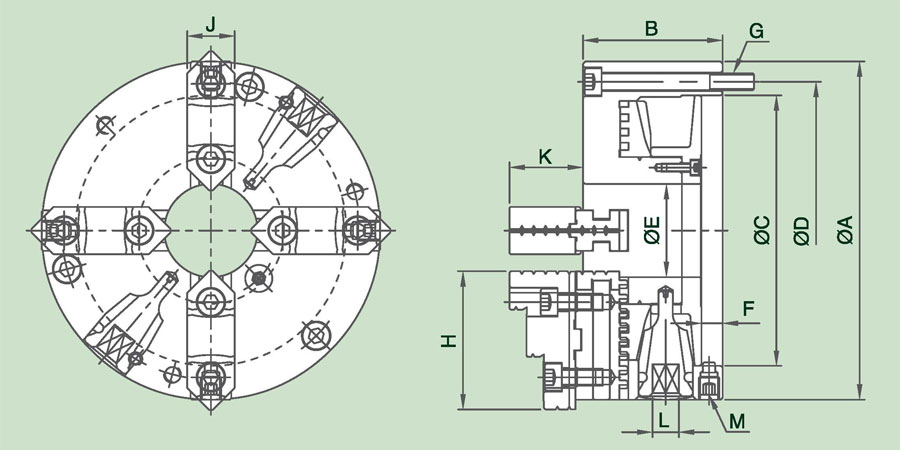

| MODEL/SPEC | A | B | C | D | E | G | F | H | J | K | M | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4DAKT-08 | 200 | 82.5 | 160 | 176 | 55 | 3-M10×1.5P | 12 | 82 | 28 | 43 | 4-M12×1.75P | 11 |
| 4DAKT-10 | 250 | 91 | 200 | 224 | 76 | 3-M12×1.75P | 13 | 102 | 35 | 54.5 | 4-M12×1.75P | 12 |
| 4DAKT-12 | 315 | 103 | 260 | 286 | 103 | 3-M16×2P | 14 | 118 | 40 | 56.5 | 4-M12×1.75P | 14 |
| 4DAKT-15 | 400 | 400 | 330 | 362 | 136 | 3-M16×2P | 15 | 150 | 50 | 74.5 | 4-M12×1.75P | 17 |
Subject to technology changes without prior information
Non-standard requirements can be made
