| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 6DACT-08,6DACT-10,6DACT-12,6DACT-15, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | DIN6350 6DACT 6 JAW ADJUSTMENT STEEL SCROLL CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

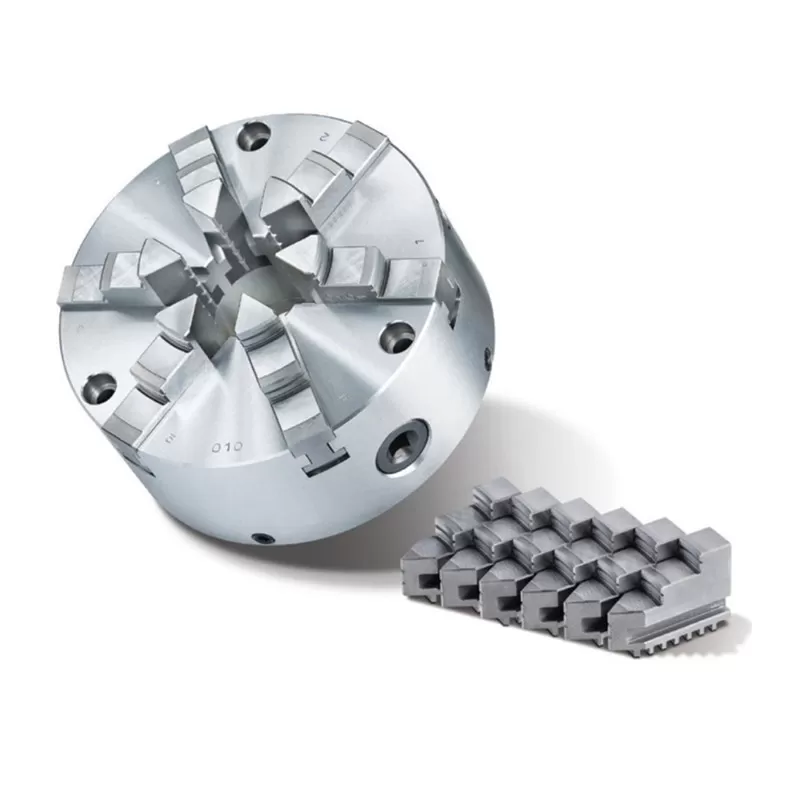

DIN6350 6DACT 6 JAW ADJUSTMENT STEEL SCROLL CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm |
|---|---|---|---|
| 6DACT-08 | 2900 | Ø4-Ø183 | Ø51-Ø170 |
| 6DACT-10 | 2200 | Ø6-Ø249 | Ø70-Ø233 |
| 6DACT-12 | 1800 | Ø10-Ø305 | Ø81-Ø288 |
| 6DACT-15 | 1300 | Ø14-Ø406 | Ø105-Ø387 |

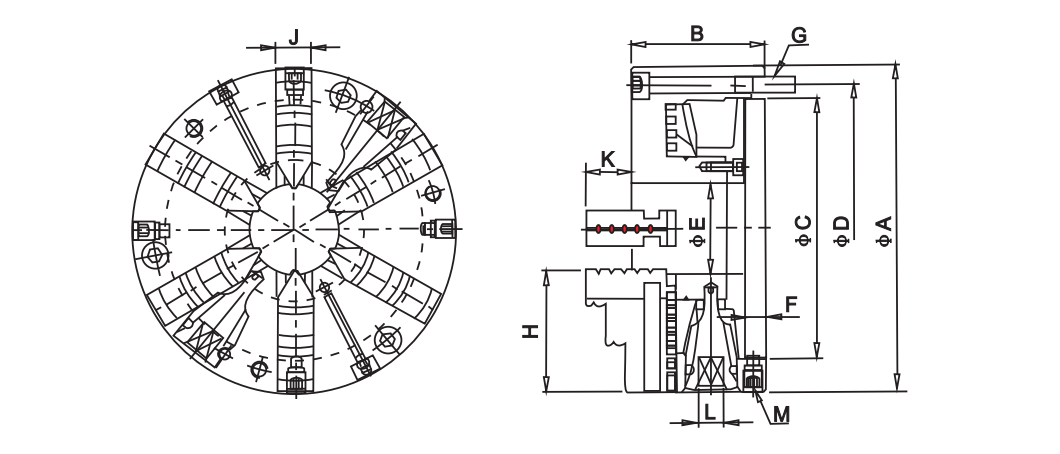

| MODEL/SPEC | A | B | C | D | E | G | F | H | J | K | M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6DACT-08 | 200 | 82.5 | 160 | 176 | 55 | 3-M10×1.5P | 12 | 75 | 22 | 28 | 4-M12×1.75P |
| 6DACT-10 | 250 | 91 | 200 | 224 | 76 | 3-M12×1.75P | 13 | 98 | 28 | 28 | 4-M12×1.75P |
| 6DACT-12 | 315 | 103 | 260 | 286 | 103 | 3-M16×2P | 14 | 110 | 30 | 30 | 4-M12×1.75P |
| 6DACT-15 | 400 | 122 | 330 | 362 | 136 | 3-M16×2P | 15 | 146 | 40 | 40 | 4-M12×1.75P |
Subject to technology changes without prior information
Non-standard requirements can be made
