| Product Name: | 4DACT 4-JAW ADJUSTMENT STEEL BODY SCROLL CHUCKS DIN6350 | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

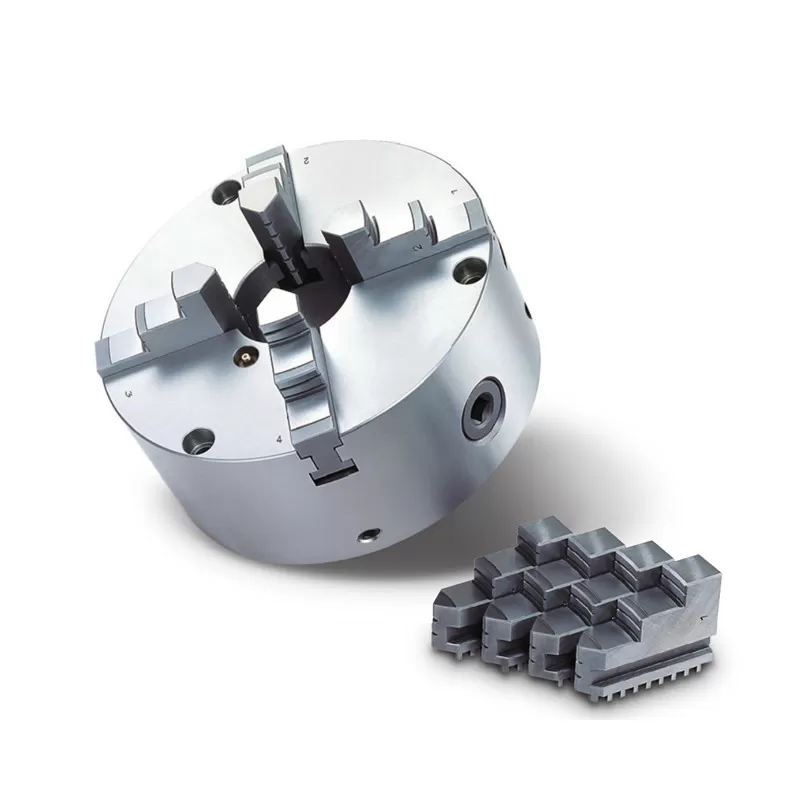

4DACT 4-JAW ADJUSTMENT STEEL BODY SCROLL CHUCKS DIN6350
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm |
|---|---|---|---|
| 4DACT-08 | 3500 | Ø4-Ø197 | Ø51-Ø184 |
| 4DACT-10 | 2600 | Ø6-Ø267 | Ø70-Ø252 |
| 4DACT-12 | 2200 | Ø10-Ø325 | Ø81-Ø308 |
| 4DACT-15 | 1600 | Ø14-Ø428 | Ø106-Ø410 |

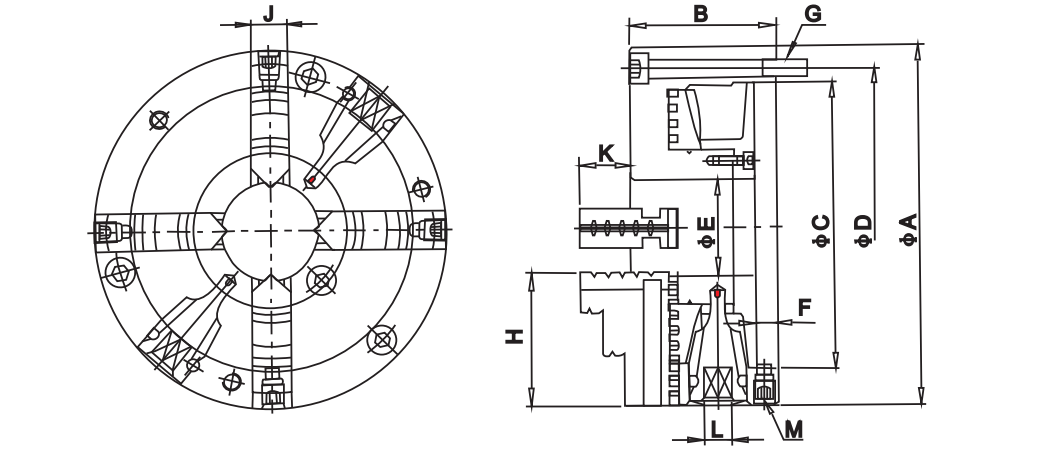

| MODEL/SPEC | A | B | C | D | E | G | F | H | J | K | M | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4DACT-08 | 200 | 82.5 | 160 | 176 | 55 | 3-M10×1.5P | 12 | 75 | 22 | 28 | 4-M12×1.75P | 11 |
| 4DACT-10 | 250 | 91 | 200 | 224 | 76 | 3-M12×1.75P | 13 | 98 | 28 | 38.5 | 4-M12×1.75P | 12 |
| 4DACT-12 | 315 | 103 | 260 | 286 | 103 | 3-M16×2P | 14 | 110 | 30 | 44.5 | 4-M12×1.75P | 14 |
| 4DACT-15 | 400 | 122 | 330 | 362 | 136 | 3-M16×2P | 15 | 146 | 40 | 56 | 4-M12×1.75P | 17 |
Subject to technology changes without prior information
Non-standard requirements can be made
