| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TKT-06,TKT-07,TKT-09, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

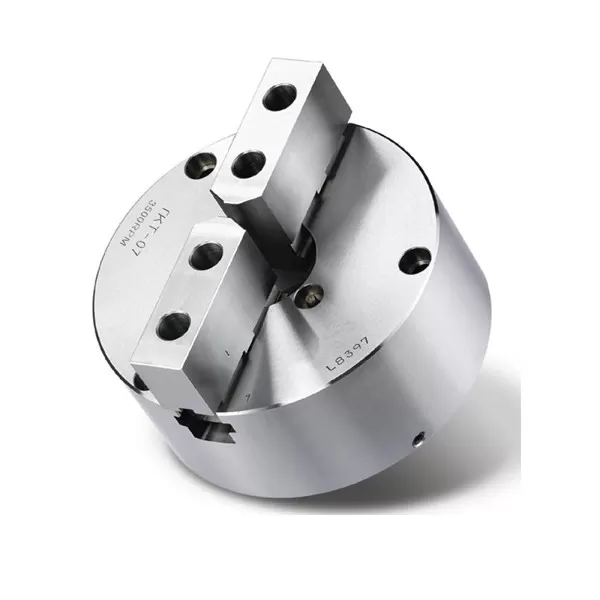

TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| TKT-06 | 4000 | Ø9-Ø160 | Ø60-Ø150 | 10.4 |
| TKT-07 | 3500 | Ø10-Ø180 | Ø70-Ø170 | 14.6 |
| TKT-09 | 2900 | Ø12-Ø220 | Ø80-Ø210 | 22.4 |

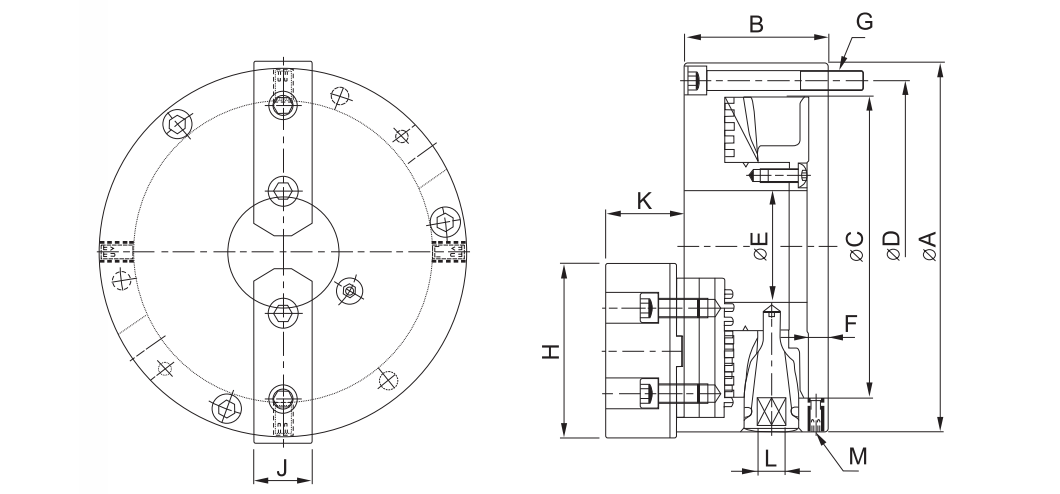

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TKT-06 | 167 | 75.5 | 130 | 147 | 45 | 12 | 3-M10×1.5P | 73 | 26 | 40.5 | 10 | 4-M10×1.5P |
| TKT-07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10×1.5P | 95 | 31 | 49.5 | 11 | 4-M10×1.5P |
| TKT-09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12×1.75P | 110 | 37 | 50 | 12 | 4-M10×1.5P |
Subject to technology changes without prior information
Non-standard requirements can be made
